Luggage Compartment/Rear of Vehicle Component Views
WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | G401 Coupe/Sedan |
| 2 | G402 Coupe |
| 3 | Digital Radio Receiver (U2K) |
| 4 | Vehicle Communication Interface Module (VCIM) (UE1) |
| 5 | G402 (Sedan) |
| 6 | Rear Window Shelf |
| 7 | Floor Pan |
| 8 | Rear Compartment Courtesy Light |
| 9 | Speaker - Left Rear |

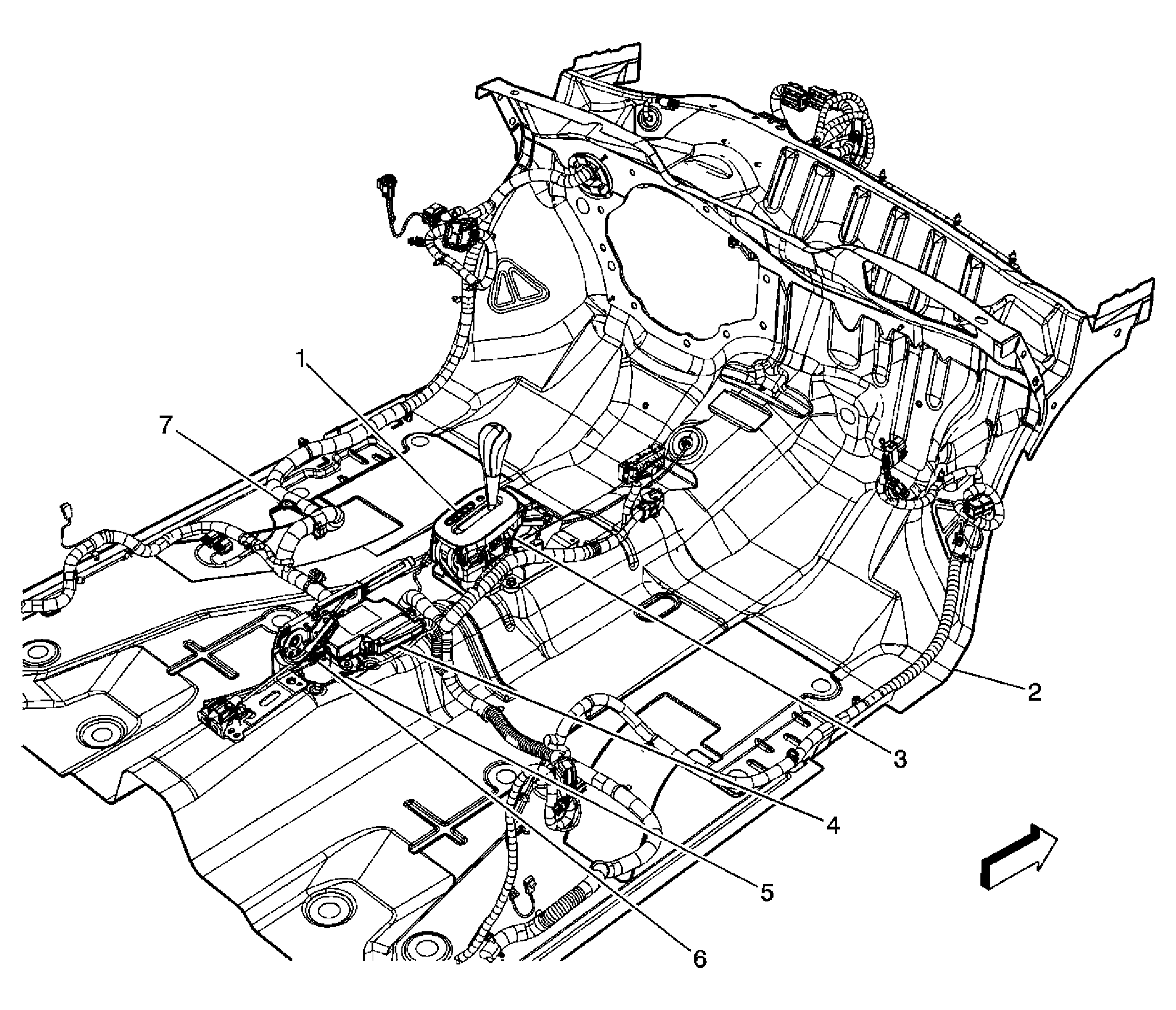

| Callout | Component Name |
|---|---|
| 1 | PRNDL Lamp |
| 2 | Floor Pan |
| 3 | A/T Shift Lock Control Solenoid (MN5) |
| 4 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 5 | G306 |
| 6 | Park Brake Switch |
| 7 | G301 |

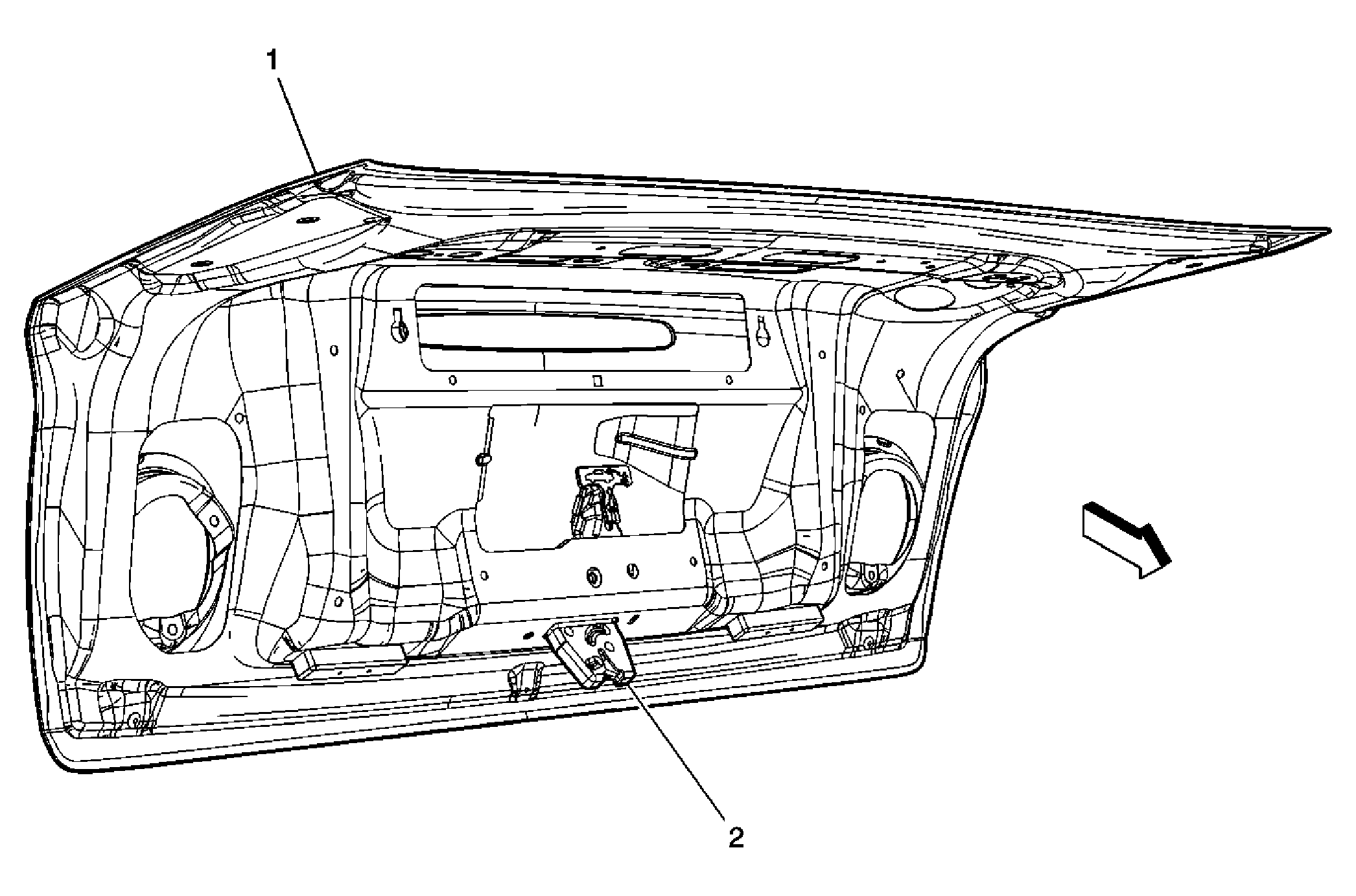

| Callout | Component Name |
|---|---|
| 1 | Deck Lid |
| 2 | Rear Compartment Lid Release Actuator |

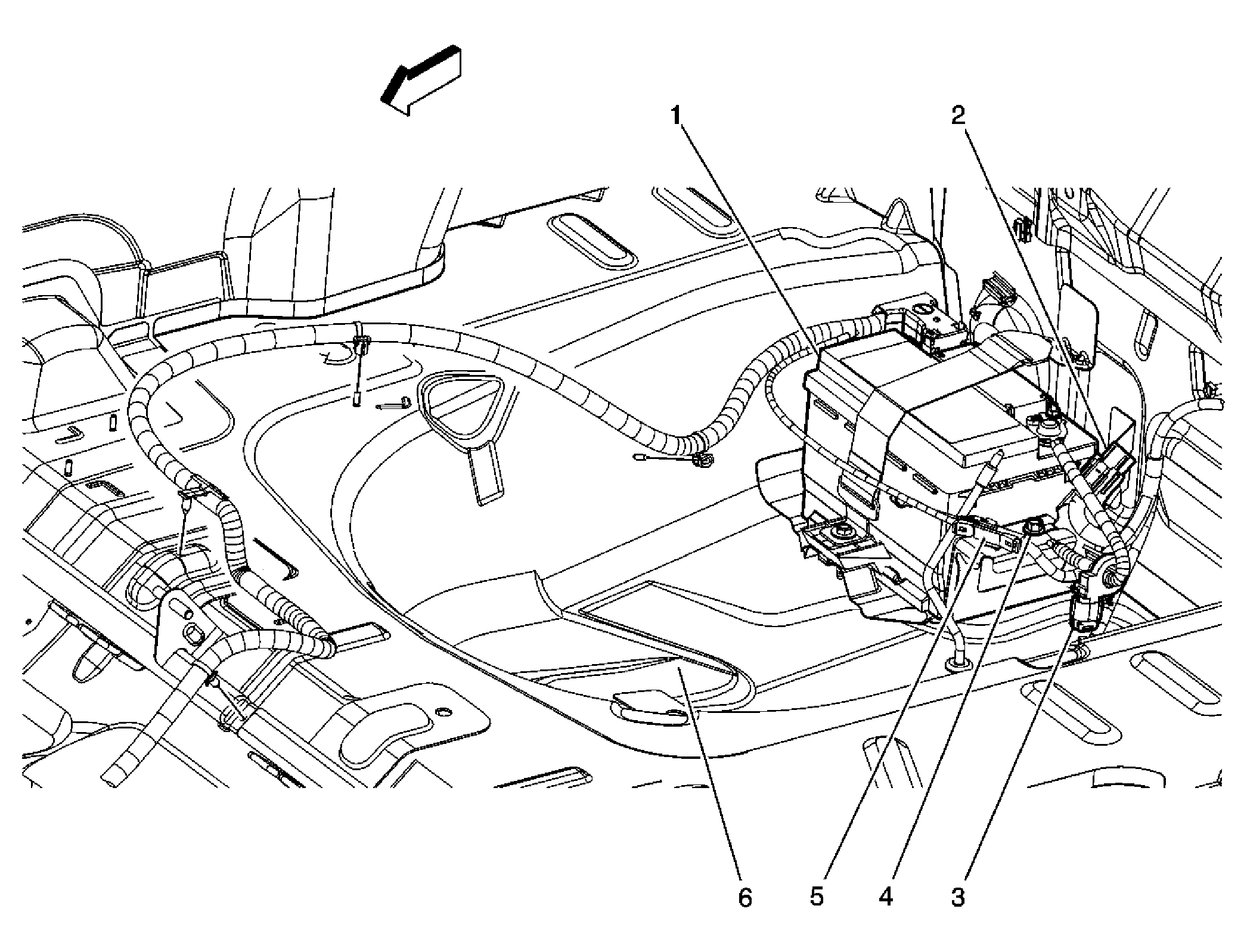

| Callout | Component Name |
|---|---|
| 1 | Battery |
| 2 | Fuse Holder 50A |
| 3 | Battery Current Sensor |
| 4 | G403 |
| 5 | X400 |
| 6 | Spare Tire Well |

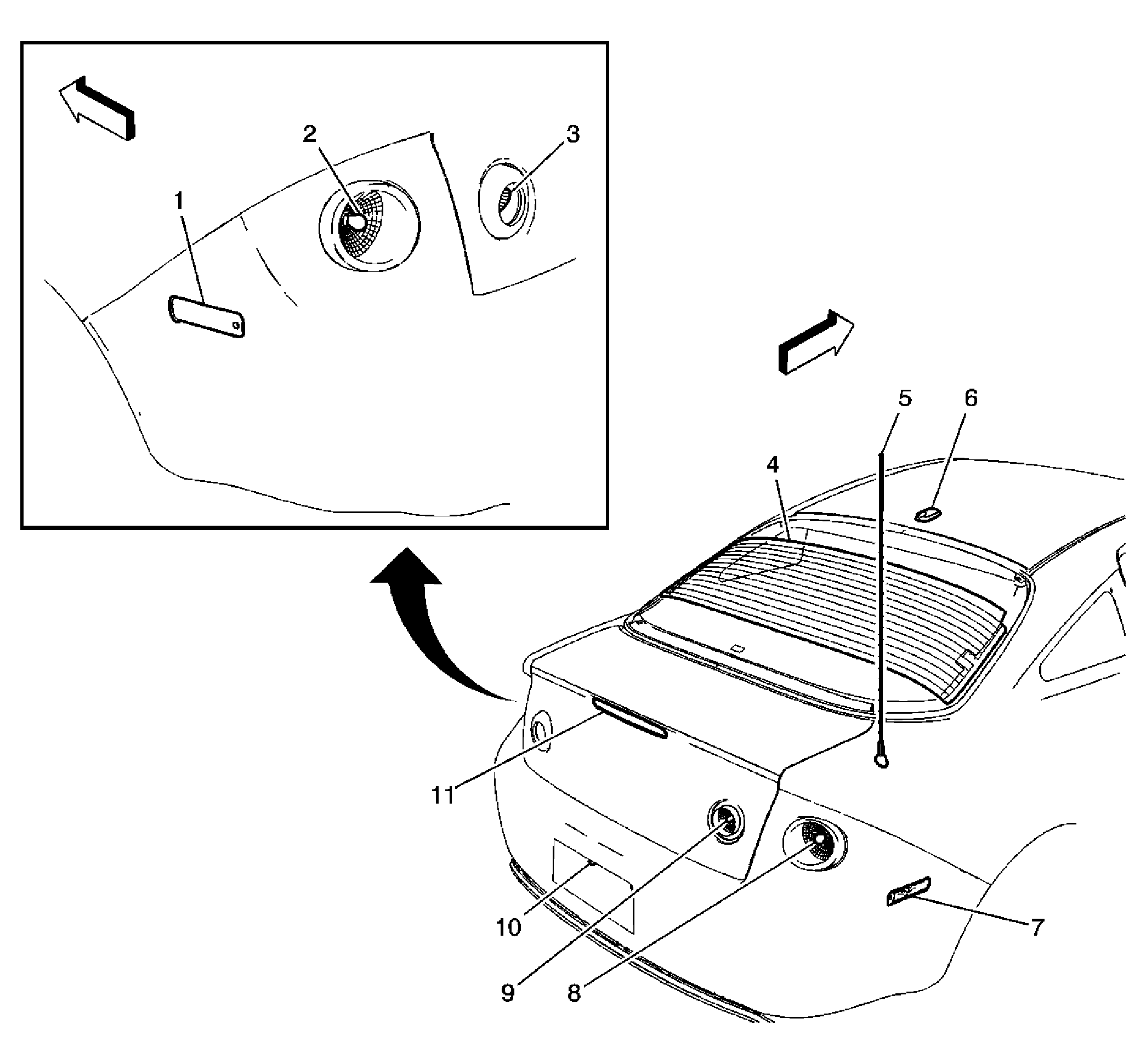

| Callout | Component Name |
|---|---|
| 1 | Marker Lamp - Left Rear (Coupe) |
| 2 | Tail/Stop and Turn Signal Lamp - Left (Coupe) |
| 3 | Backup Lamp - Left (Coupe) |
| 4 | Rear Window Defogger Grid |
| 5 | Fixed Antenna |
| 6 | Cellular/Digital Antenna (UE1/U2K) |
| 7 | Marker Lamp - Right Rear (Coupe) |
| 8 | Tail/Stop and Turn Signal Lamp - Right (Coupe) |
| 9 | Backup Lamp - Right (Cobalt Coupe) |
| 10 | License Lamp |
| 11 | Center High Mounted Stop Lamp (CHMSL) |

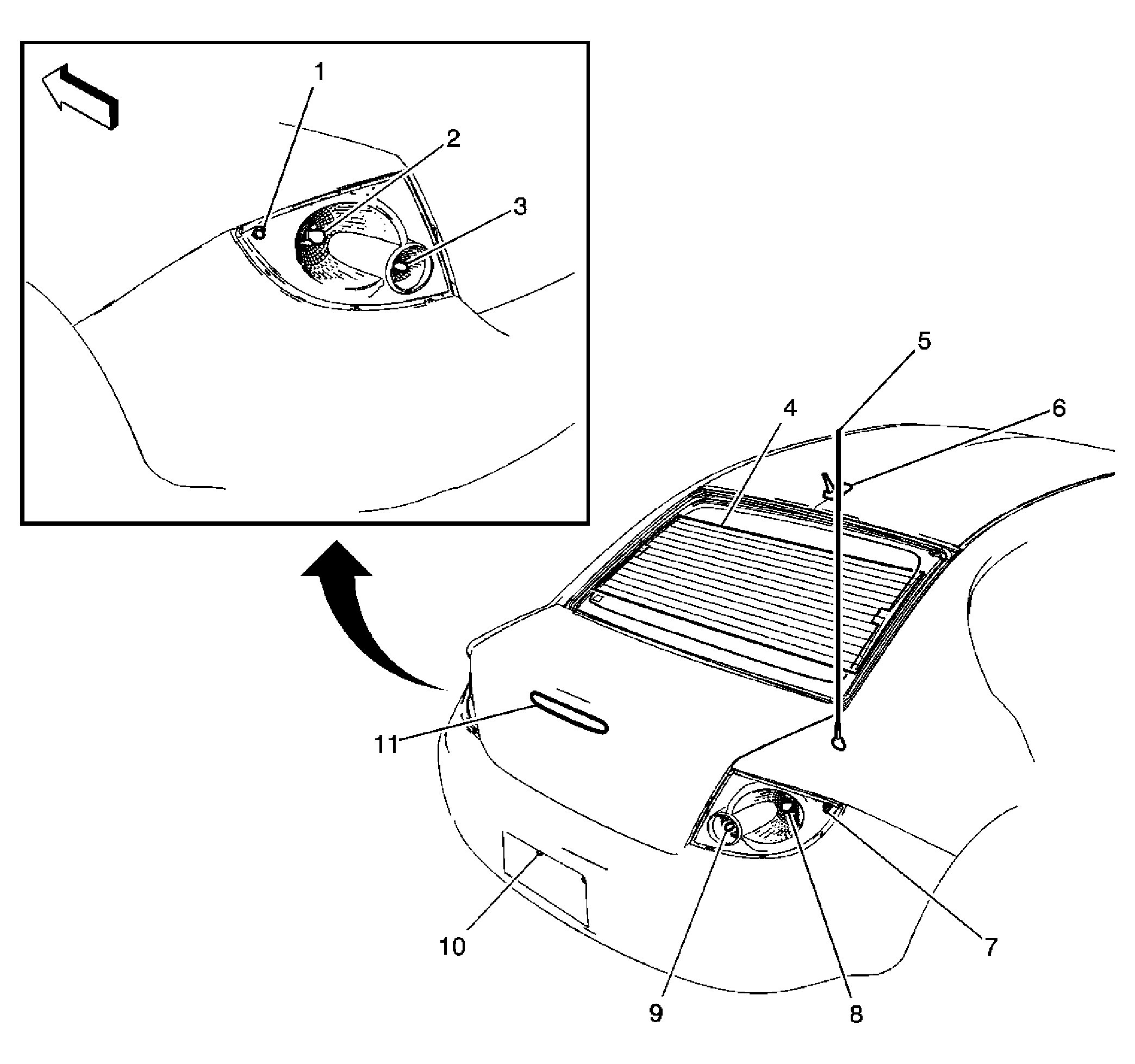

| Callout | Component Name |
|---|---|
| 1 | Marker Lamp - Left Rear (Sedan) |
| 2 | Tail/Stop and Turn Signal Lamp - Left (Sedan) |
| 3 | Backup Lamp - Left (Sedan) |
| 4 | Rear Window Defogger Grid |
| 5 | Fixed Antenna |
| 6 | Cellular/Digital Antenna (UE1/U2K) |
| 7 | Marker Lamp - Right Rear (Sedan) |
| 8 | Tail/Stop and Turn Signal Lamp - Right (Sedan) |
| 9 | Backup Lamp - Right ( Sedan) |
| 10 | License Lamp |
| 11 | Center High Mounted Stop Lamp (CHMSL) |
