Fuse Block - Underhood X4

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

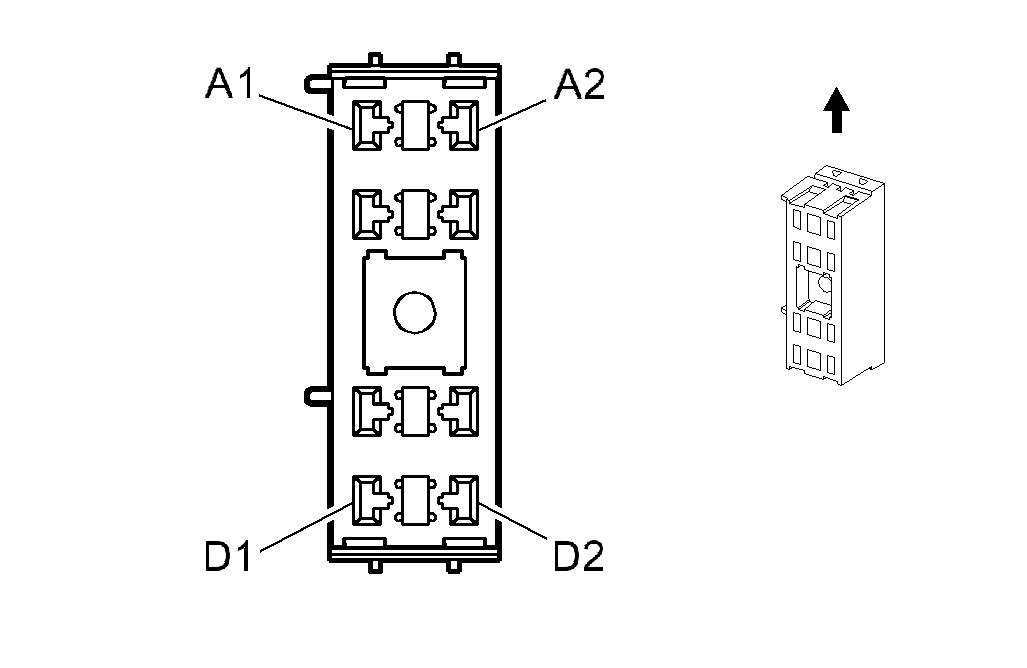

Fig 1: Fuse Block - Underhood C4 Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A1-A2	-	-	Not Used
B1	3 RD/BK	542	Battery Positive Voltage
B2	-	-	Not Used
C1	3 RD/WH	242	Battery Positive Voltage
C2	3 RD/BK	442	Battery Positive Voltage
D1-D2	-	-	Not Used

Connector Part Information

OEM: 15447740
Service: 88987883
Description: 8-Way F Metri-Pack 800 Series (L-GY)

Terminal Part Information

Pins: B1, C1, C2
Terminal/Tray: 12110127/19
Core/Insulation Crimp: Pins B1 - See Terminal Repair Kit
Core/Insulation Crimp: Pins C1, C2: F/G
Release Tool/Test Probe: 12150860/J-35616-44 (YE)
