Fuse Block - Underhood X2

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

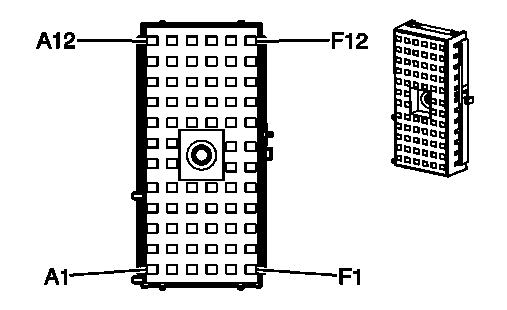

Fig 1: Fuse Block - Underhood X2 Connector End View
GM1376704Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood X2

Pin Wire Circuit Function
A1 0.35 L-GN 1715 Windshield Wiper Switch High Signal
A2 0.35 TN/WH 1969 Headlamp High Beam Relay Control
A3-A5 - - Not Used
A6 1 BK 150 Ground
A7 0.35 D-GN 113 Windshield Wiper Switch Signal 2
A8-A12 - - Not Used
B1 1 PU 92 Windshield Wiper Motor High Speed
B2 1 D-GN 95 Windshield Washer Switch Signal
B3-B5 - - Not Used
B6 0.35 TN 28 Horn Relay Control
B7 0.35 WH 1080 Park Lamp Relay Control
B8-B9 - - Not Used
B10 0.35 BN 253 Trunk Release Relay Control
B11-B12 - - Not Used
C1 0.35 PU/WH 6386 CRNK Relay Control
C2 0.35 PK/WH 1970 Headlamp Low Beam Relay Control
C3 0.35 YE 317 Fog Lamp Relay Control (T37)
C4-C5 - - Not Used
C6-C7 - - Not Available
C8-C10 - - Not Used
C11 1 RD/WH 340 Battery Positive Voltage (KA1)
1 RD/WH 340 Battery Positive Voltage (KA1)
C12 - - Not Used
D1-D3 - - Not Used
D4 1 GY 120 Fuel Pump Supply Voltage
D5 - - Not Used
D6-D7 - - Not Available
D8 0.8 TN/WH 56 Rear Compartment Lid Release Switch
D9-D12 - - Not Used
E1 3 BK 293 Rear Defog Element Supply Voltage
E2-E4 - - Not Used
E5 0.35 L-GN/BK 592 Daytime Running Lamp Relay Output - Coil
E6-E8 - - Not Used
E9 0.35 WH 5065 CHMSL Relay Coil Supply Voltage
E10-E12 - - Not Used
F1 0.35 WH 193 Rear Defog Relay Control
F2-F4 - - Not Used
F5 0.8 L-BU 20 Stop Lamp Supply Voltage
0.35 L-BU 20 Stop Lamp Supply Voltage
F6 0.35 D-GN/WH 465 Fuel Pump Relay Control
F7-F12 - - Not Used
Connector Part Information
  • OEM: 15405474
  • Service: 88956512
  • Description: 68-Way F Metri-Pack 280 Series FLXLK (L-GY)
Terminal Part Information
  • Pins: C5-C6, D5-D6
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: E1
  • Terminal/Tray: 15324340/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: A1, A2, A7, B6, B7, B10, C1-C3, D1, F1, F6, A6, B1, B2, C11, D4, D8
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: Pins A1, A2, A7, B6, B7, B10, C1, C1-C3, D1, F1, F6: E/C
  • Core/Insulation Crimp: Pins A6, B1, B2, C11, D4, D8 : C/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
