Headlamp High/Low Beam/DRL - Right

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

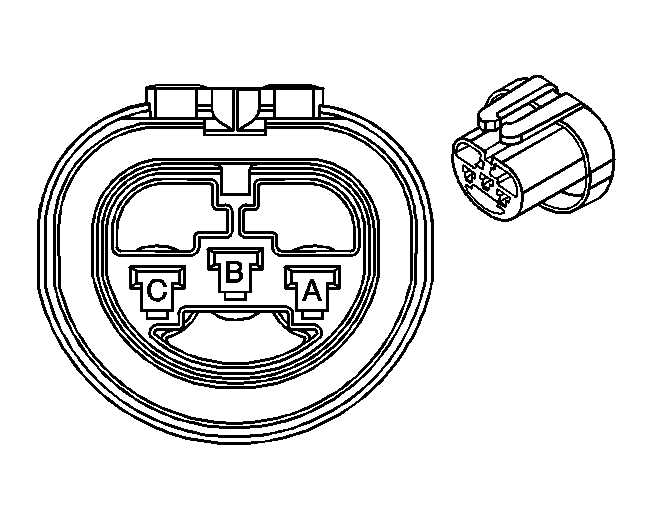

Fig 1: Headlamp High/Low Beam/DRL - Right Connector End View
GM808663Courtesy of GENERAL MOTORS CORP.
Headlamp High/Low Beam/DRL - Right

Pin Wire Circuit Function
A 0.8 OG 312 Right Headlamp Low Beam Supply Voltage
B 0.8 BK 250 Ground
C 0.8 PK 311 Right Headlamp High Beam Supply Voltage
Connector Part Information
  • OEM: 12048369
  • Service: 12117260
  • Description: 3-Way F Metri-Pack 280 Series Sealed (BU)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
