Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

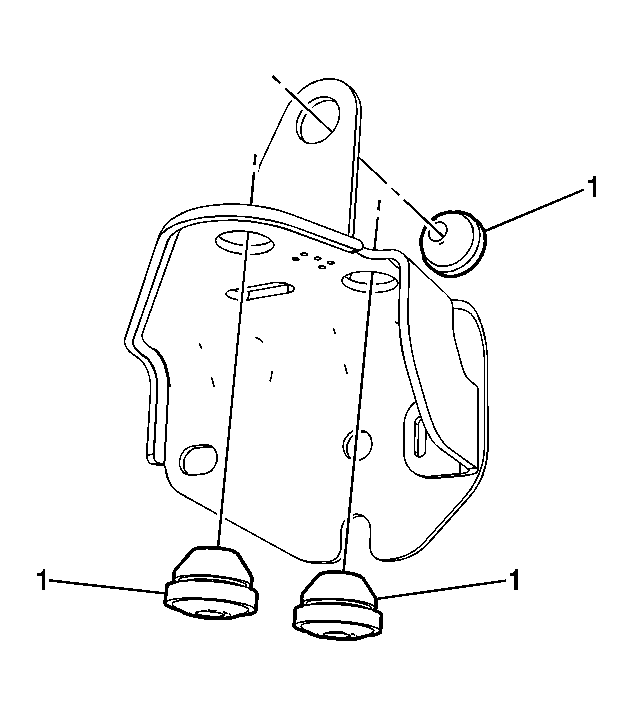

Fig 1: View Of BPMV Bracket Insulators

Courtesy of GENERAL MOTORS CORP.

Install the BPMV bracket insulators (1).

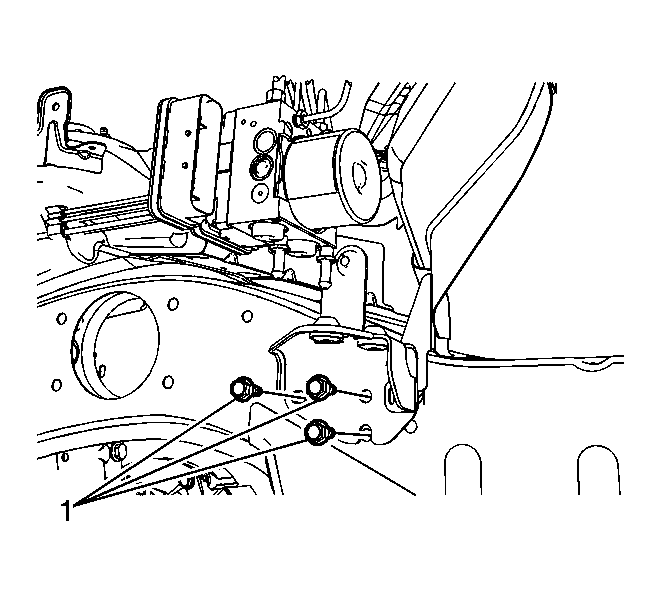

Fig 2: View Of Brake Pressure Modulator Valve Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Install the BPMV bracket.

CAUTION: Refer to Fastener Caution .

Install the 3 BPMV bracket bolts (1).
Tighten: Tighten the bolts to 25 N.m (18 lb ft).

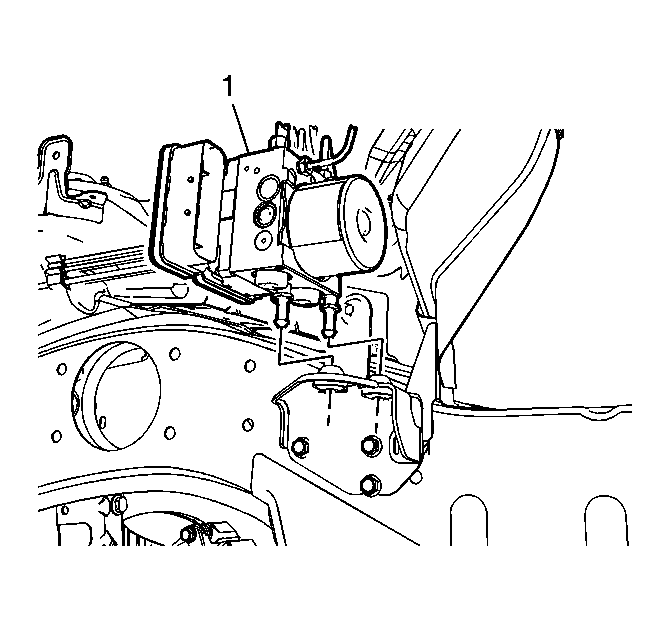

Fig 3: View Of Brake Pressure Modulator Valve (BPMV) & Bracket

Courtesy of GENERAL MOTORS CORP.

Install the BPMV (1) to the bracket by pressing the BPMV mounting pins into the bracket insulators until fully seated.

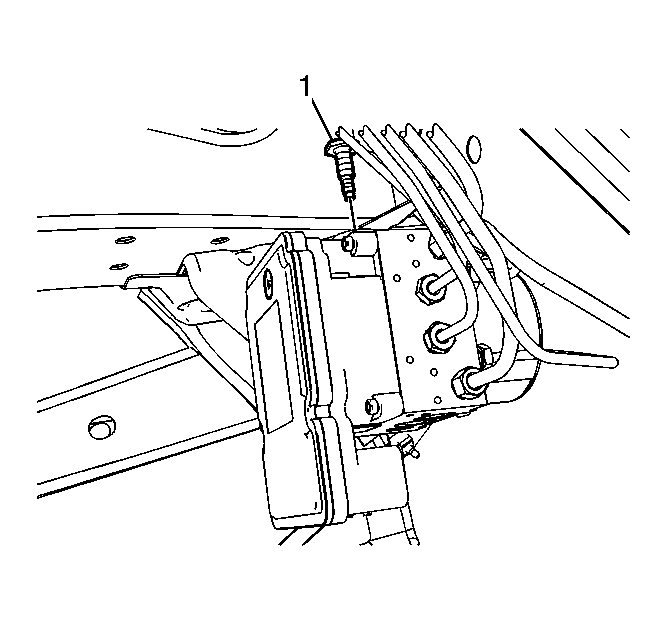

Fig 4: View Of Brake Pressure Modulator Valve (BPMV)

Courtesy of GENERAL MOTORS CORP.

Install the BPMV bolt (1).
Tighten: Tighten the bolt to 11 N.m (97 lb in).
Install the brake pipes to the retainer on the wheelhouse panel.
Install the cover to the ECM and TCM, if removed.
