Installation Procedure

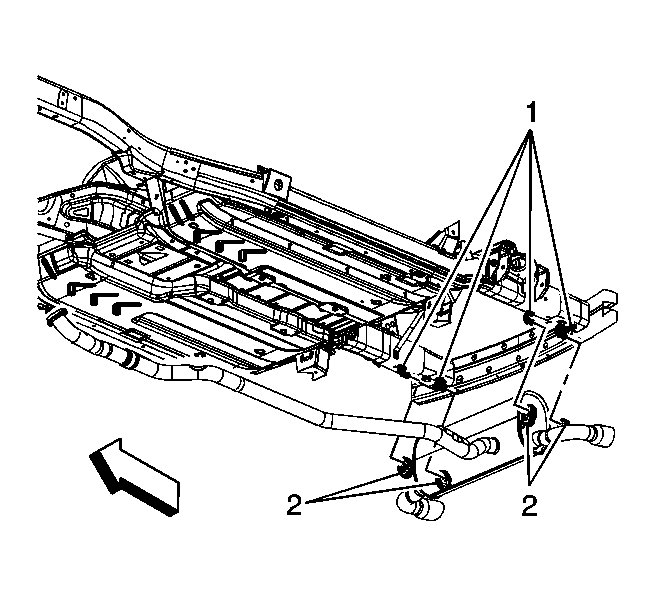

    Fig 1: Identifying Muffler Assembly
    GM1828148Courtesy of GENERAL MOTORS CORP.
  1. With the aid of an assistant, position the muffler assembly.
  2. Install the muffler insulators (2) onto the hangers (1).
    3. Fig 2: View Of Exhaust Pipe At Catalytic Converter
    GM1828146Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the catalytic converter to muffler nuts.

    Tighten:  Tighten the nuts to 17 N.m (13 lb ft).

    4. Fig 3: Identifying HO2S
    GM1828224Courtesy of GENERAL MOTORS CORP.
  4. Install the HO2S. Refer to Heated Oxygen Sensor 1 Replacement .
  5. Lower the vehicle.
    6. Fig 4: Identifying CPA Retainer & HO2S Electrical Connector
    GM1828158Courtesy of GENERAL MOTORS CORP.
  6. Connect the position 2 HO2S electrical connector (4) to the engine wiring harness electrical connector (2).
  7. Install the CPA retainer.
  8. Close the hood.
