Instrument Cluster Replacement

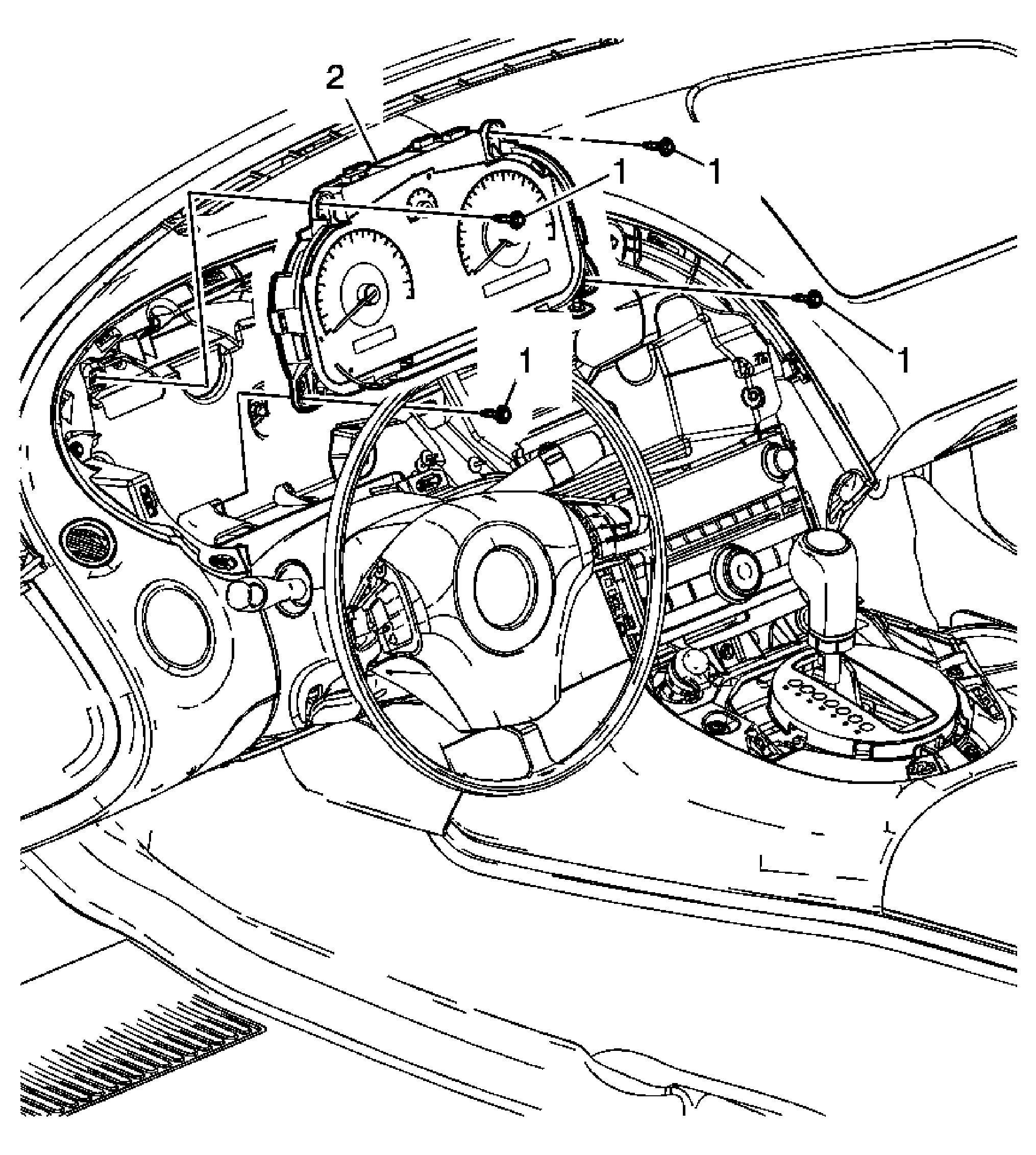

Fig 1: Instrument Panel Cluster (IPC)
GM1582790Courtesy of GENERAL MOTORS CORP.
Instrument Cluster Replacement

Callout Component Name
Preliminary Procedure:
Remove the instrument panel cluster Bezel. Refer to Instrument Cluster Trim Panel Replacement .
1 Instrument Panel Cluster Screw (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Instrument Panel Cluster Assembly
Tip:  Refer to Control Module References for programming and setup information.
