Door Window Regulator Handle Replacement

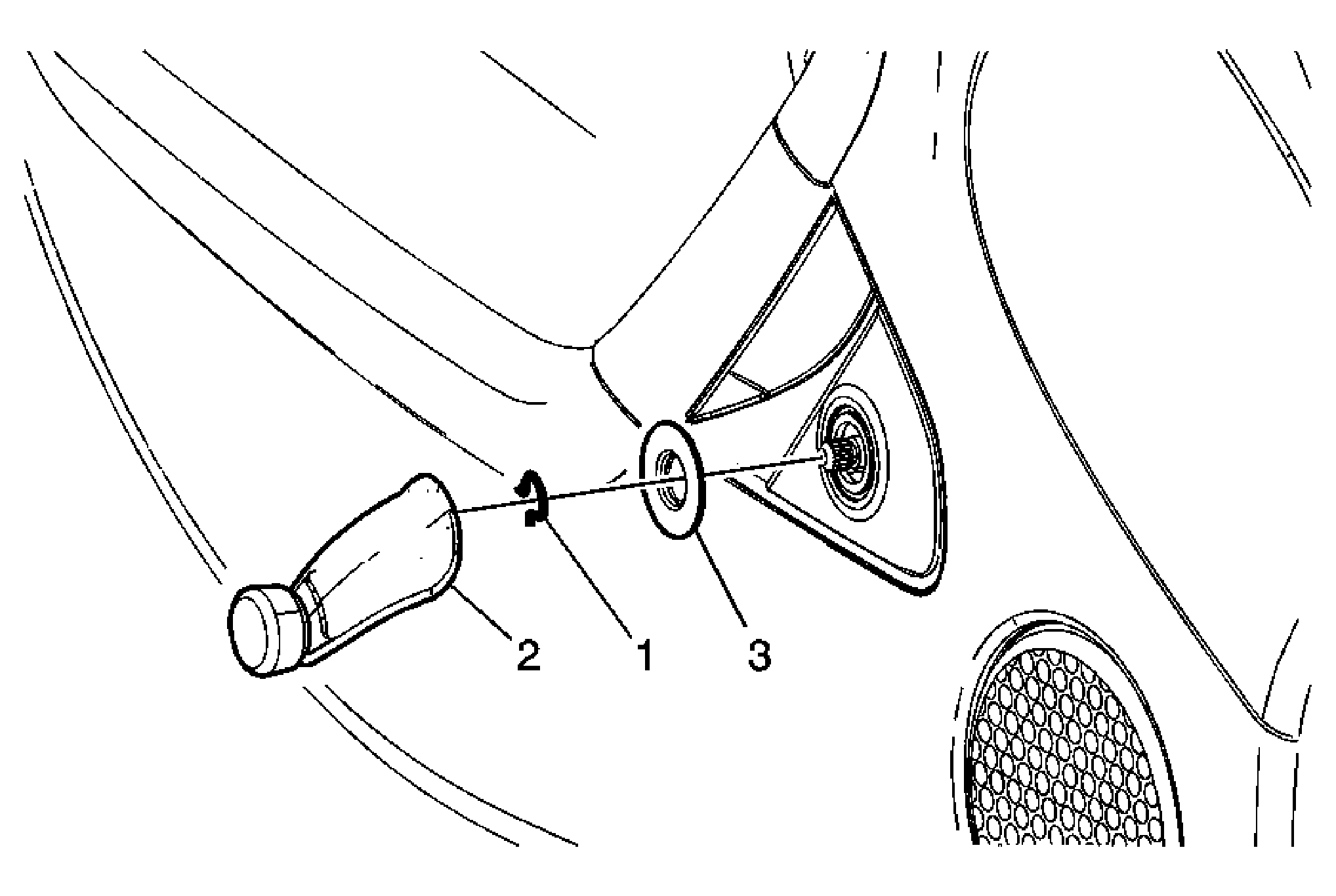

Fig 1: Door Window Regulator Handle

Courtesy of GENERAL MOTORS CORP.

Door Window Regulator Handle Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Front Side Door Window Regulator Clip Tip:  Use a J 9886-01  Door Handle Clip Remover, or equivalent to remove the window regulator handle clip.
2	Front Side Door Window Regulator Handle Assembly
3	Side Door Window Regulator Handle Bearing
