Engine Controls Schematics

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

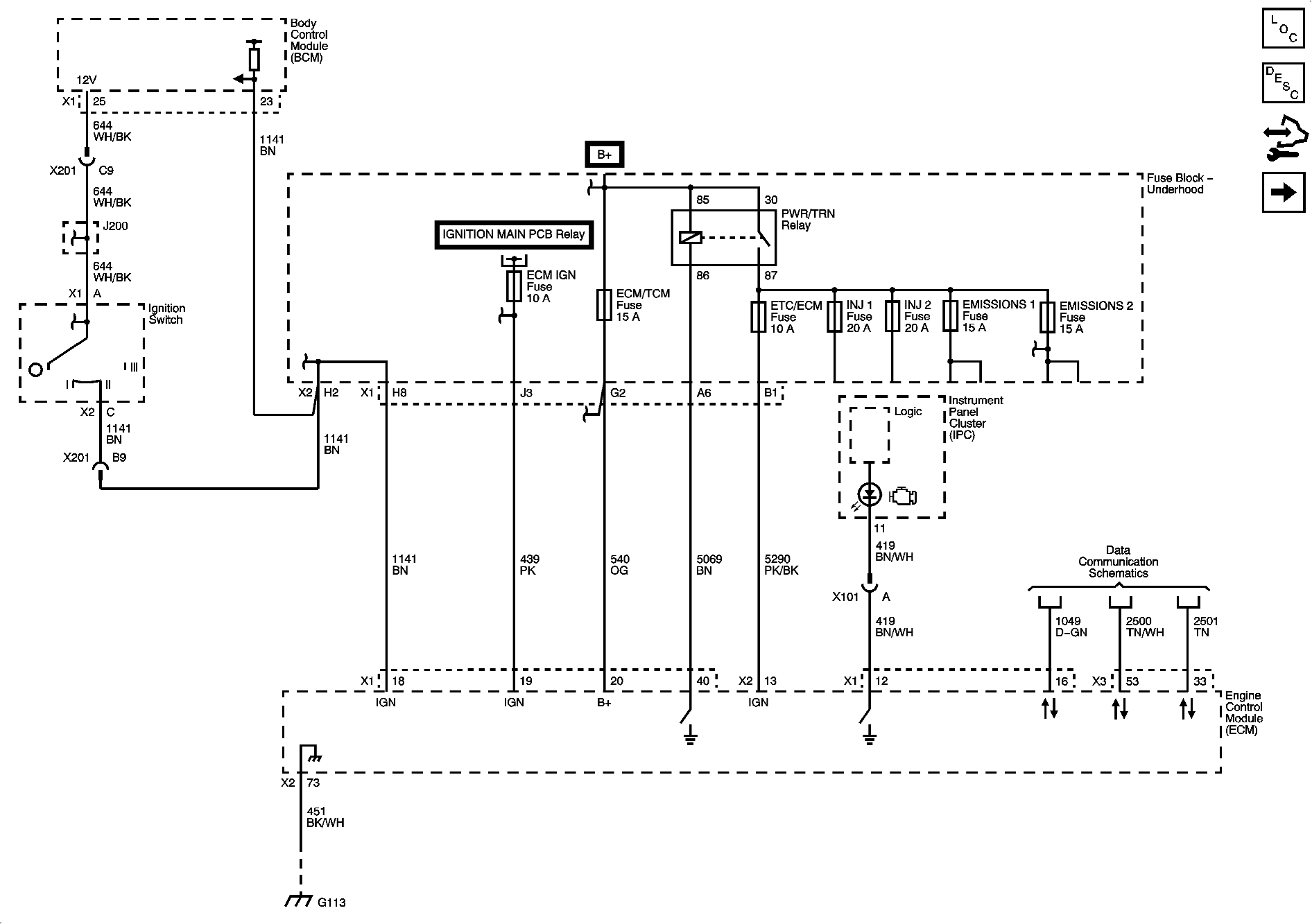

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: 5 Volt and Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

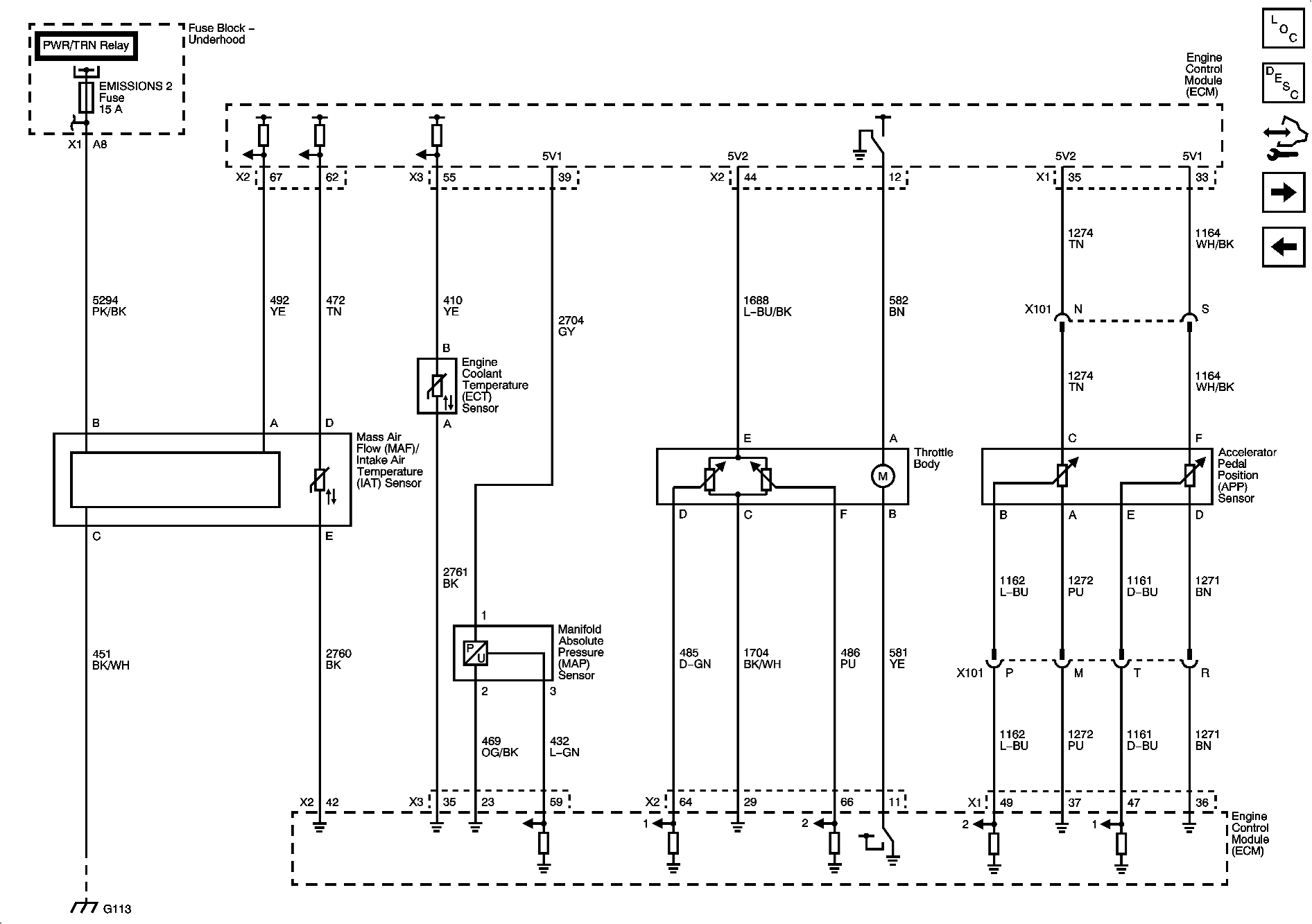

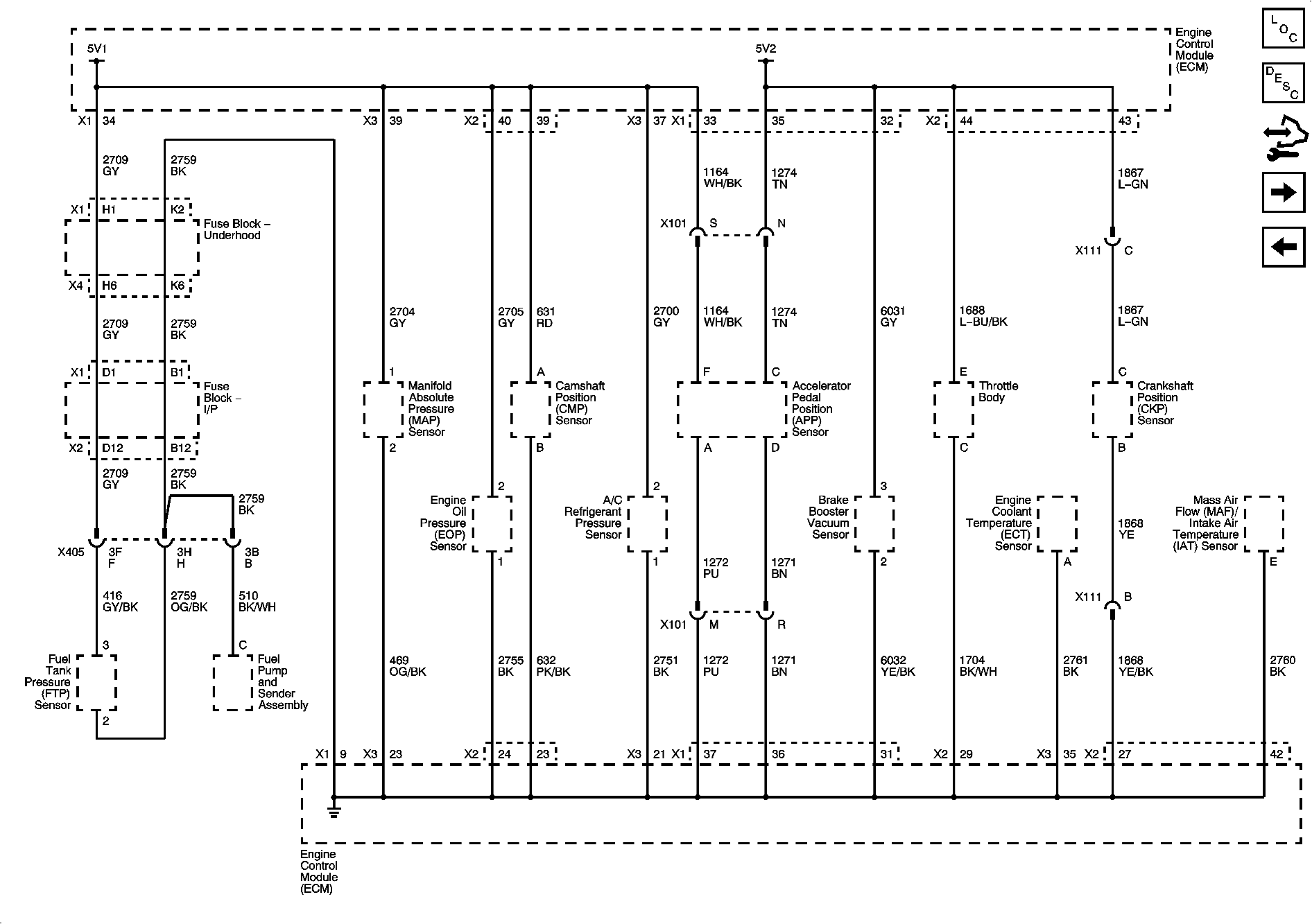

Fig 3: Engine Data Sensors Schematic - Pressure, Temperature & Throttle Control

Courtesy of GENERAL MOTORS CORP.

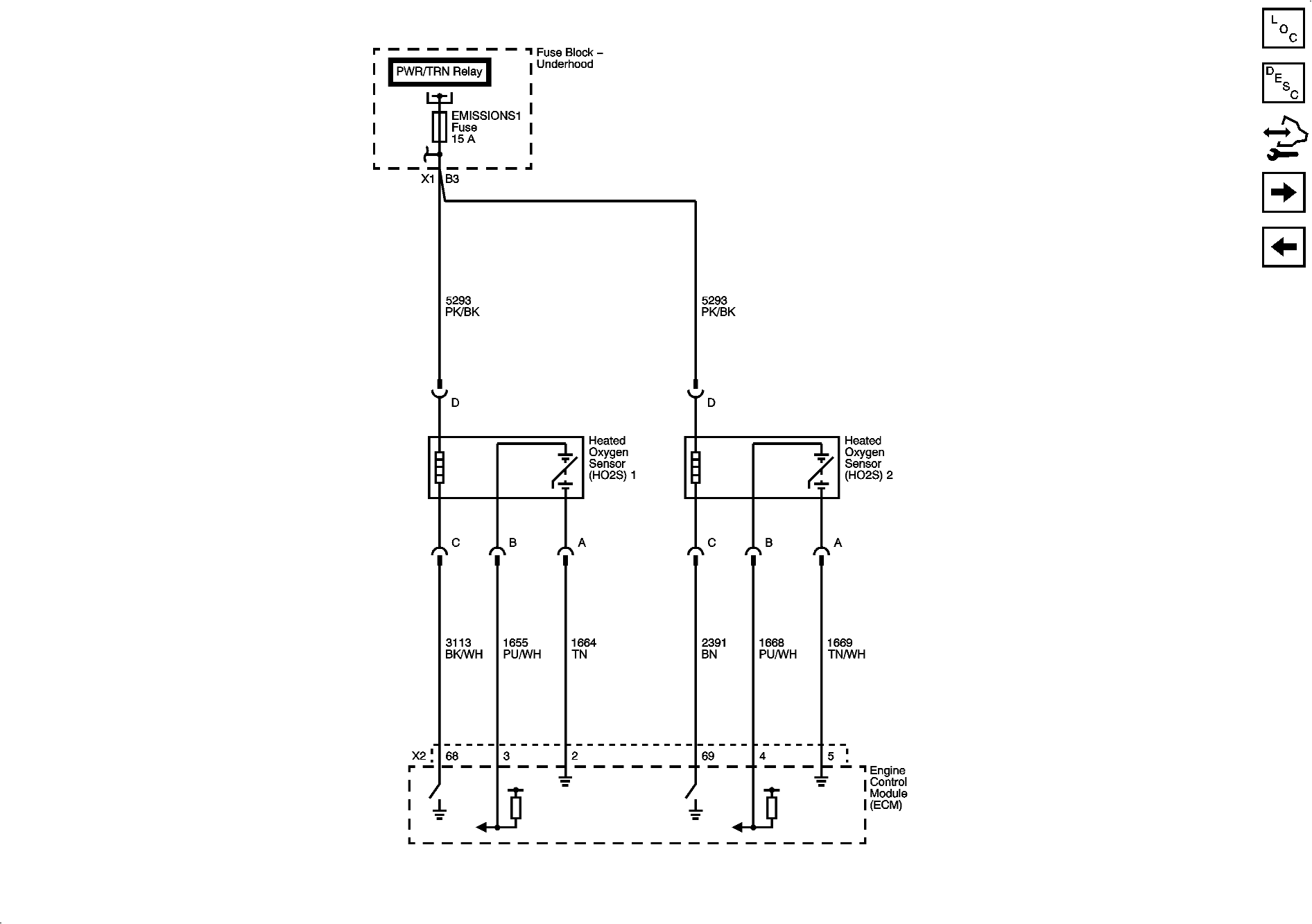

Fig 4: Engine Data Sensors Schematic - HO2S, Stop Lamp Switch Signal & Vehicle Speed Signal

Courtesy of GENERAL MOTORS CORP.

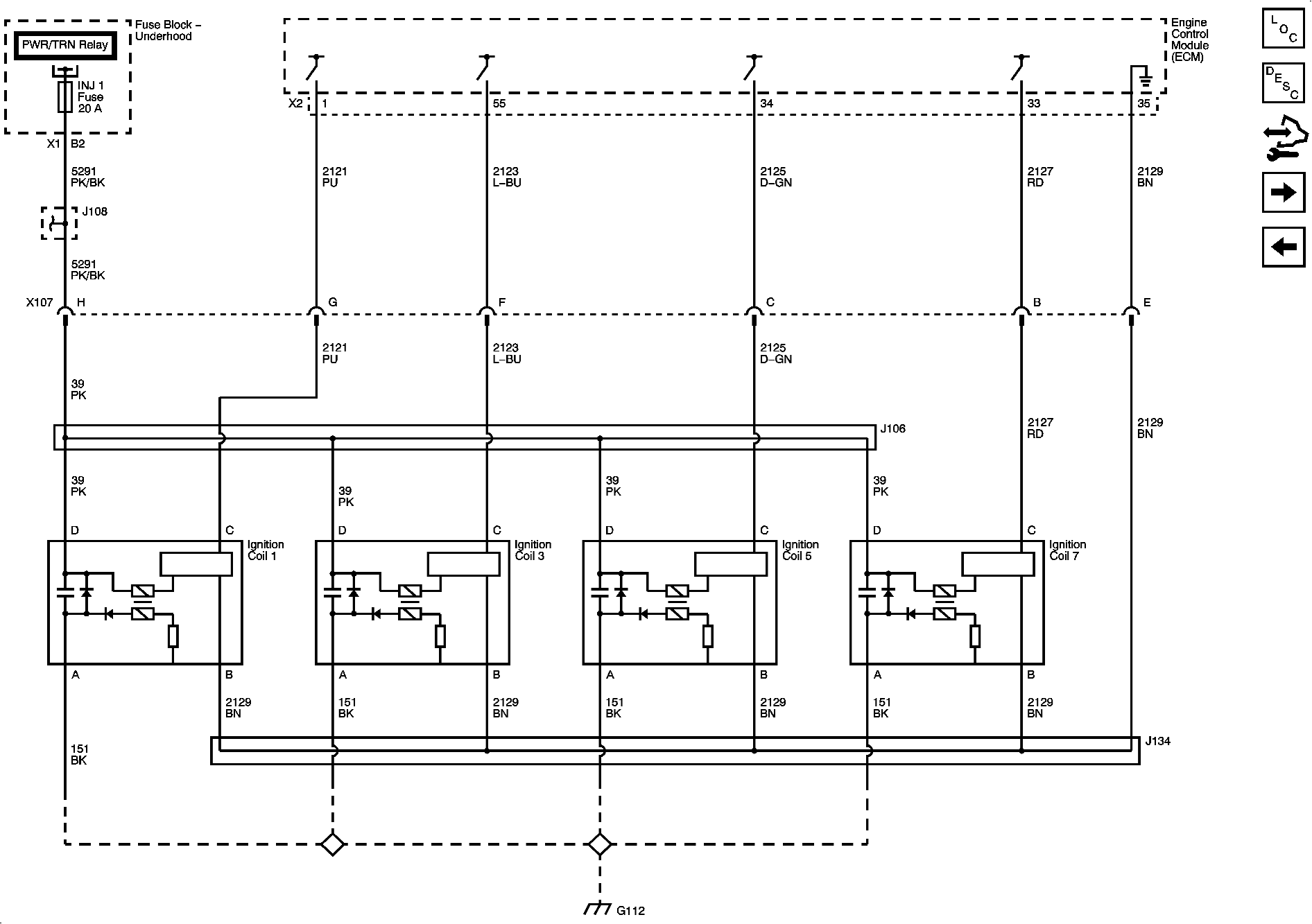

Fig 5: Ignition Controls Schematic - Ignition System Coils 1, 3, 5 & 7

Courtesy of GENERAL MOTORS CORP.

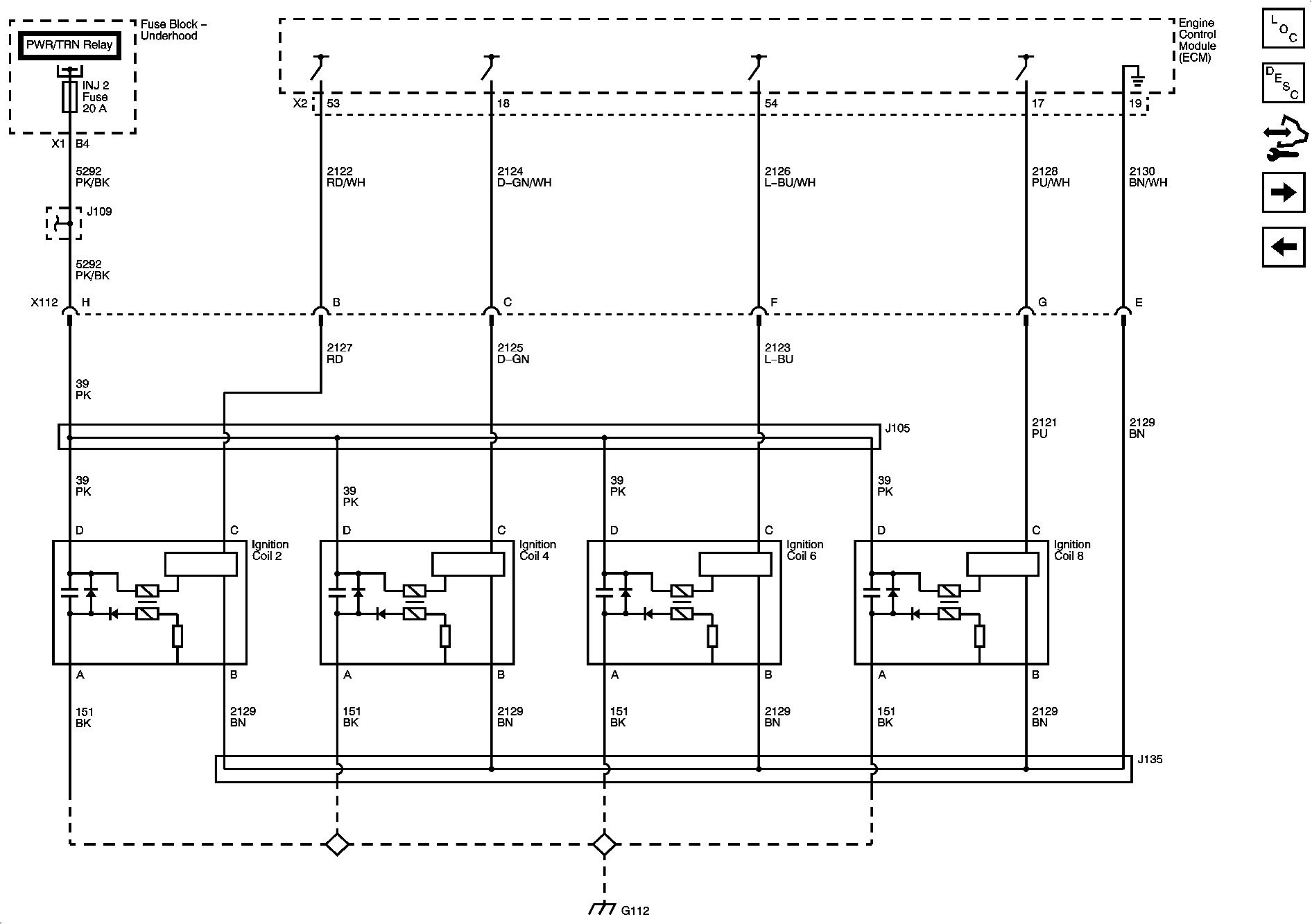

Fig 6: Ignition Controls Schematic - Ignition System Coils 2, 4, 6 & 8

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls Schematic - Sensors

Courtesy of GENERAL MOTORS CORP.

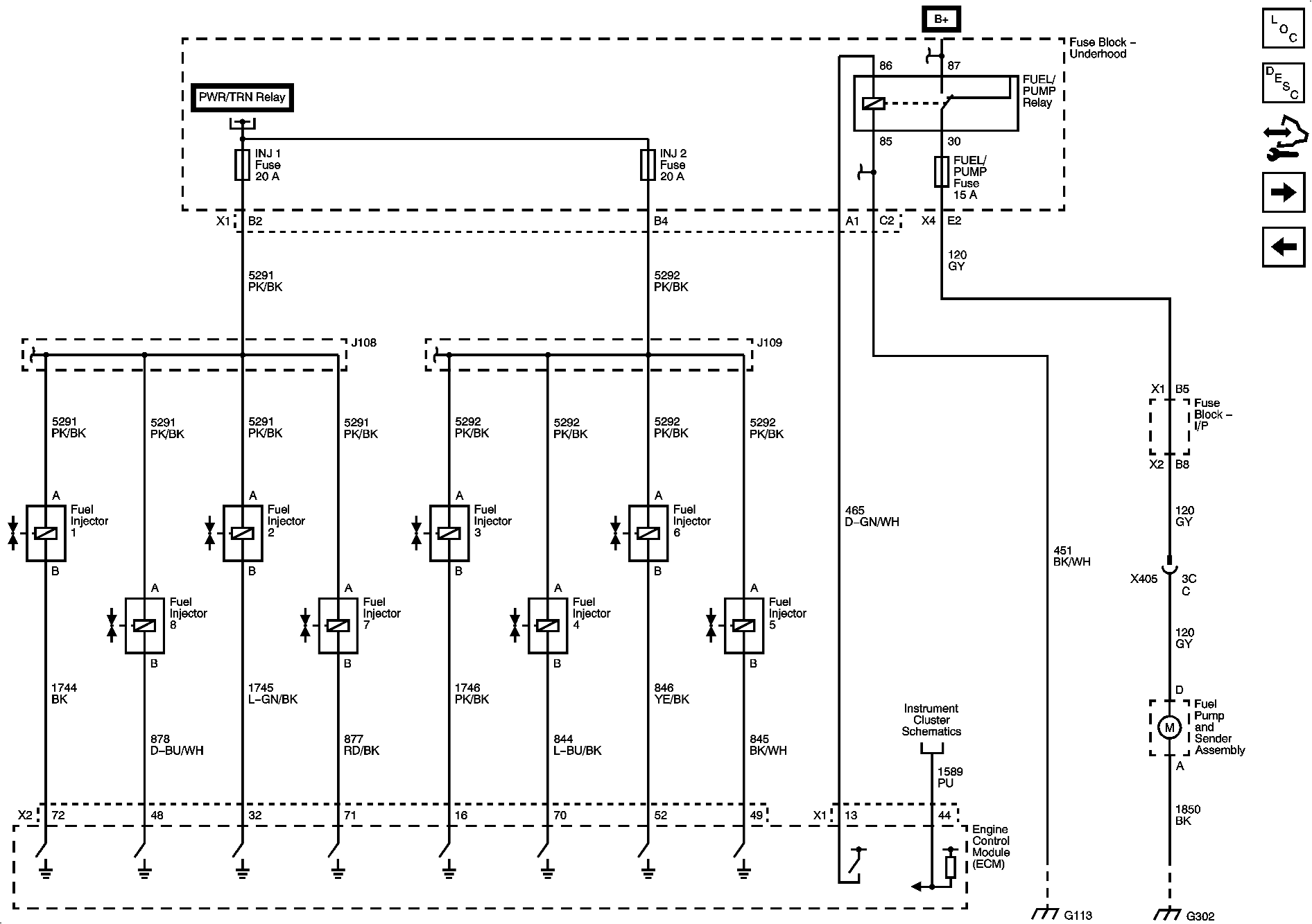

Fig 8: Fuel Controls Schematic - Fuel Injectors, and Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

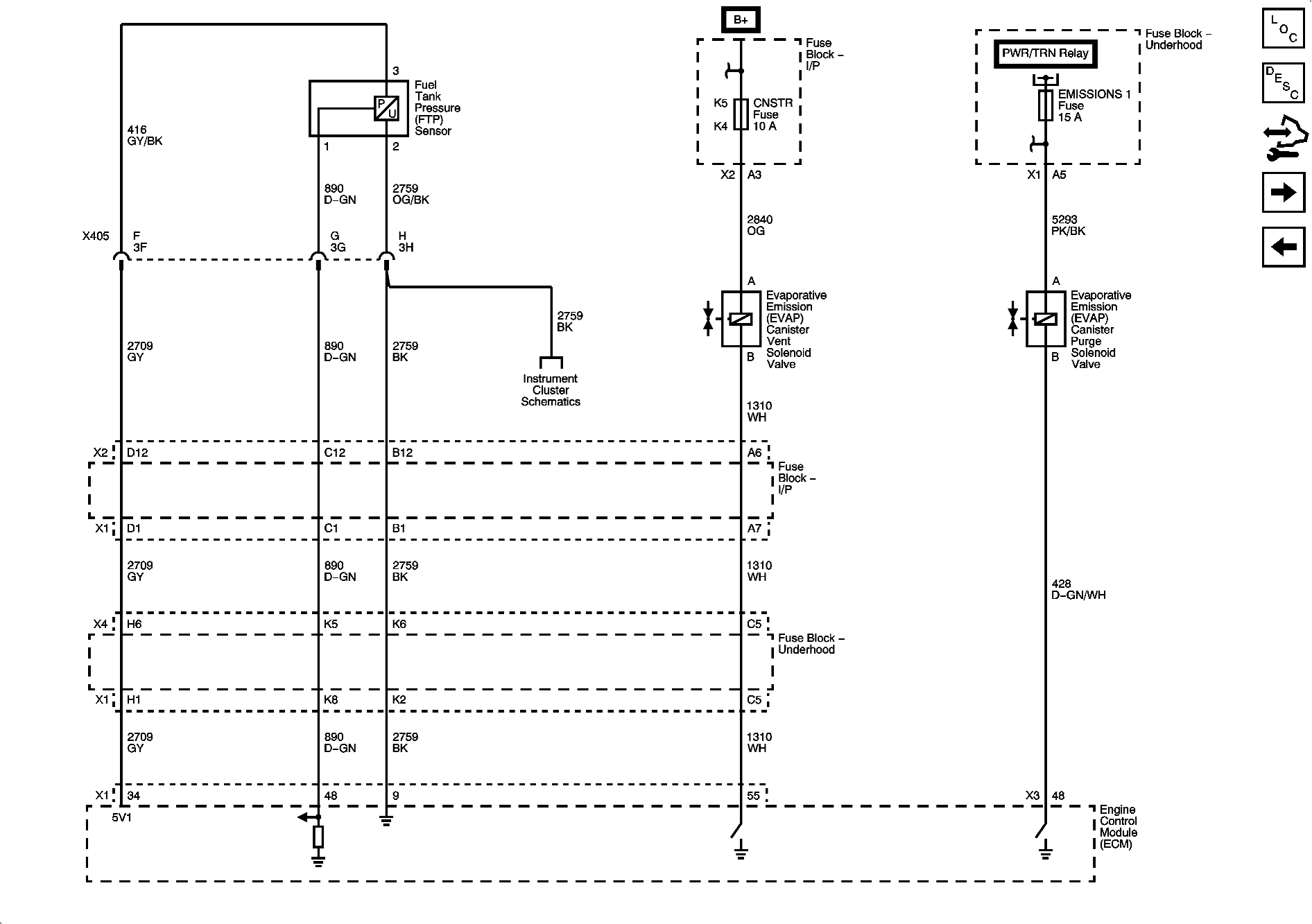

Fig 9: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

Fig 10: Monitored/Controlled Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
