Installation Procedure

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

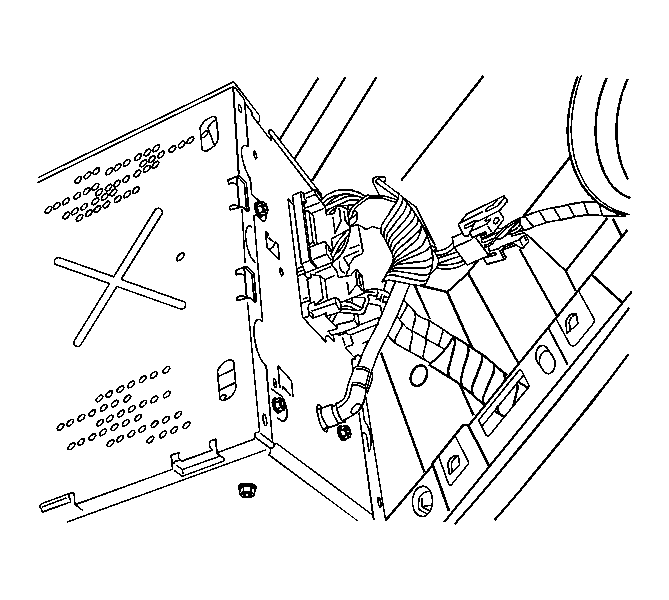

    Fig 1: View Of Instrument Panel Wiring Harness Connectors
    GM929292Courtesy of GENERAL MOTORS CORP.
  1. Position the radio to the I/P.
  2. Connect the I/P wiring harness connectors and the antenna cable connector to the radio.

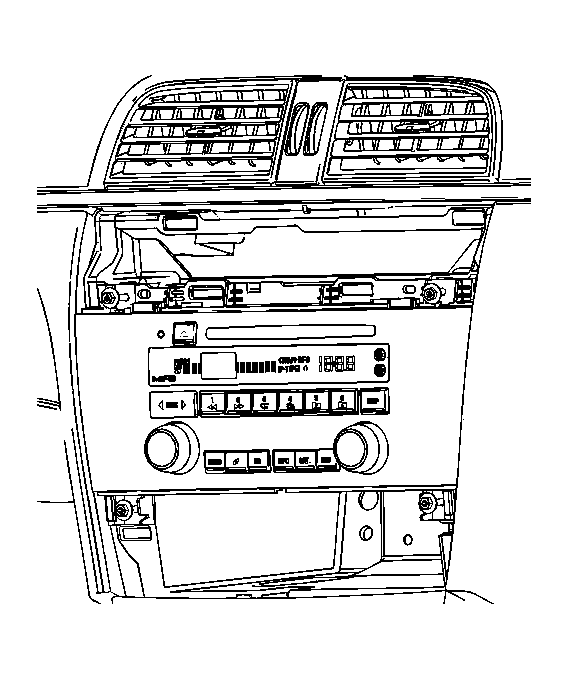

    3. Fig 2: Removing/Installing Radio
    GM1282670Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: If the radio locator is difficult to align to the I/P locator opening, pull the radio toward you and reposition the antenna cable.
  3. Install the radio to the I/P.

    Align the radio locator to the hole in the I/P while pressing the radio into position.

    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the radio screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  5. Install the drivers information center switch bank. Refer to Driver Information Display Switch Replacement in Instrument Panel, Gages, and Console.
  6. Install the HVAC control assembly. Refer to HVAC Control Assembly Replacement in HVAC Systems - Manual.
  7. Perform the radio set up procedure for new radios. Refer to Control Module References for programming and setup information.
