Installation Procedure

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

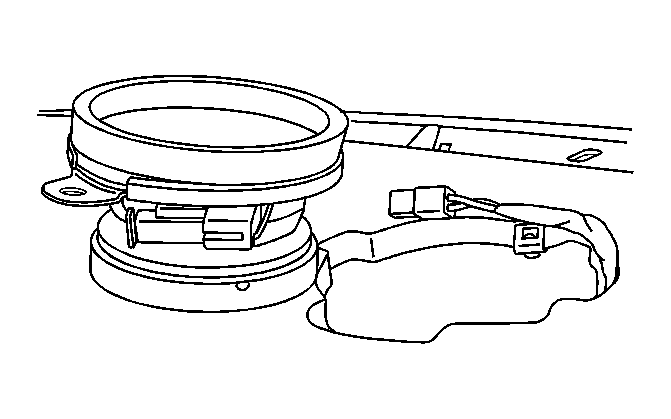

Fig 1: View Of Center Speaker & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the front speaker electrical connector to the front speaker.

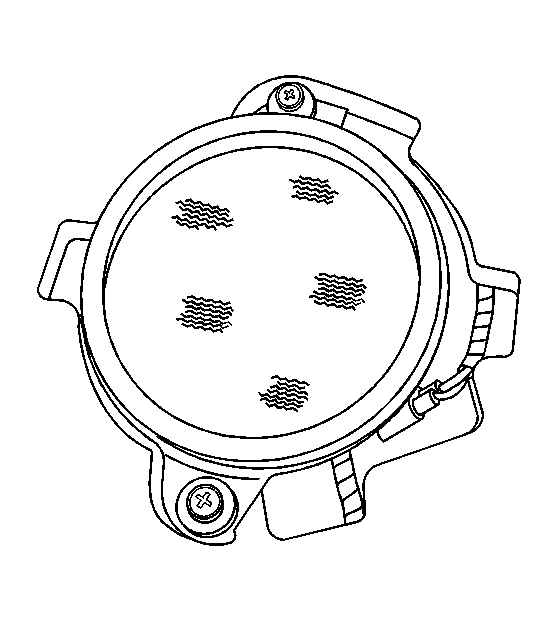

Fig 2: View Of Center Speaker

Courtesy of GENERAL MOTORS CORP.

Lower the speaker into the opening in the I/P.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the center speaker screws.
Tighten: Tighten the screws to 2 N.m (18 lb in).

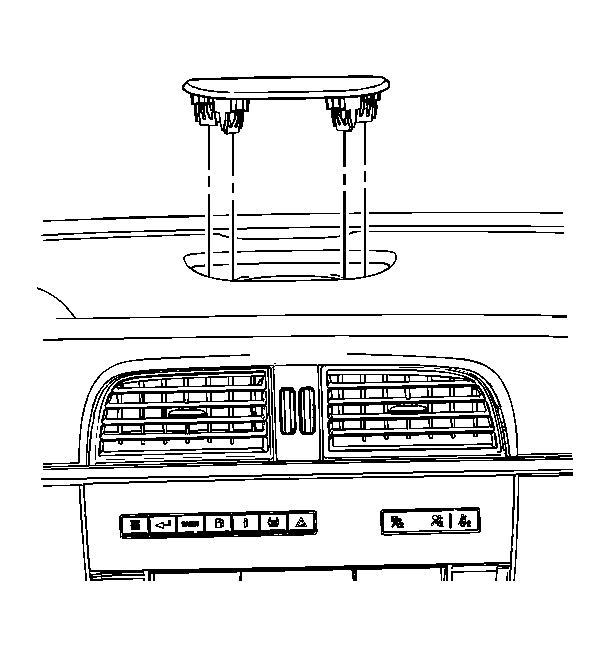

Fig 3: Removing/Installing Front Speaker Grille

Courtesy of GENERAL MOTORS CORP.

Align the speaker grille to the I/P.
Press the speaker grille into the I/P.
