Removal Procedure

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

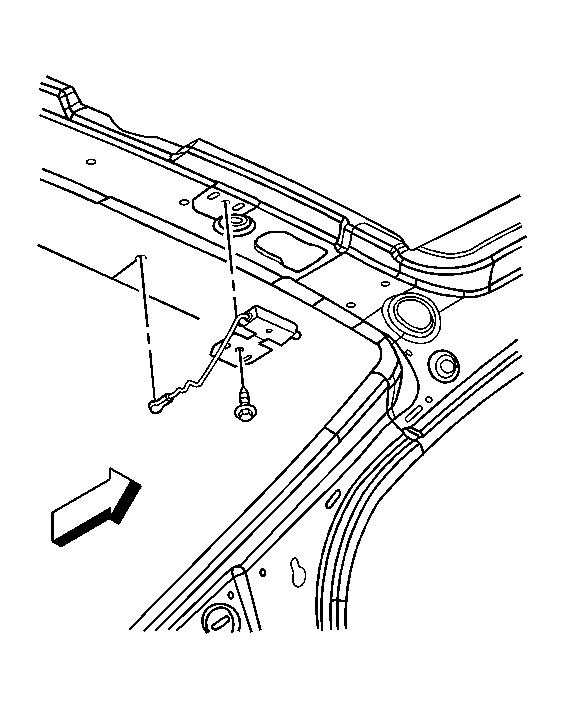

    Fig 1: View Of Antenna Module
    GM907780Courtesy of GENERAL MOTORS CORP.
  1. Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement .
  2. Remove the antenna module bolt.
  3. Disconnect the antenna module electrical connector.
  4. Disconnect the antenna coaxial cable.
  5. Disconnect the rear window antenna lead from the rear window antenna connector.
  6. Remove the antenna module.
