Installation Procedure

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

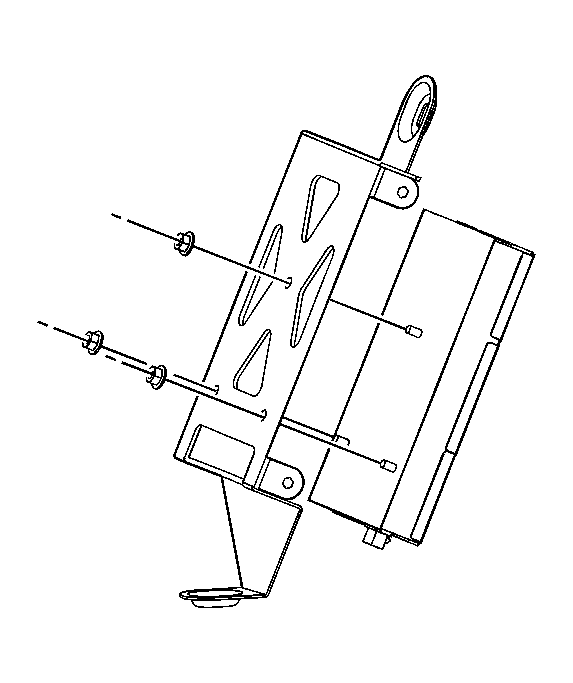

    Fig 1: View Of Digital Radio Receiver & Receiver Bracket
    GM1203642Courtesy of GENERAL MOTORS CORP.
  1. Connect the antenna connector.
  2. Connect the electrical connector.
  3. Install the electrical connector CPA.
  4. Install the digital radio receiver to the receiver bracket.
    5. NOTE: Refer to Fastener Notice .
  5. Install the digital radio receiver nuts.

    Tighten:  Tighten the nuts to 5 N.m (44 lb in).

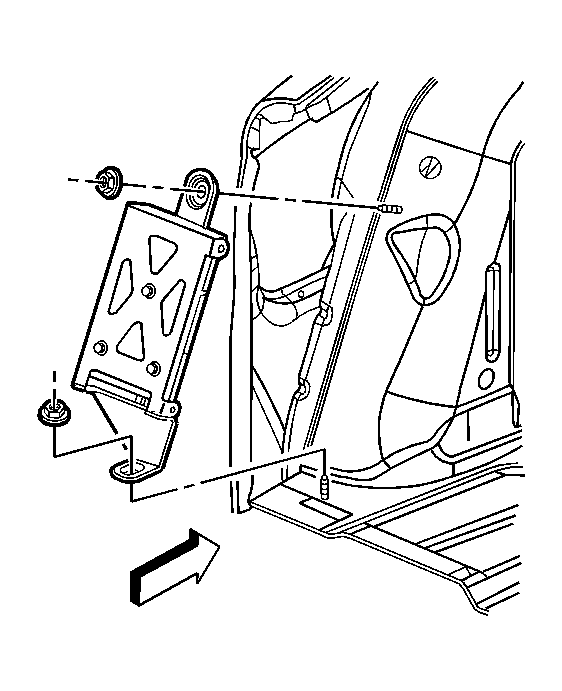

    6. Fig 2: View Of Rear Compartment Trim Panel & Receiver Bracket
    GM907783Courtesy of GENERAL MOTORS CORP.
  6. Align the receiver and bracket assembly to the studs.
  7. Install the receiver bracket nuts.

    Tighten:  Tighten the nuts to 4 N.m (35 lb in).

  8. Install the left rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
  9. Perform the setup procedure for the digital radio receiver. Refer to Control Module References for programming and setup information.
