Installation Procedure

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

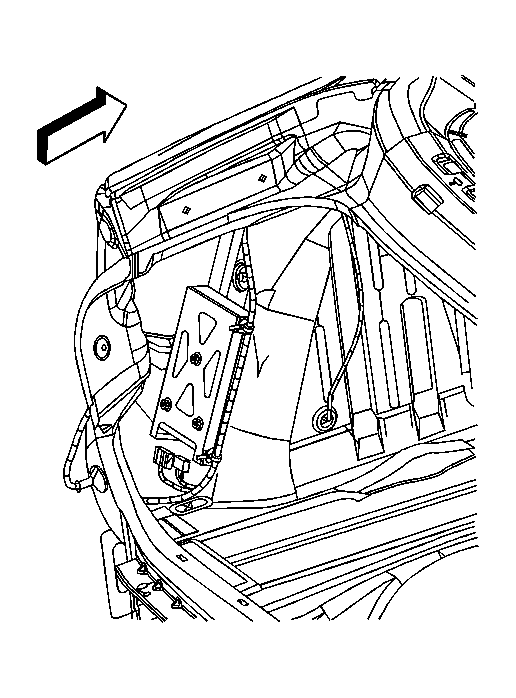

    Fig 1: View Of Digital Radio Receiver
    GM1203693Courtesy of GENERAL MOTORS CORP.
  1. Install the new antenna cable to the retainers on the receiver bracket.
  2. Connect the antenna cable to the digital radio receiver.
  3. Route the antenna cable through the rear seat back pass through into the passenger compartment. Wrap the cable and harness with tape at the pass through to avoid abrasion and rattles.
  4. Secure the antenna cable to the wire harness in the rear compartment.
  5. Install the rear compartment trim panel.
    6. Fig 2: View Of Radio Antenna Module & Antenna Cable
    GM1203709Courtesy of GENERAL MOTORS CORP.
  6. Connect the antenna cable (3) to the antenna base cable connector.
  7. Secure the antenna cable to the wire harness.
  8. Install the headliner. Refer to Headlining Trim Panel Replacement .
  9. Install the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
