Installation Procedure

WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Position the speaker on the I/P.
Slide the wire down through the I/P to the end cap.
Connect the wire to the I/P harness.
Press the wire clip onto the I/P.
Press the end cap onto the I/P.

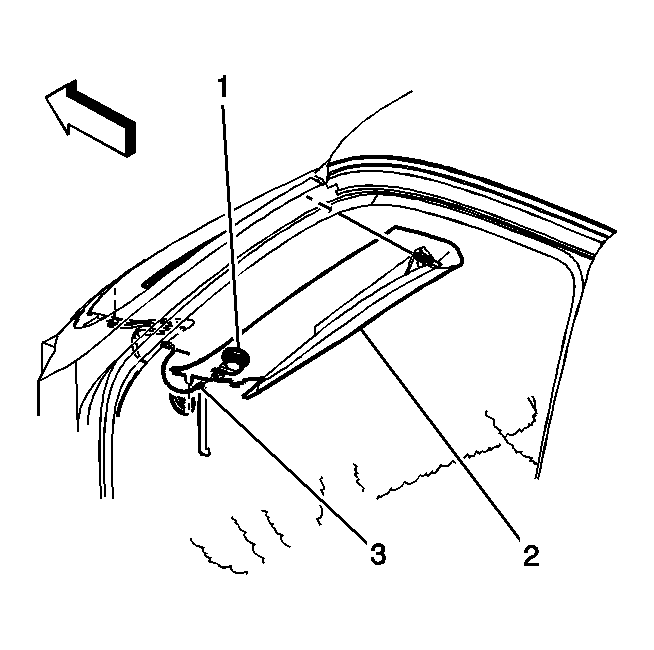

Fig 1: Identifying Front Windshield Pillar Speaker

Courtesy of GENERAL MOTORS CORP.

Press in the speaker (1) until it is fully seated on the garnish molding.
Install the windshield garnish molding (2). Refer to Windshield Pillar Garnish Molding Replacement .
