Cellular Communications/Digital Radio Antenna Replacement
WARNING: This page is about a different car, the 2008 Buick LaCrosse and 2008 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

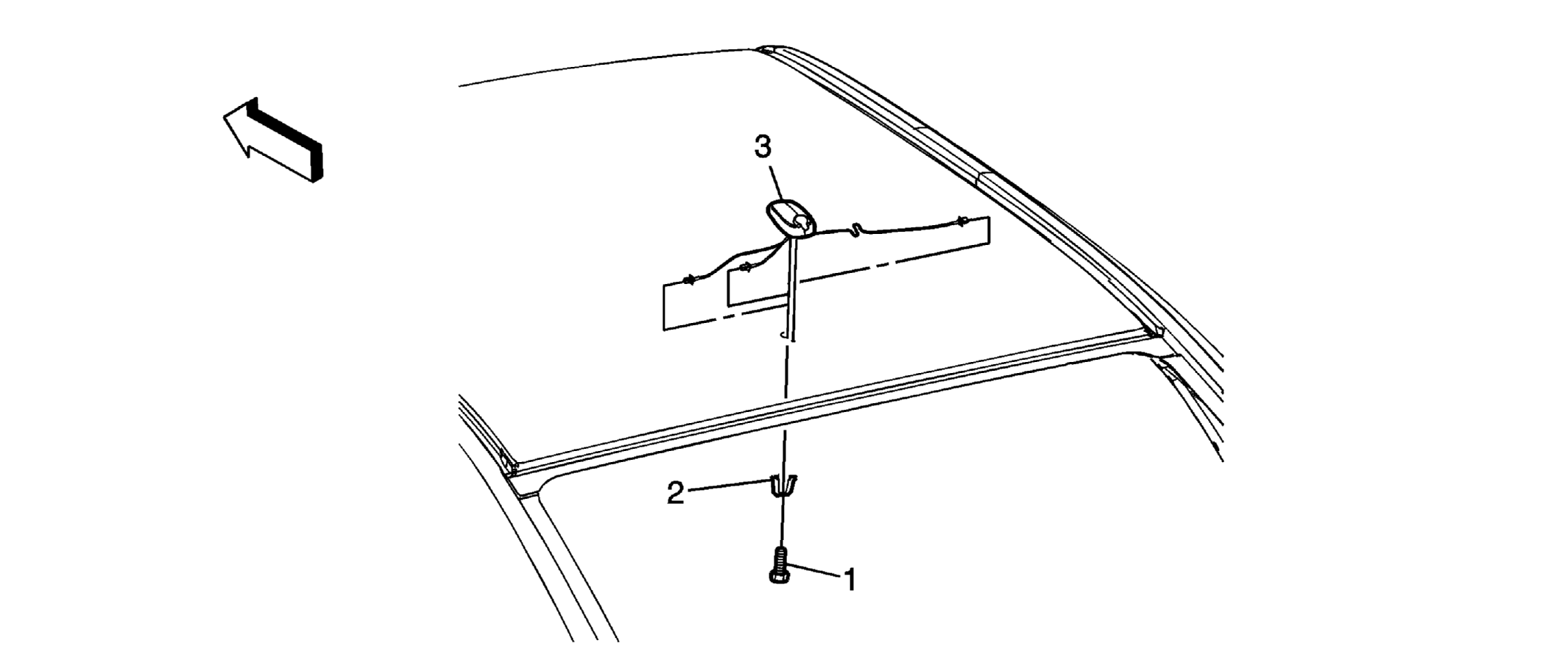

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Mobile Telephone and Vehicle Location Antenna Base Bolt
NOTE:
Refer to Fastener Notice
. Tip: Disconnect the electrical connections. Tighten: 9 N.m (80 lb in) |
| 2 | Mobile Telephone and Vehicle Location Antenna Base Expansion Sleeve |
| 3 | Mobile Telephone and Vehicle Location Antenna Base Assembly |
