Installation Procedure

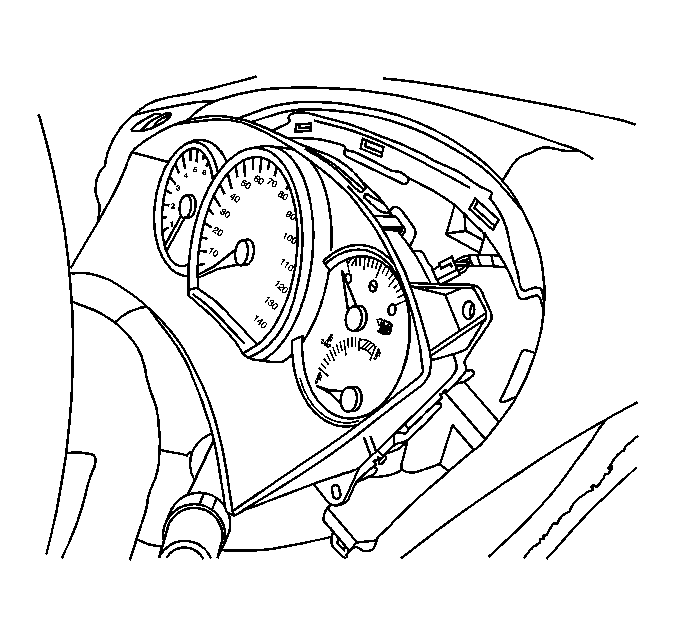

    Fig 1: View Of Instrument Cluster
    GM928746Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the instrument cluster.
  2. Align the instrument cluster to the I/P.
    3. NOTE: Refer to Fastener Notice .
  3. Install the instrument cluster screws.

    Tighten:  Tighten the instrument cluster screws to 2 N.m (18 lb in).

  4. Install the I/P cluster trim plate. Refer to Instrument Cluster Trim Panel Replacement .
  5. If a new instrument cluster was installed, program the cluster. Refer to Instrument Cluster Programming and Setup .
  6. Refer to Control Module References for programming and setup information.
