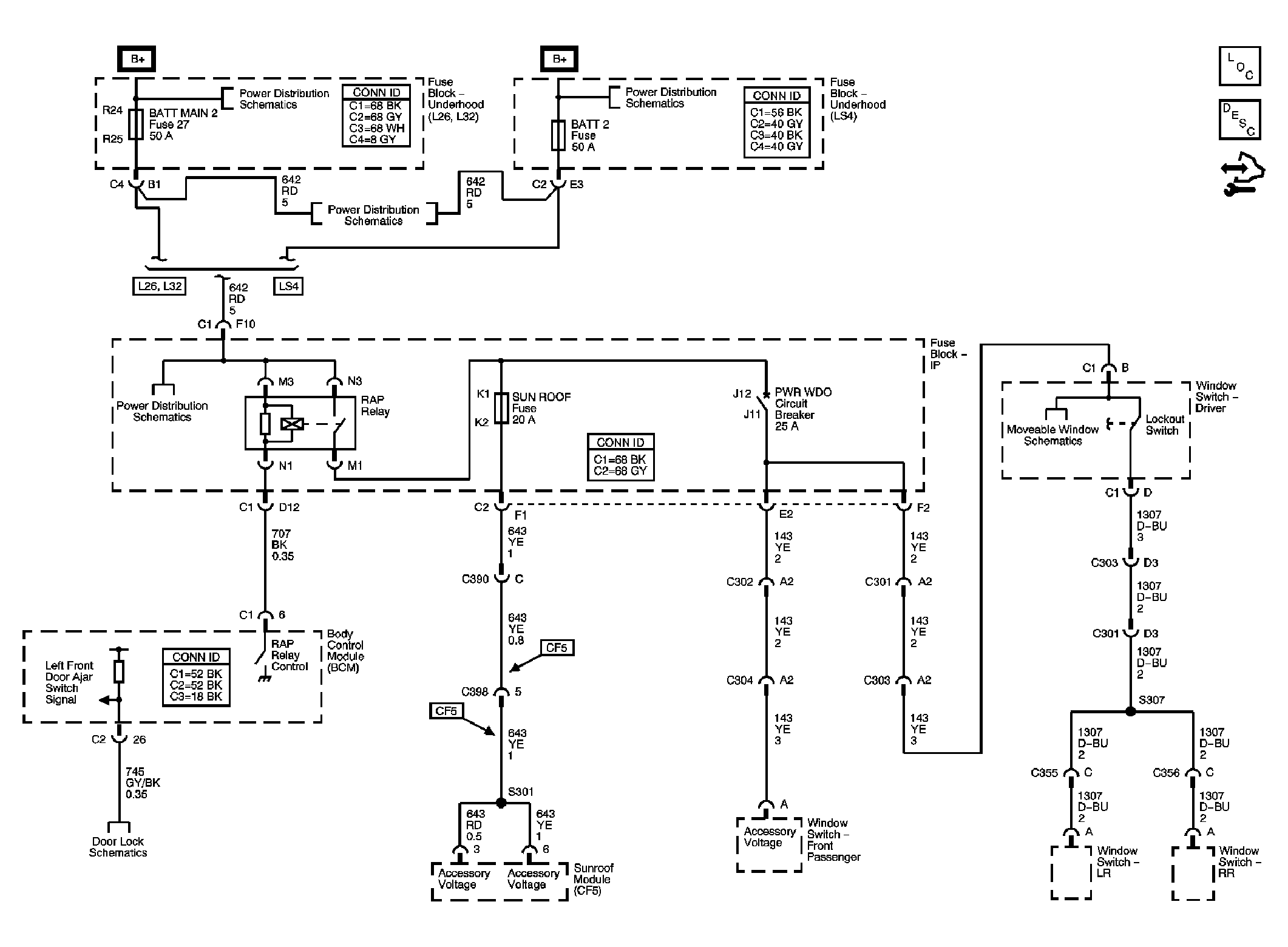

Home >> Pontiac >> 2007 >> Grand Prix Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wiring Systems & Power Management - Introduction >> Schematic and Routing Diagrams >> Power Moding Schematics
