Installation Procedure

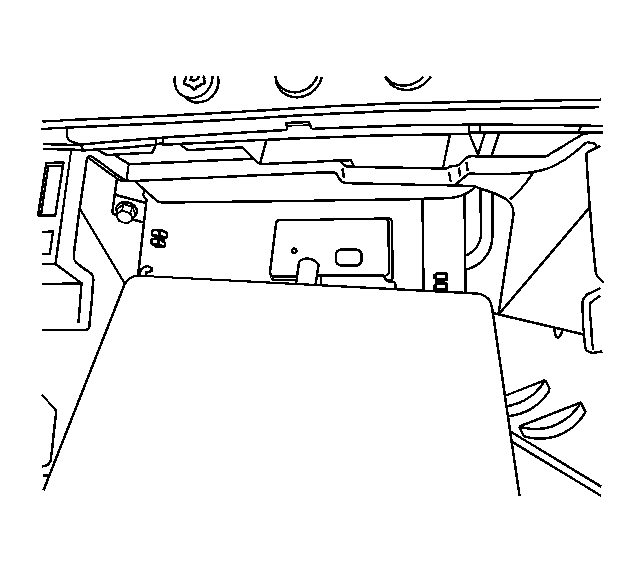

    Fig 1: I/P Center Compartment Locator
    GM929176Courtesy of GENERAL MOTORS CORP.
  1. Align the I/P center compartment locator to the opening in the vehicle location antenna module bracket.

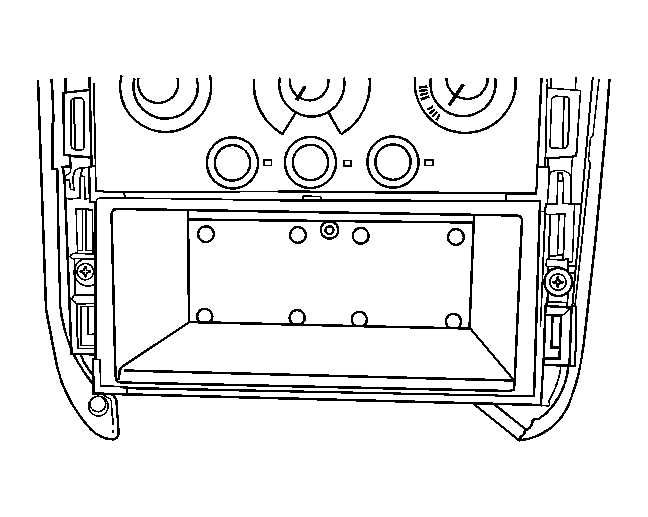

    2. Fig 2: I/P Center Compartment Screws
    GM928559Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P center compartment to the I/P.
    3. NOTE: Refer to Fastener Notice .
  3. Install the I/P center compartment screws.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  4. Shift the transaxle to P.
  5. Press to release the park brake.
  6. Install the I/P accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
    7. Fig 3: Identifying Ignition Cylinder Bezel
    GM910510Courtesy of GENERAL MOTORS CORP.
  7. Install the ignition switch bezel.
