Power and Grounding Component Views

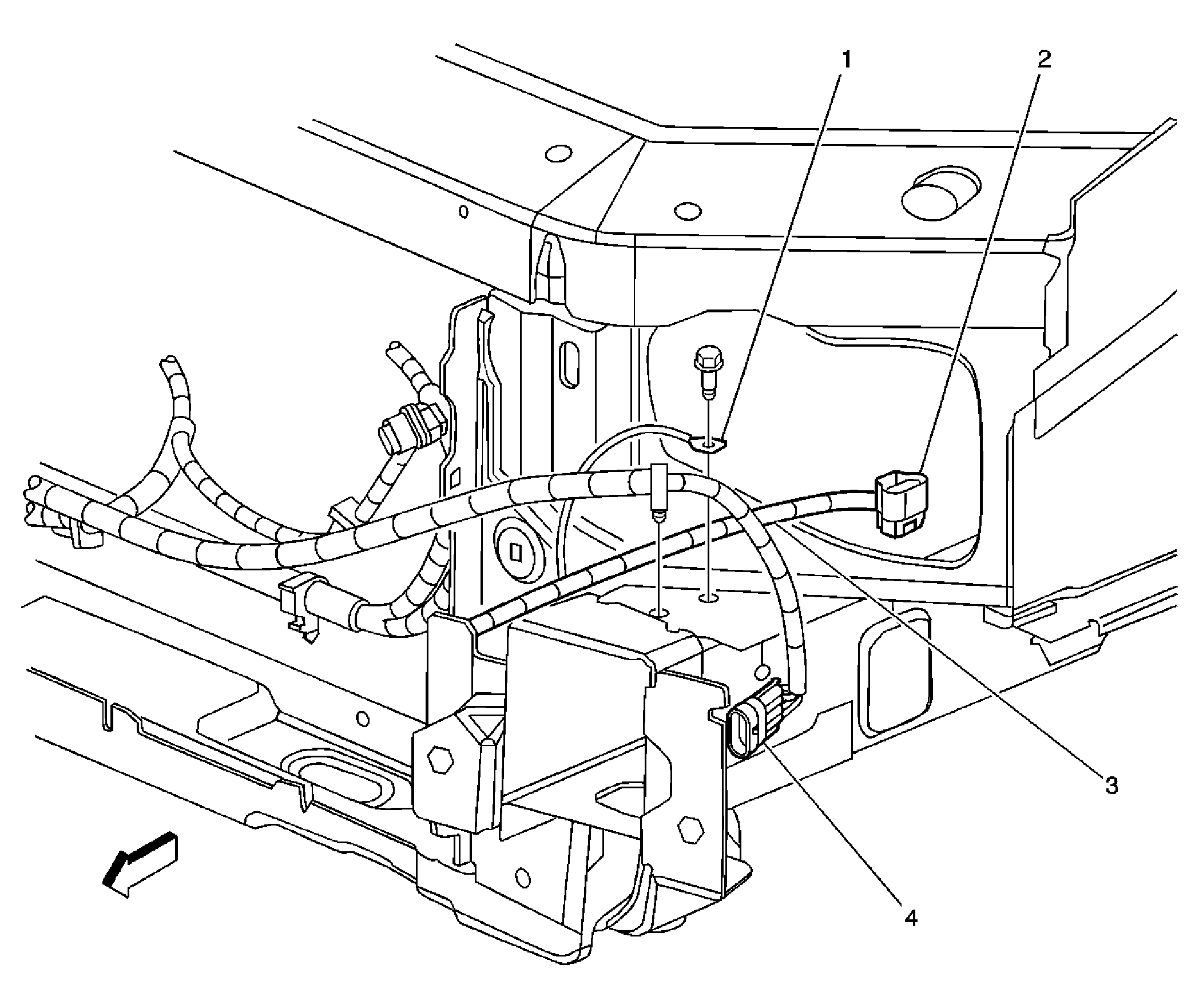

Fig 1: Left Front of the Vehicle Component Views
GM1202703Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G101
2 C141
3 S110
4 C143

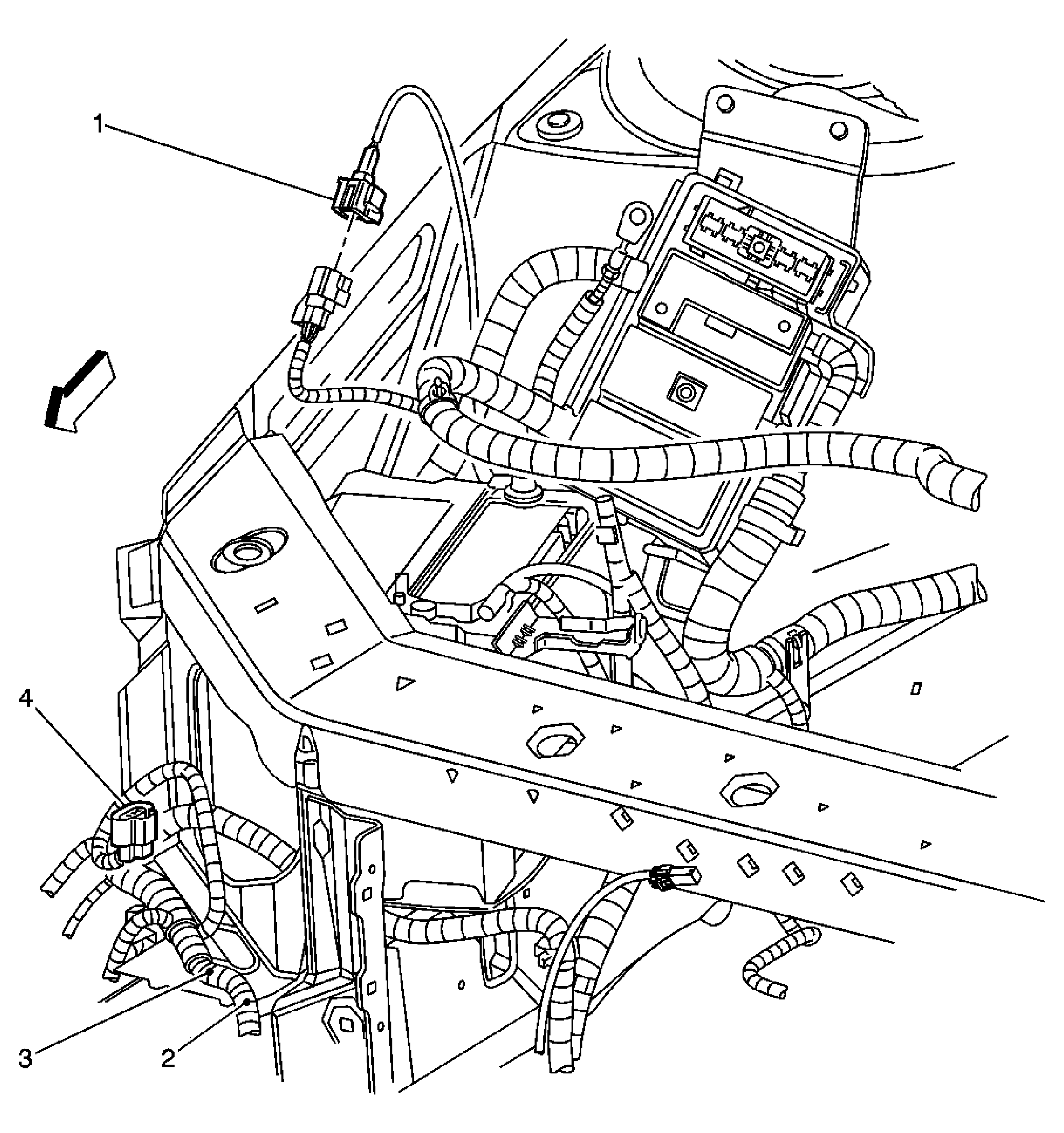

Fig 2: Right Front of the Vehicle Component Views
GM1202707Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C120
2 G100
3 S124
4 C142
Fig 3: Lower Front of the Engine Component Views
GM1203636Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Knock Sensor (KS) Bank 1
2 G115
3 Starter Solenoid
4 Starter
5 Starter Solenoid Terminal S
6 Fusible Link
7 Positive Battery Cable
8 Engine Oil Level Switch
Fig 4: G102 Component View (5.3L)
GM1373408Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Coolant Temperature (ECT) Sensor Connector
2 G113
3 Negative Battery Cable

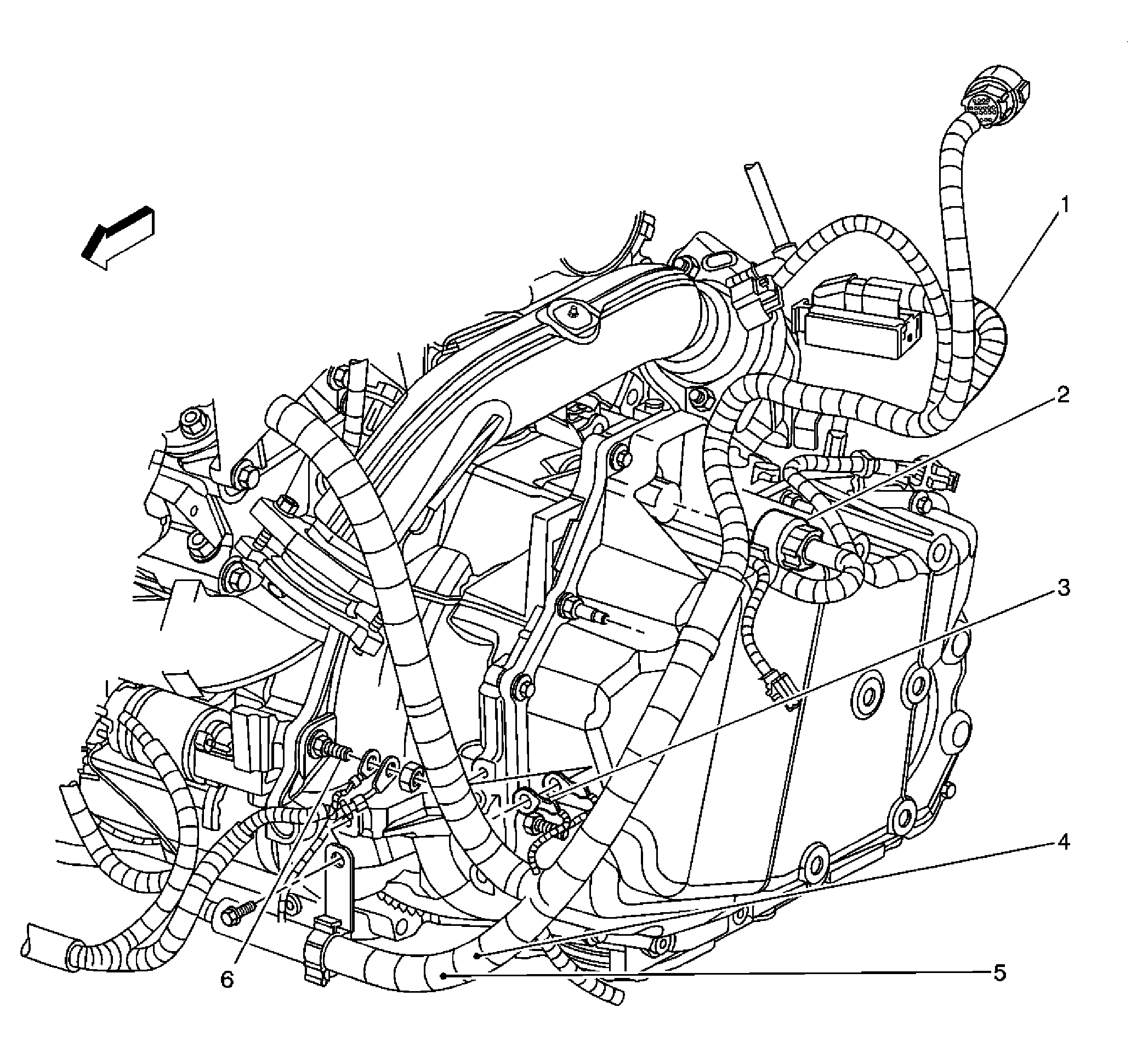

Fig 5: Left Side of the Engine Component Views
GM1202709Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S107
2 C100
3 G113
4 S105
5 S101
6 G115

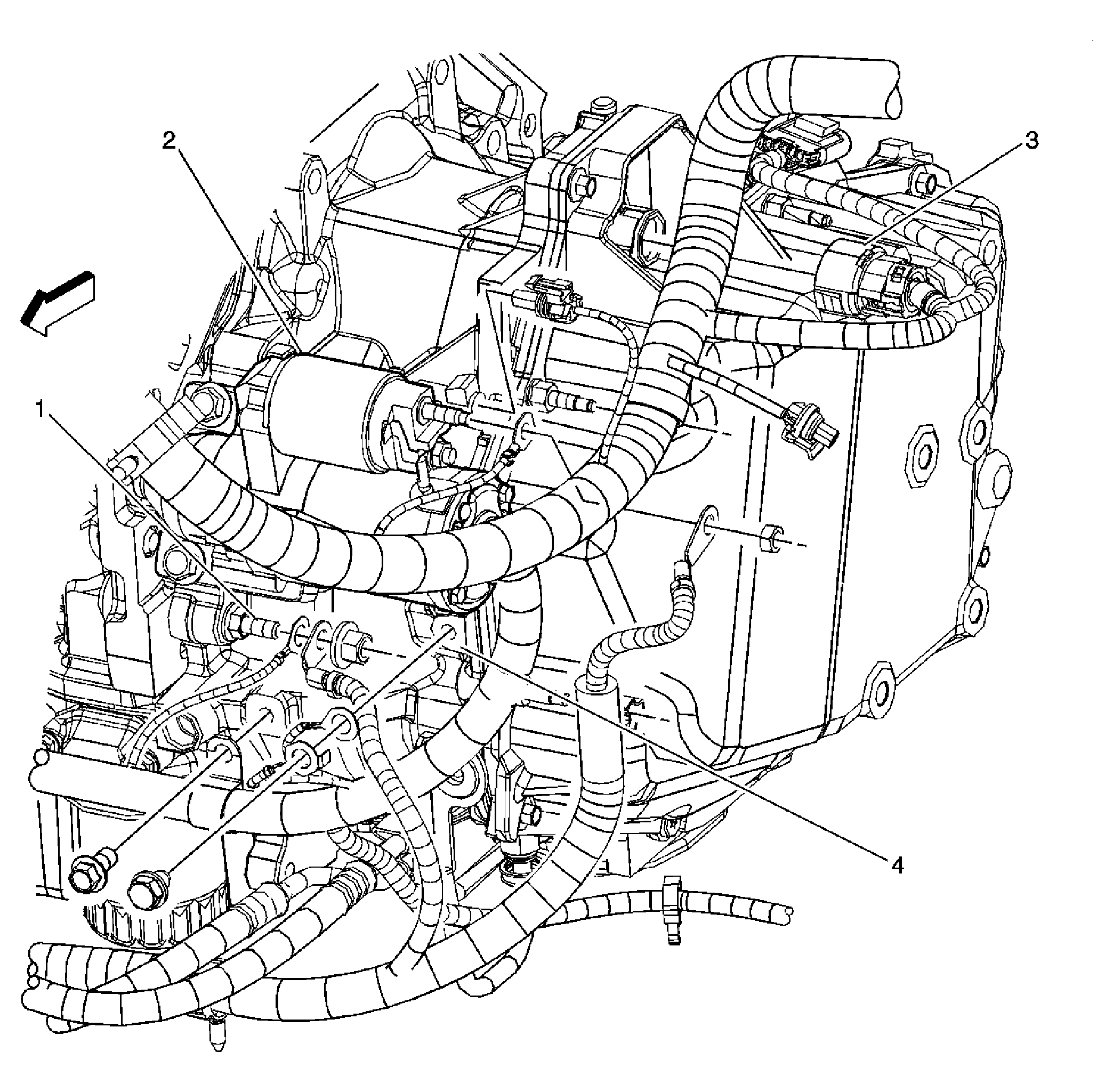

Fig 6: Front of the Engine (LS4)
GM1783315Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G113
2 Starter Solenoid
3 C100
4 G112

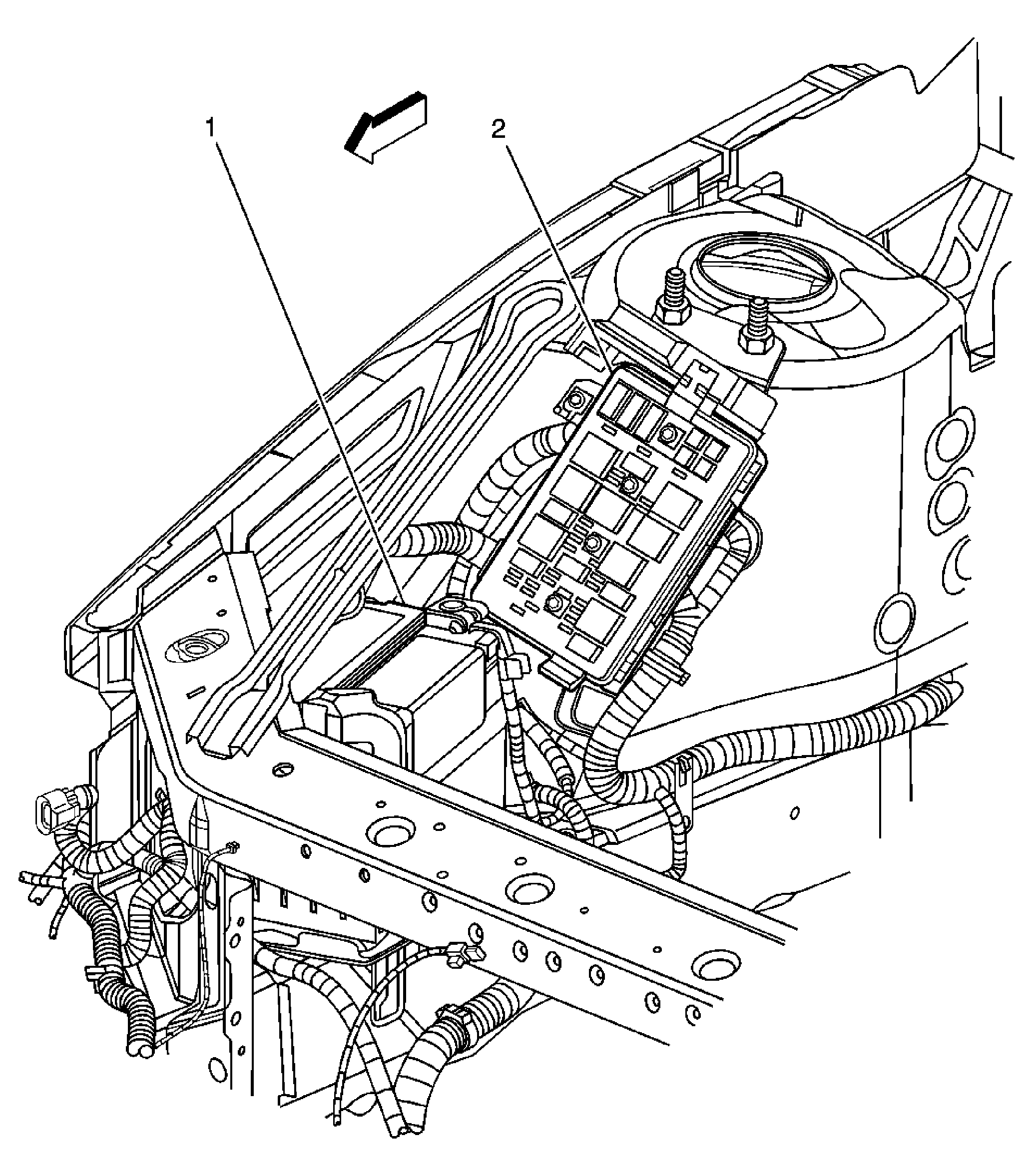

Fig 7: Right Front of Engine Compartment Component Views
GM1203156Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Fuse Block - Underhood

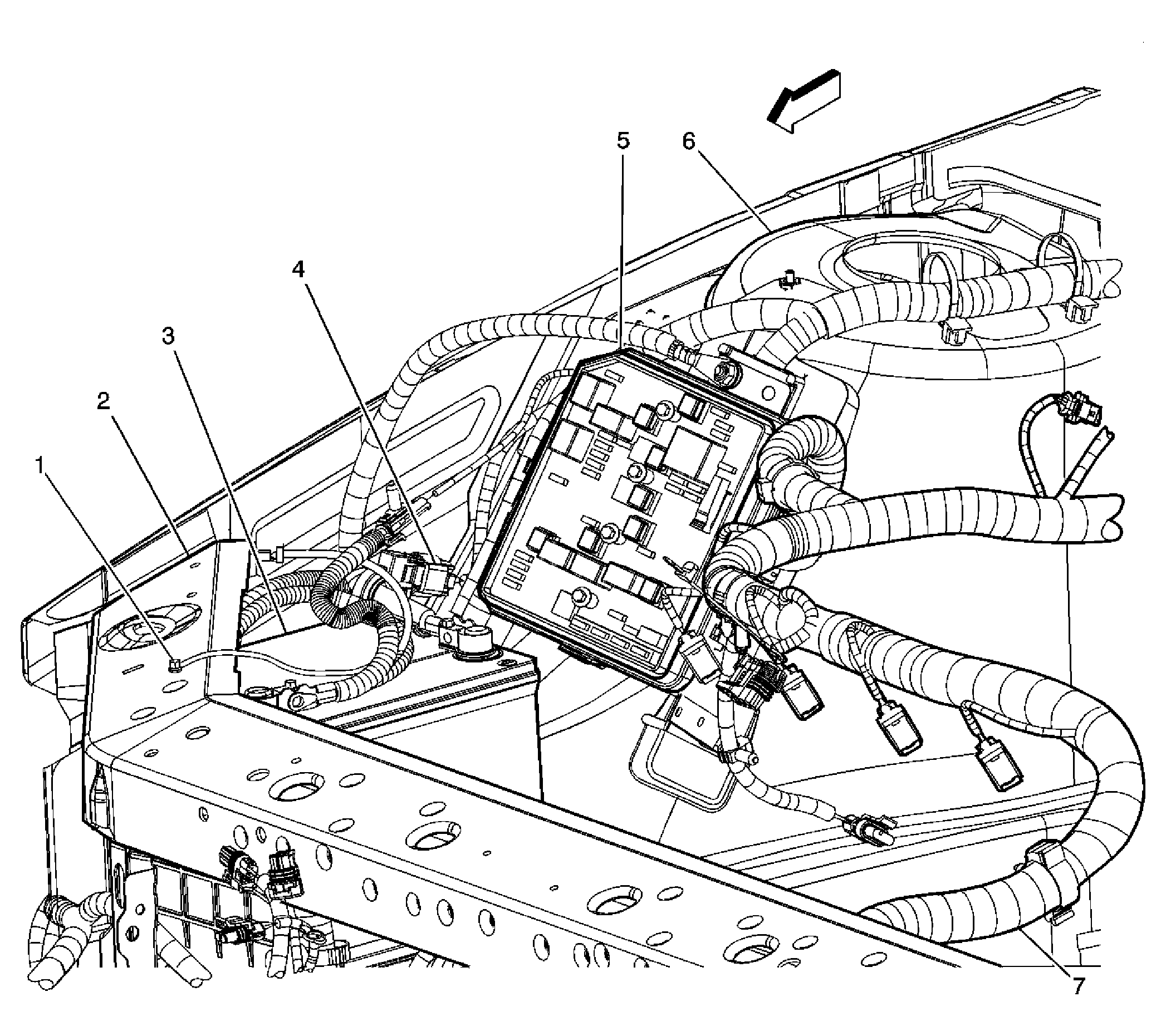

Fig 8: Right Front of Engine Compartment (LS4)
GM1574087Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G102 (LS4)
2 Radiator Core Support
3 Battery
4 Battery Current Sensor
5 Fuse Block - Underhood
6 RF Strut Tower
7 Engine Harness
Fig 9: RF Of The Engine Compartment Connectors (L36/L67)
GM1043757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Sensor
2 Ignition Control Module (ICM) Wiring Harness
3 C110
4 Ignition Control Module (ICM)
5 Ignition Coils
6 G112
7 Ignition Control Module (ICM) Wiring Harness
8 Ignition Control Module (ICM) Wiring Harness
9 Crankshaft Position (CKP) Sensor

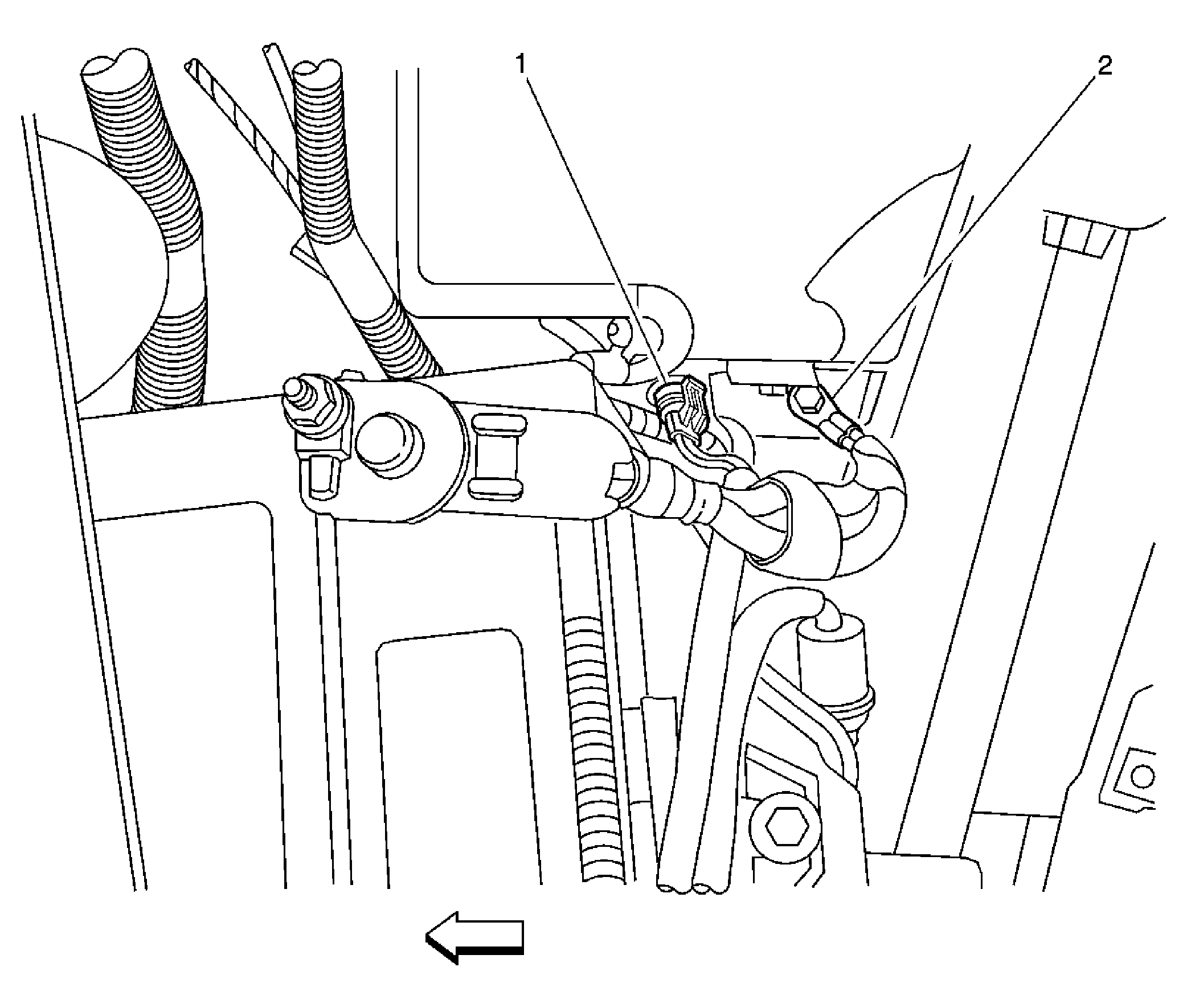

Fig 10: Right Front of Engine Compartment Component Views
GM1320848Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G102
2 C104

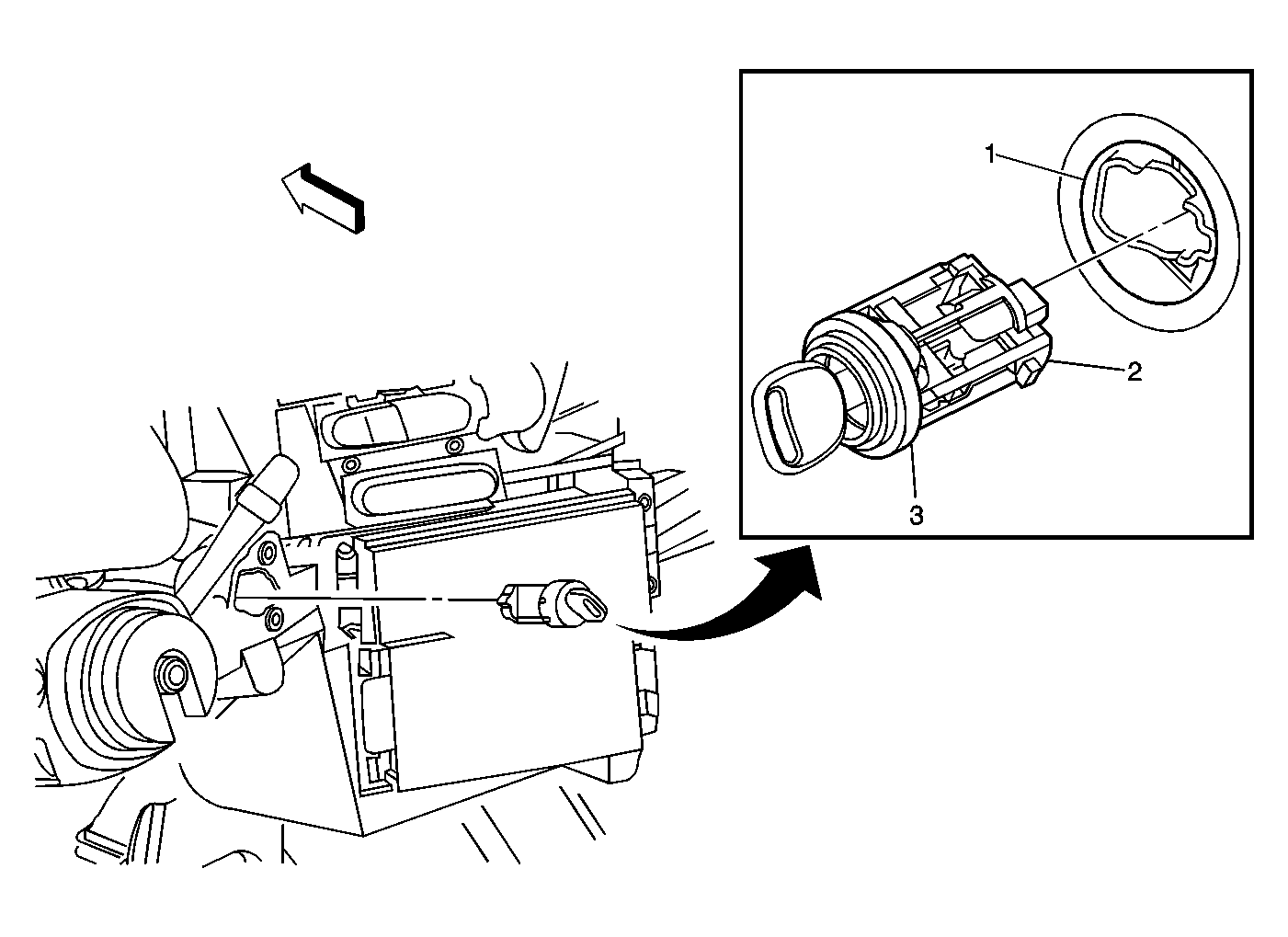

Fig 11: Passenger compartment, Right of Steering Column View
GM555458Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Cylinder Housing
2 Ignition Lock Cylinder
3 Theft Deterrent Exciter Module

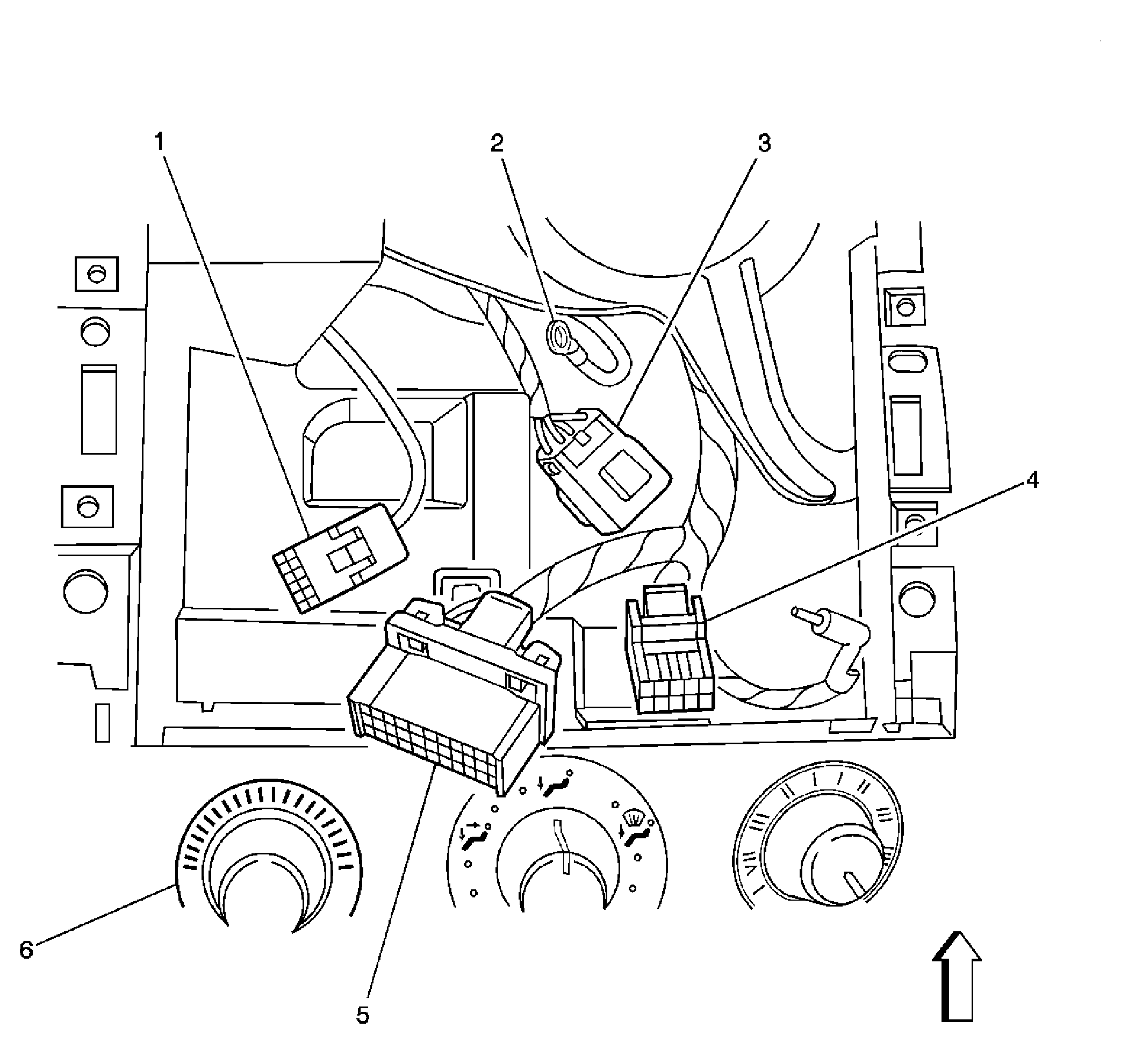

Fig 12: Center of I/P Behind Radio Component Views
GM1320806Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Connector, C2
2 G200
3 C210
4 Radio Connector, C1
5 Driver Information Center (DIC), Connector
6 HVAC Control Module

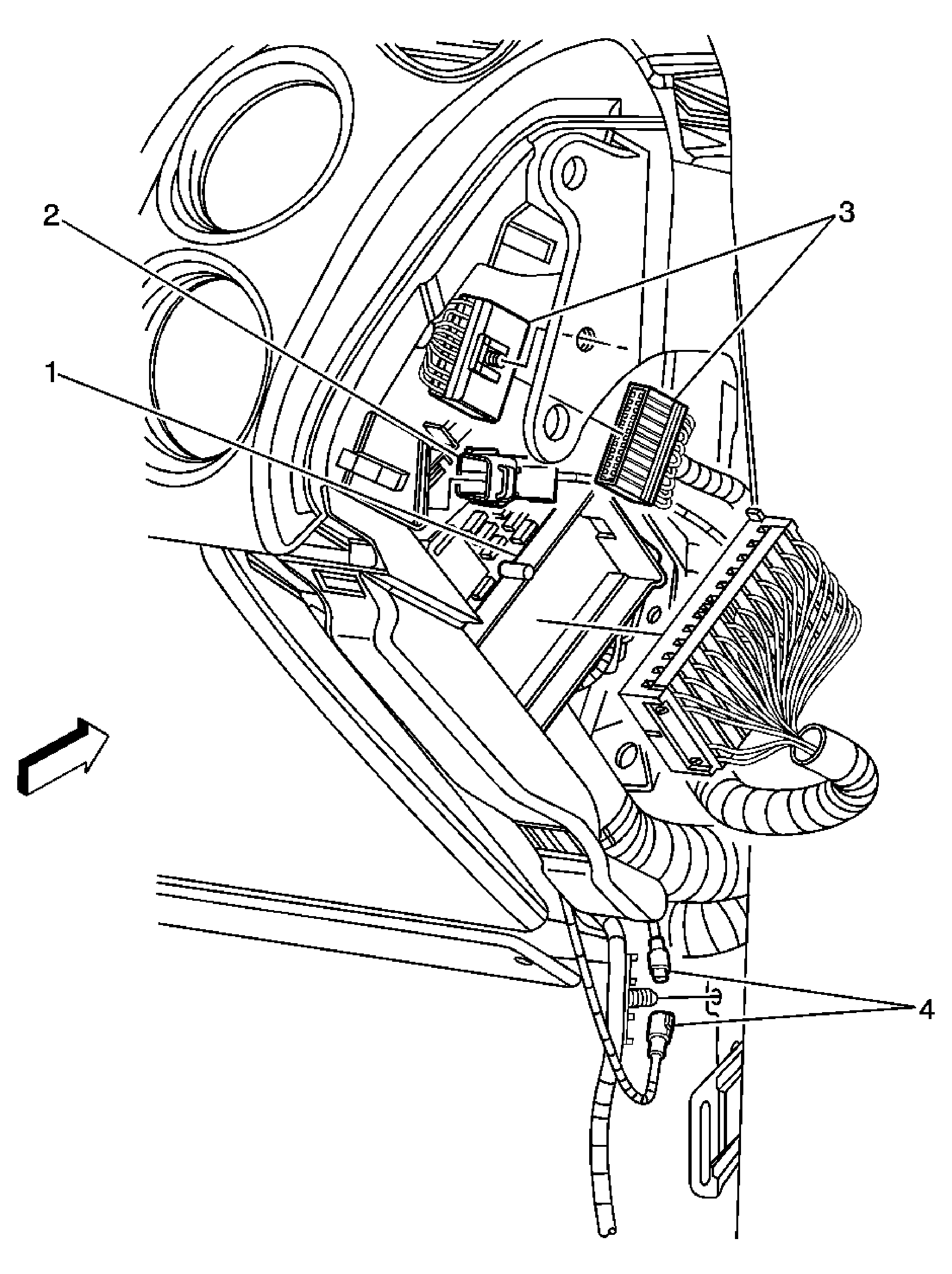

Fig 13: Right Side of the I/P Component Views
GM1203161Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - I/P
2 Inflatable Restraint I/P Module, Connector
3 C200
4 C202
Fig 14: Right Side of Upper Left Footwell Component Views
GM1211595Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C201
2 Inflatable Restraint Steering Wheel Module Coil, C1
3 G202
4 G201
5 Splice Pack SP205
6 Data Link Connector (DLC)

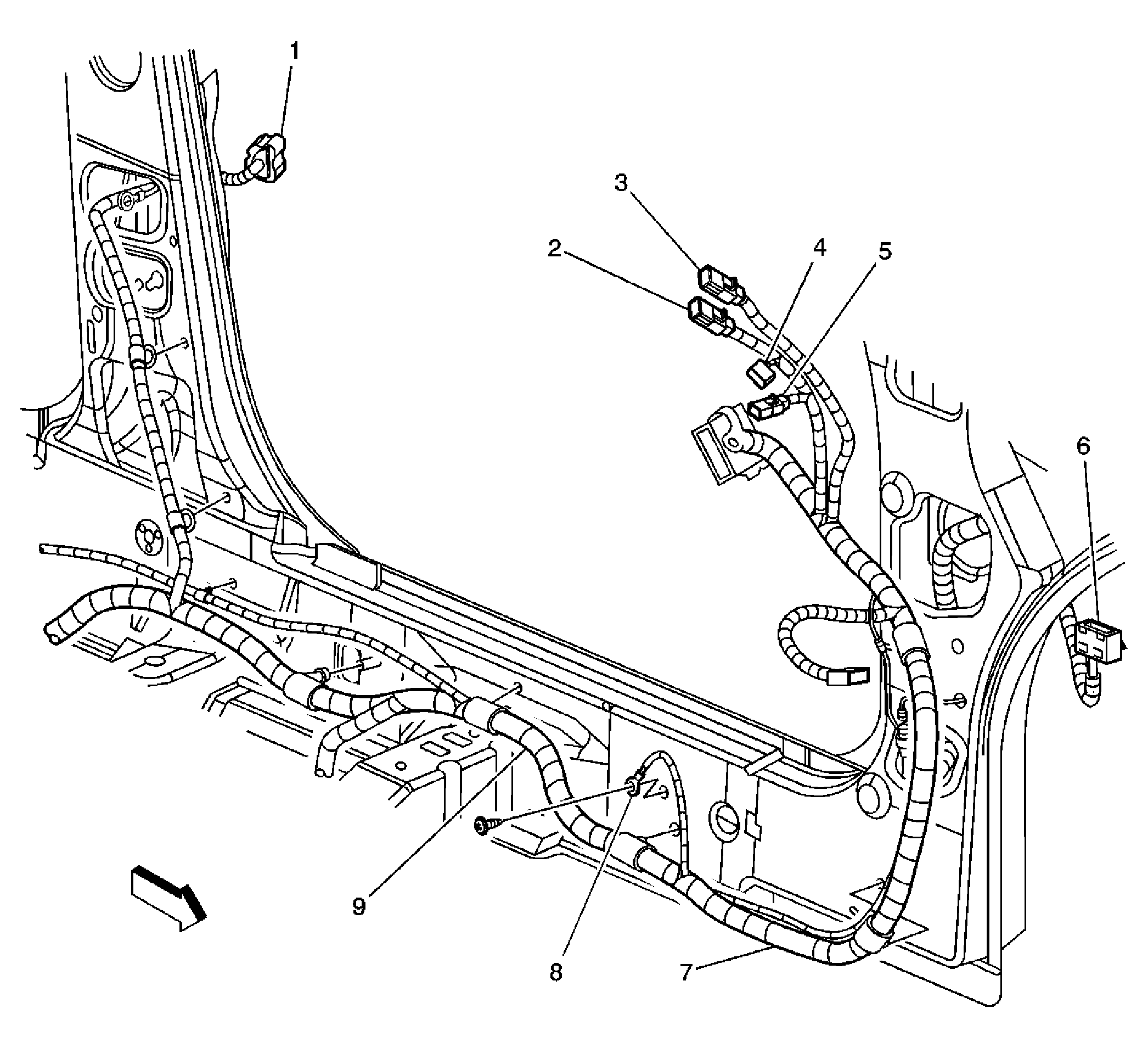

Fig 15: Left Front of the Passenger Compartment Component Views
GM1202726Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C355
2 C290
3 C291
4 C208
5 C207
6 C301
7 S307
8 G301
9 S303

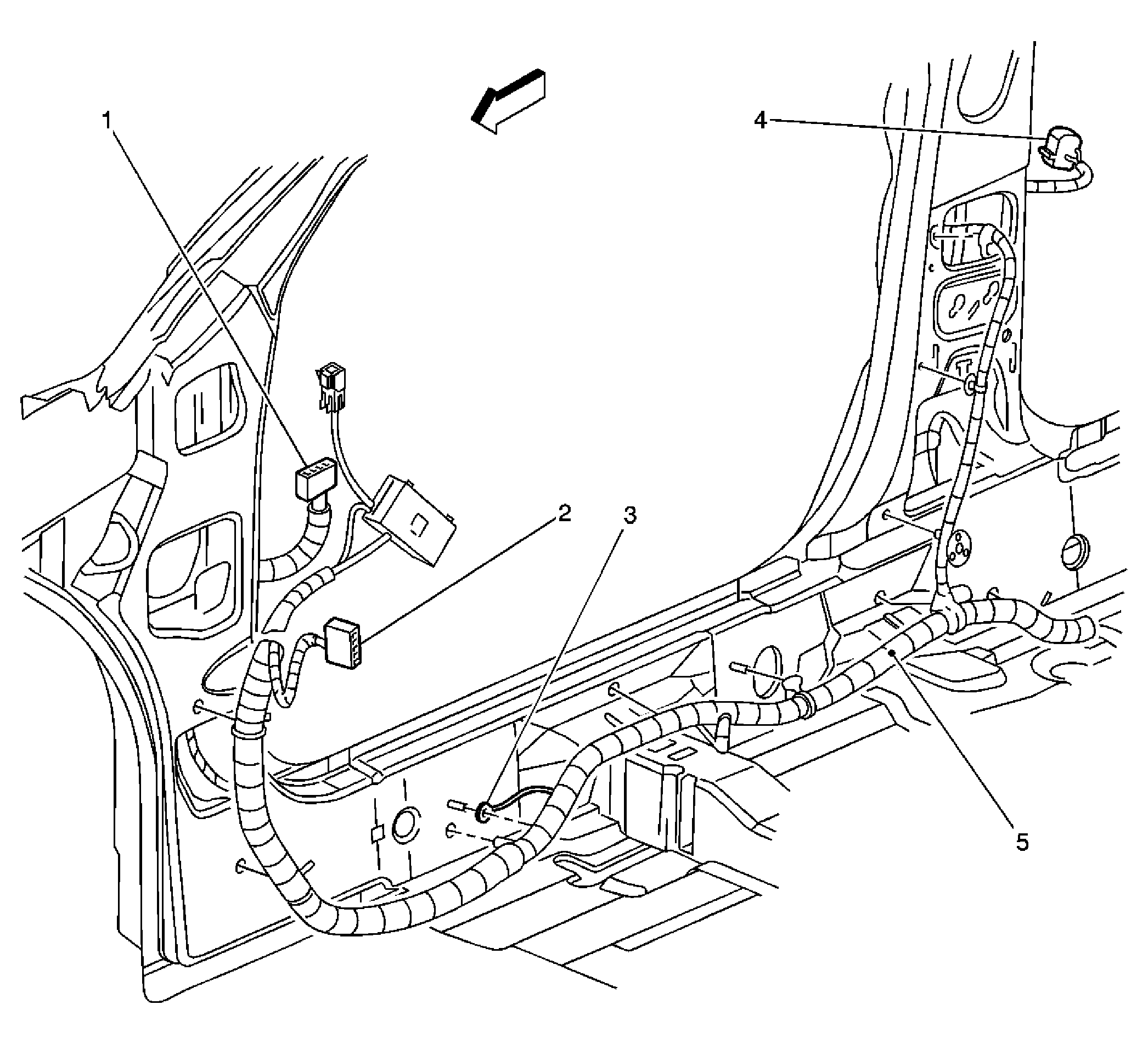

Fig 16: Right Side of the Passenger Compartment Component Views
GM1202715Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C302
2 C200
3 G302
4 C356
5 S406
