Window Systems Component Views

Fig 1: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Turn Signal Lever
2	TAP Shift Switch - Left
3	Hazard Warning Switch
4	Instrument Panel Cluster (IPC)
5	TAP Shift Switch - Right
6	Windshield Wiper/Washer Switch
7	Ignition Switch
8	Driver Information Center (DIC)
9	Radio
10	HVAC Control Module
11	Heated Seat Switch - Front Passenger
12	Rear Defogger Switch
13	Heated Seat Switch - Driver
14	Steering Wheel Controls - Right
15	Inflatable Restraint Steering Wheel Module
16	Tilt Steering Wheel Lever
17	Steering Wheel Controls - Left
18	Interior Lamp Switch

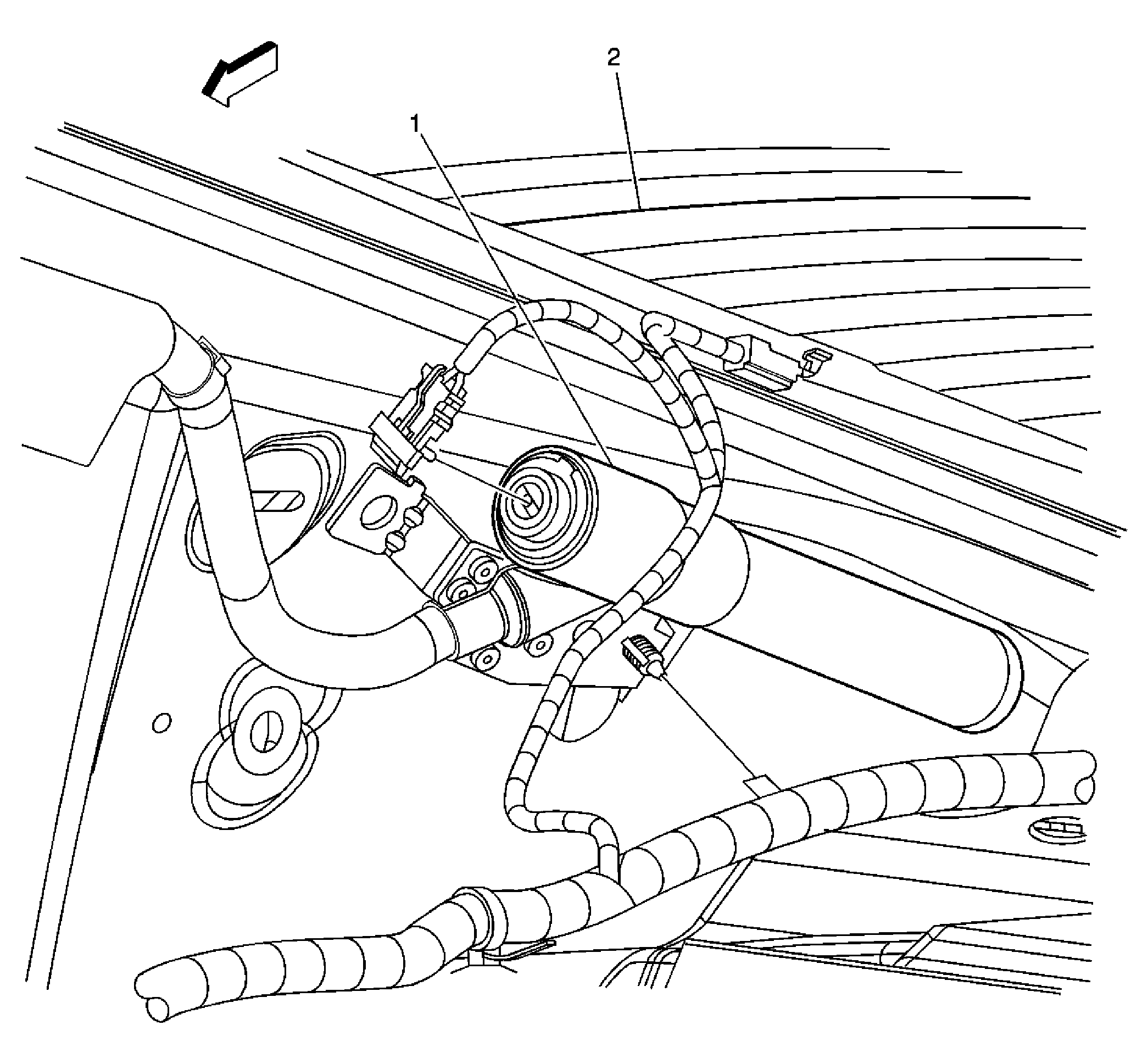

Fig 2: Right Rear Of The Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Rail Module - Right (AY1)
2	Rear Window Defogger Grid

Fig 3: Driver Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock - Driver
2	Inflatable Restraint Side Impact Sensor - Left (AY1)
3	Window Motor - Driver
4	Outside Rearview Mirror - Driver
5	Speaker - LF Door
6	C303
7	S305

Fig 4: Driver Door Trim Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Window Switch - Driver
3	Door Lock Switch - Driver
4	C303
5	Speaker - LF Door Tweeter Connector
6	S304

Fig 5: Front Passenger Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	C304
3	Inflatable Restraint Side Impact Sensor - Right (AY1)
4	Door Lock - Front Passenger
5	Window Motor - Front Passenger
6	S604
7	Speaker - RF Door

Fig 6: Front Passenger Door Trim Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Front Passenger
2	Window Switch - Front Passenger
3	S605
4	Speaker - RF Door Tweeter
5	C304

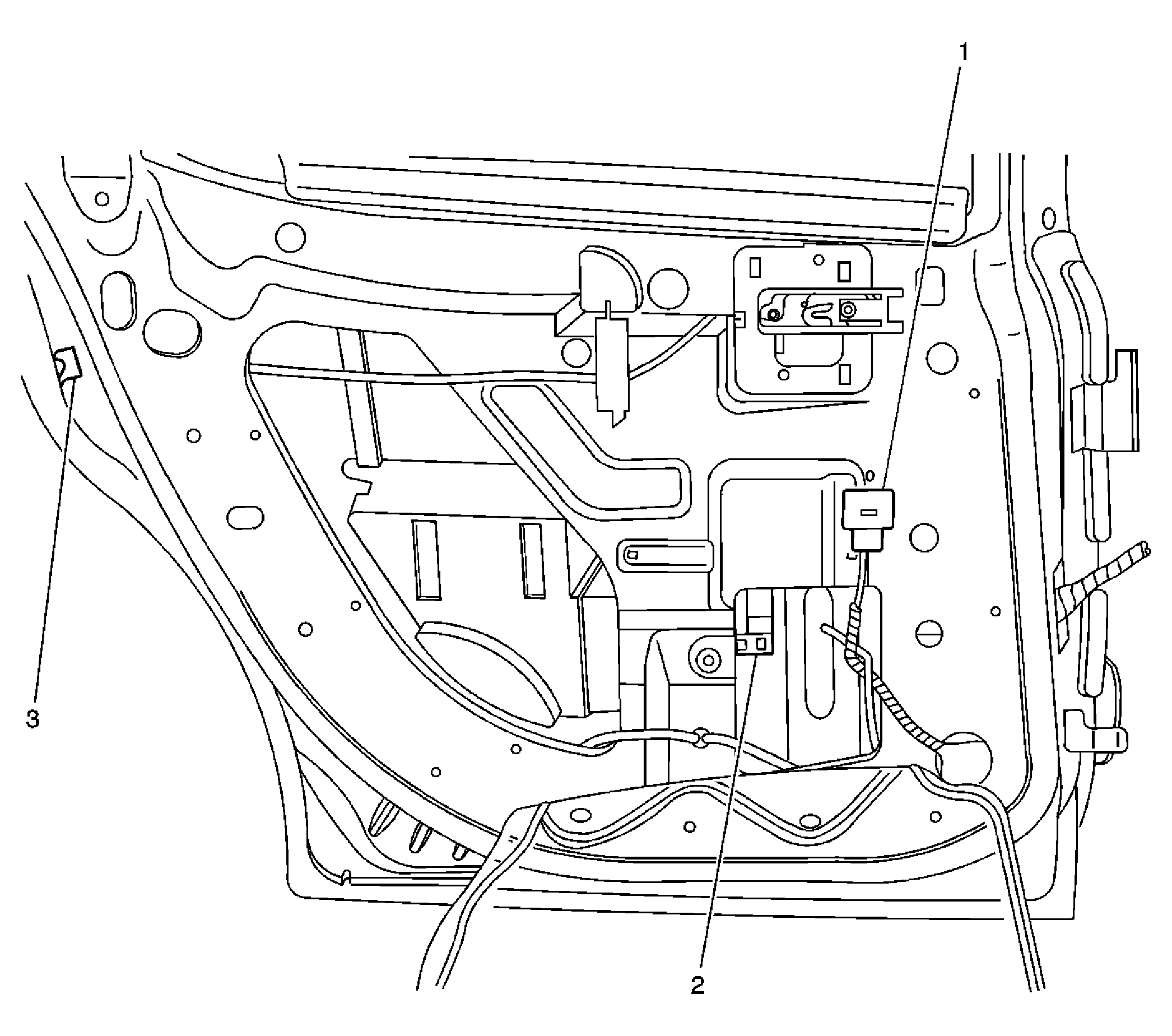

Fig 7: Left Rear Passenger Side Door Component Views

Courtesy of GENERAL MOTORS CORP.

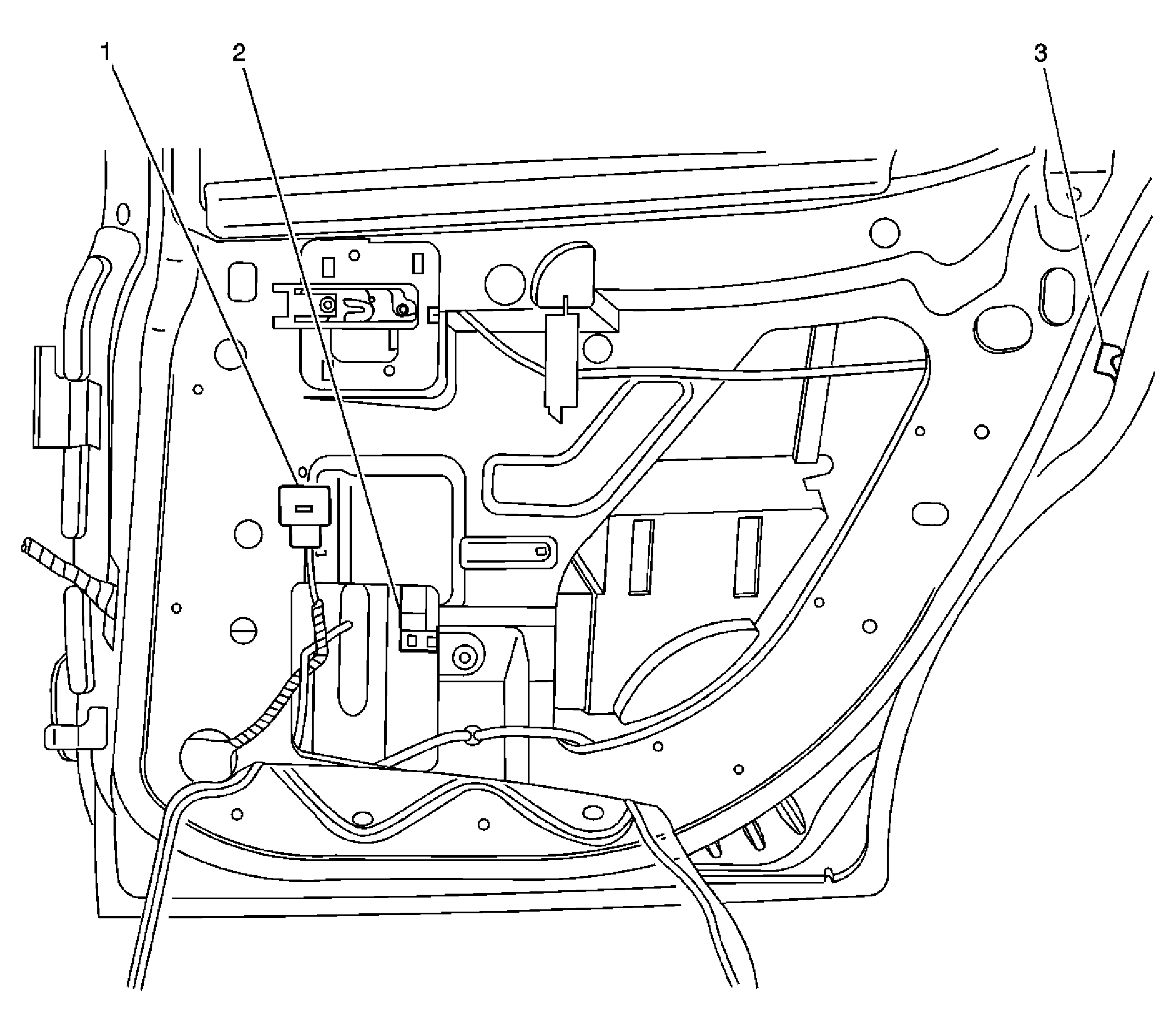

Fig 8: Right Rear Passenger Side Door Component Views

Courtesy of GENERAL MOTORS CORP.
