Wiper/Washer Component Views

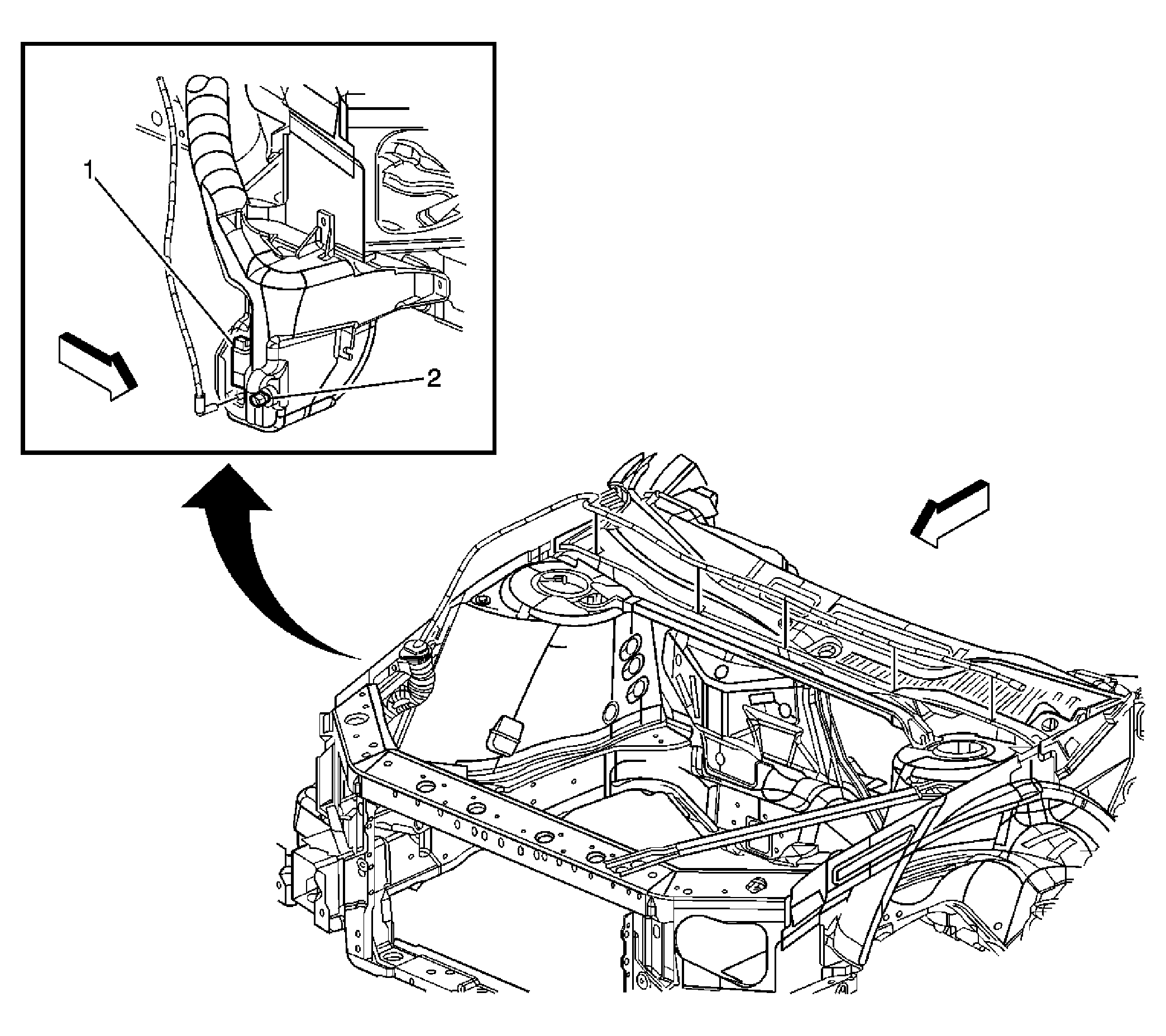

Fig 1: Right Front Of The Engine Compartment Component Views
GM1206511Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Washer Fluid Pump
2 Windshield Washer Fluid Level Switch

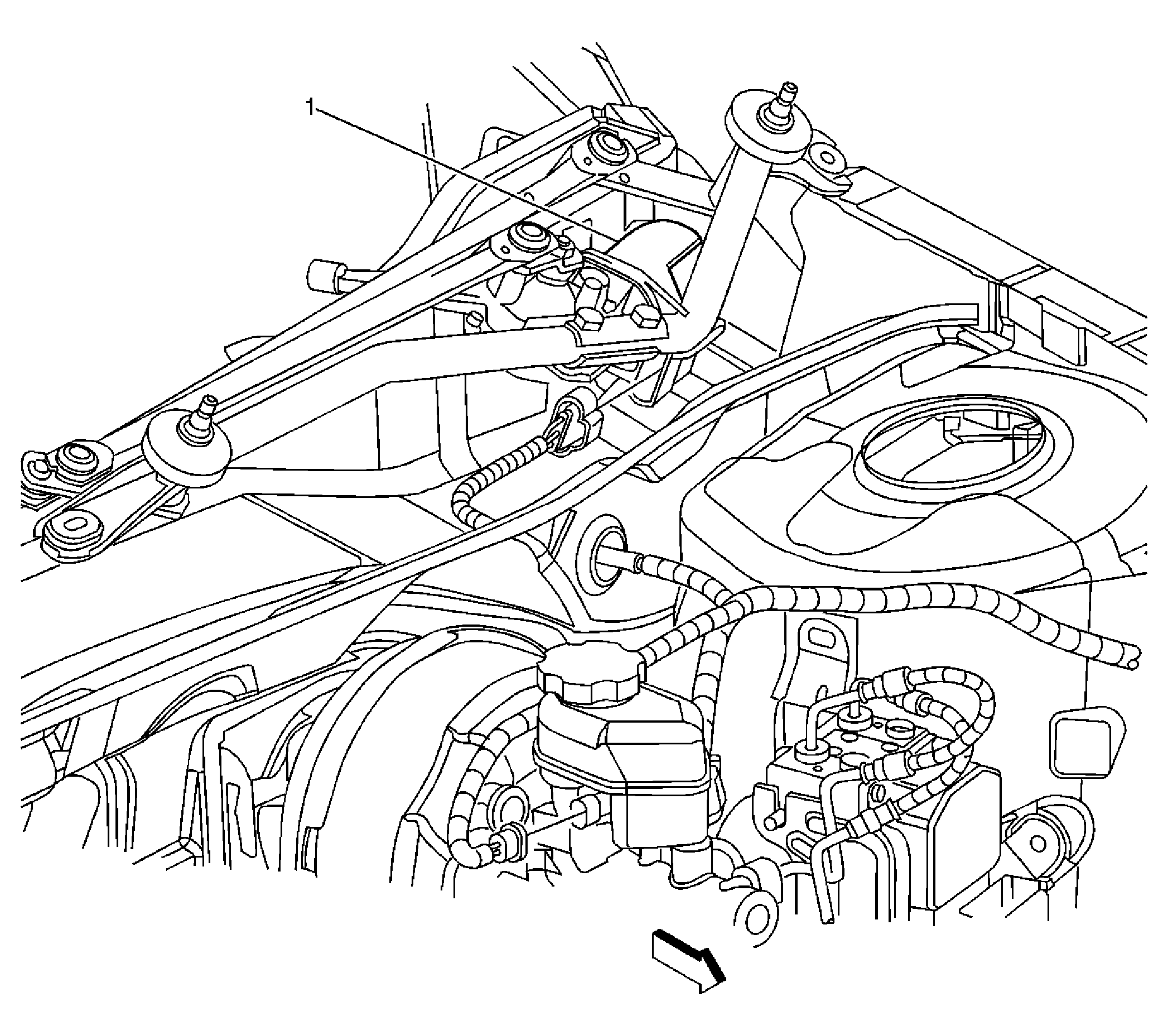

Fig 2: Left Rear Of The Engine Compartment Component Views
GM1206222Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor
Fig 3: I/P Components
GM1758089Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Multifunction Turn Signal Lever
2 TAP Shift Switch - Left
3 Hazard Warning Switch
4 Instrument Panel Cluster (IPC)
5 TAP Shift Switch - Right
6 Windshield Wiper/Washer Switch
7 Ignition Switch
8 Driver Information Center (DIC)
9 Radio
10 HVAC Control Module
11 Heated Seat Switch - Front Passenger
12 Rear Defogger Switch
13 Heated Seat Switch - Driver
14 Steering Wheel Controls - Right
15 Inflatable Restraint Steering Wheel Module
16 Tilt Steering Wheel Lever
17 Steering Wheel Controls - Left
18 Interior Lamp Switch
