Ambient Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

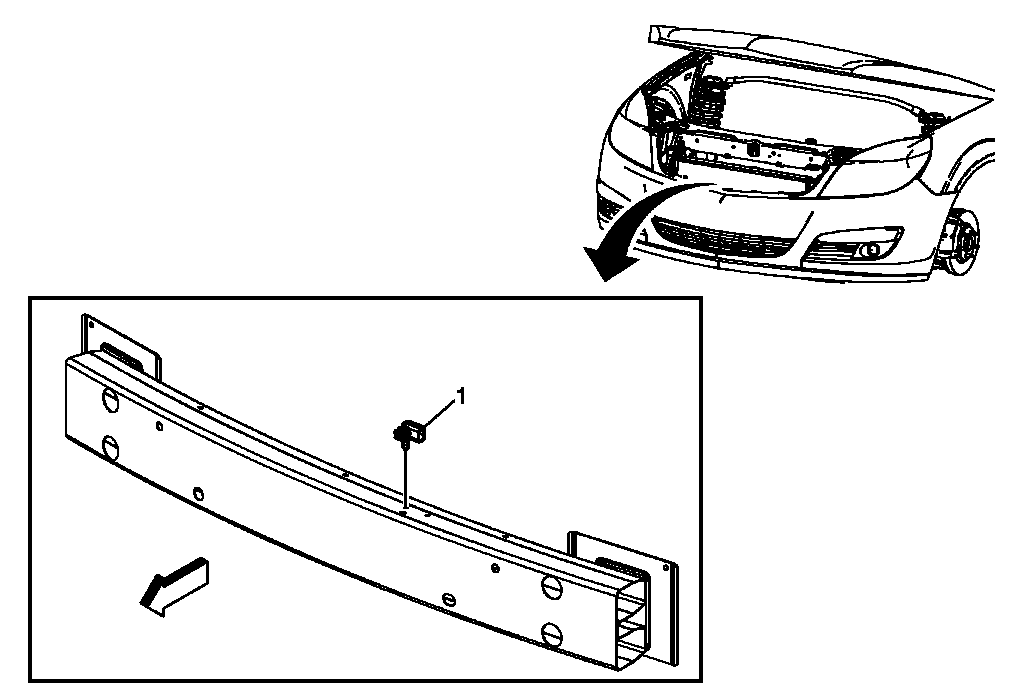

Fig 1: View Of Ambient Air Temperature Gage Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the upper center grille. Refer to Radiator Center Grille Replacement (Lower) , Radiator Center Grille Replacement (Upper) .
1	Ambient Air Temperature Sensor Procedure Disconnect the electrical connector. Unsnap the temperature sensor from the front impact bar.

Callout

Component Name

Preliminary Procedure
Remove the upper center grille. Refer to Radiator Center Grille Replacement (Lower) , Radiator Center Grille Replacement (Upper) .

Ambient Air Temperature Sensor

Procedure

Disconnect the electrical connector.
Unsnap the temperature sensor from the front impact bar.
