Installation Procedure

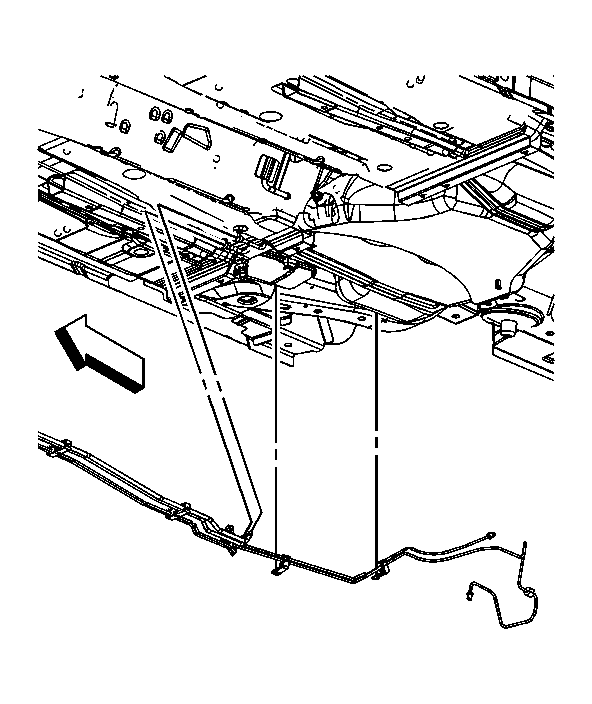

    Fig 1: View Of Fuel Feed Pipe
    GM1578470Courtesy of GENERAL MOTORS CORP.
  1. Position the fuel feed pipe to the vehicle.
  2. With the rear of the pipe positioned slightly rearward and down, raise the front of the pipe into position.
  3. Install the remainder of the pipe into position.
  4. Install the fuel feed pipe to the pipe retainers.
  5. Secure the pipe retainers to the vehicle underbody.
  6. Connect the fuel feed pipe quick connect fitting at the fuel tank. Refer to Plastic Collar Quick Connect Fitting Service .
  7. Lower the vehicle.
  8. Remove the caps or plugs from the fuel pipe and the fuel rail.
  9. Connect the fuel feed pipe to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  11. Inspect for fuel leaks using the following procedure:
    1. Turn ON the ignition, with the engine OFF for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition, with the engine OFF.
    4. Inspect for fuel leaks.
  12. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
