Installation Procedure

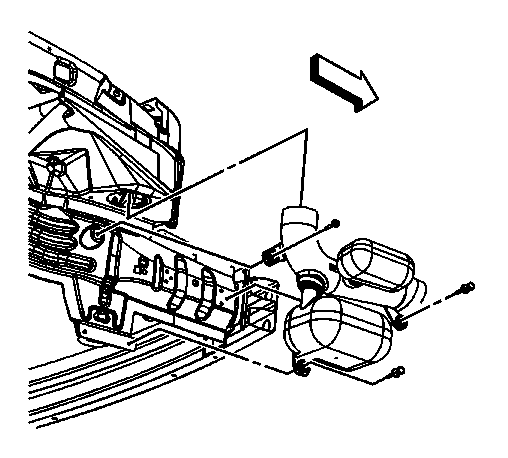

    Fig 1: View Of Air Cleaner Inlet Duct
    GM1793877Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner inlet duct.
    2. NOTE: Refer to Fastener Notice .
  2. Install the air cleaner inlet duct bolt and push pin retainers.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Install the right front fender liner. Refer to Front Fender Liner Replacement .
  4. Install the right front tire and wheel. Refer to Tire and Wheel Removal and Installation .
