Installation Procedure

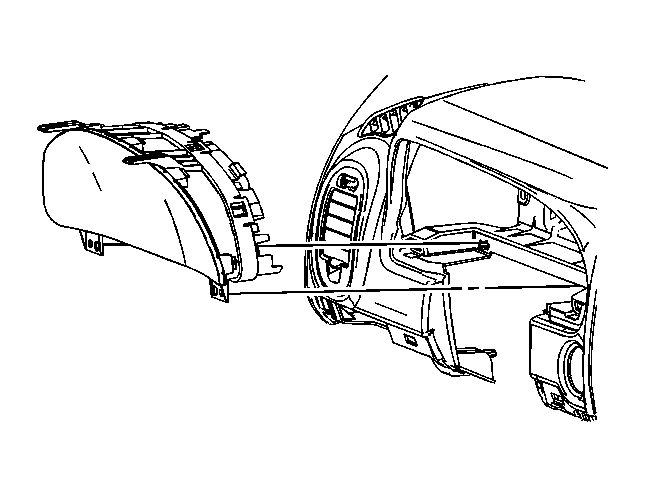

    Fig 1: View Of I/P Cluster
    GM1207644Courtesy of GENERAL MOTORS CORP.
  1. Install the I/P cluster wire harness connector.
  2. Install the I/P cluster.
    3. NOTE: Refer to Fastener Notice .
  3. Tighten the I/P cluster screws.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the I/P cluster trim plate bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
  5. Refer to Control Module References for programming and setup information.
