Seat Belt Component Views

Fig 1: Driver Seat Component View
GM1405602Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Driver Cushion (KA1)
2 Seat Belt Switch - Left
3 Heated Seat Element - Driver Back (KA1)
4 Seat Adjuster Switch - Driver (AG1/ASN)
5 Heated Seat Switch - Driver (KA1)

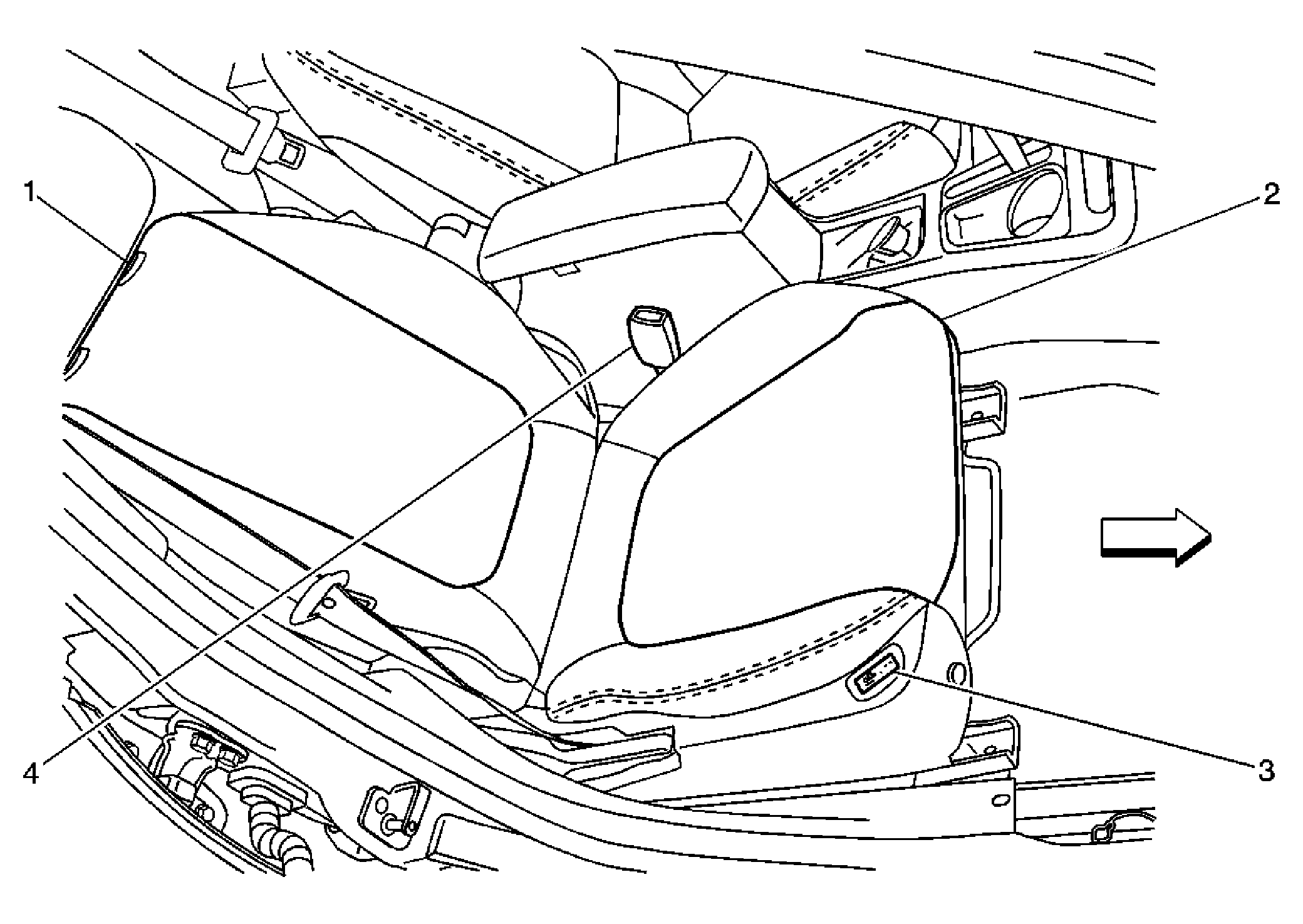

Fig 2: Passenger Seat Component View
GM1708026Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Passenger Back (KA1)
2 Heated Seat Element - Passenger Cushion (KA1)
3 Heated Seat Switch - Passenger (KA1)
4 Seat Belt Switch - Right
