WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

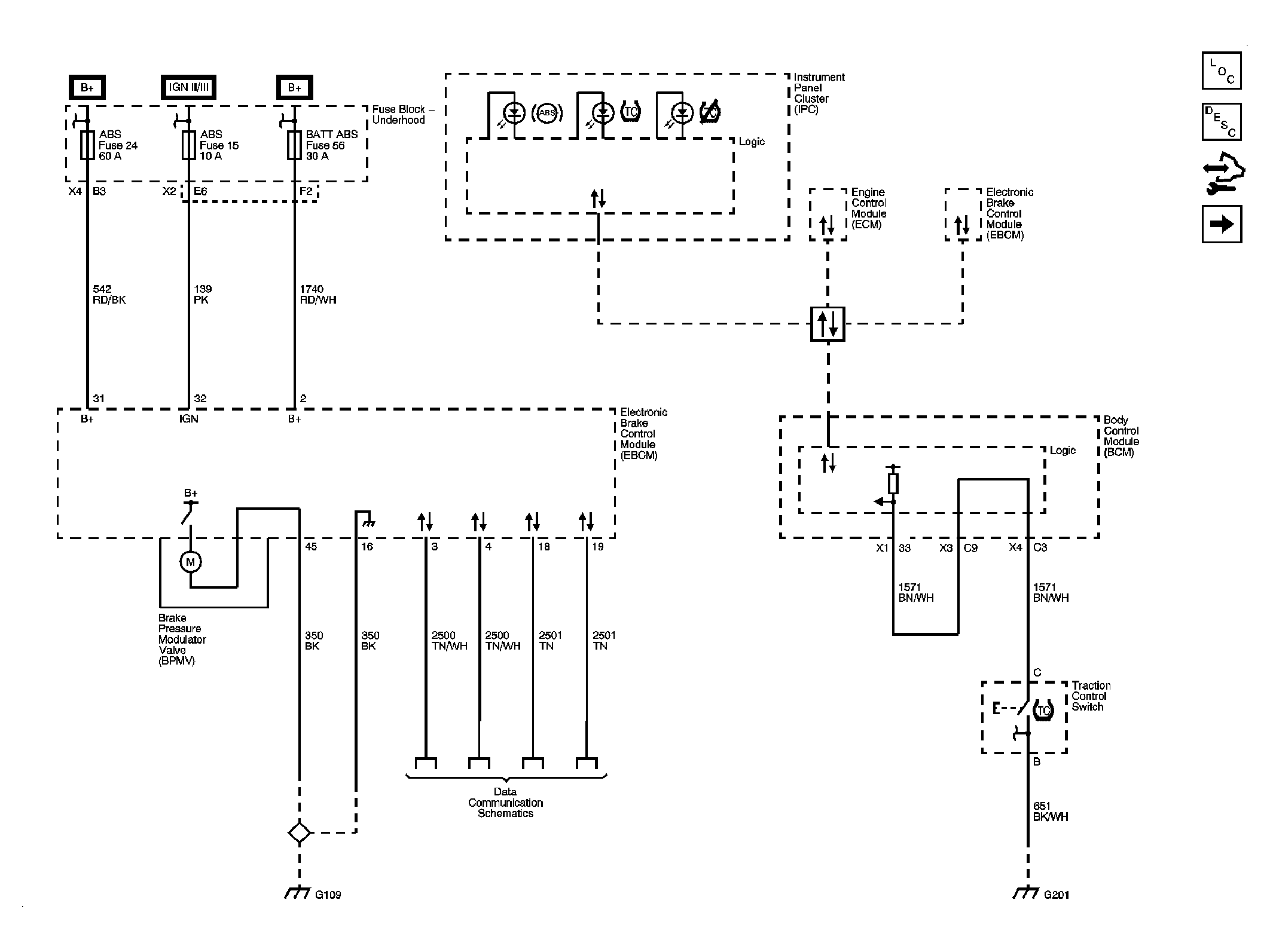

Fig 1: Power, Ground, Traction Control Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 2: Brake Pedal Position Sensor, Data Link Communications, and Traction Control Schematic
