Radio Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

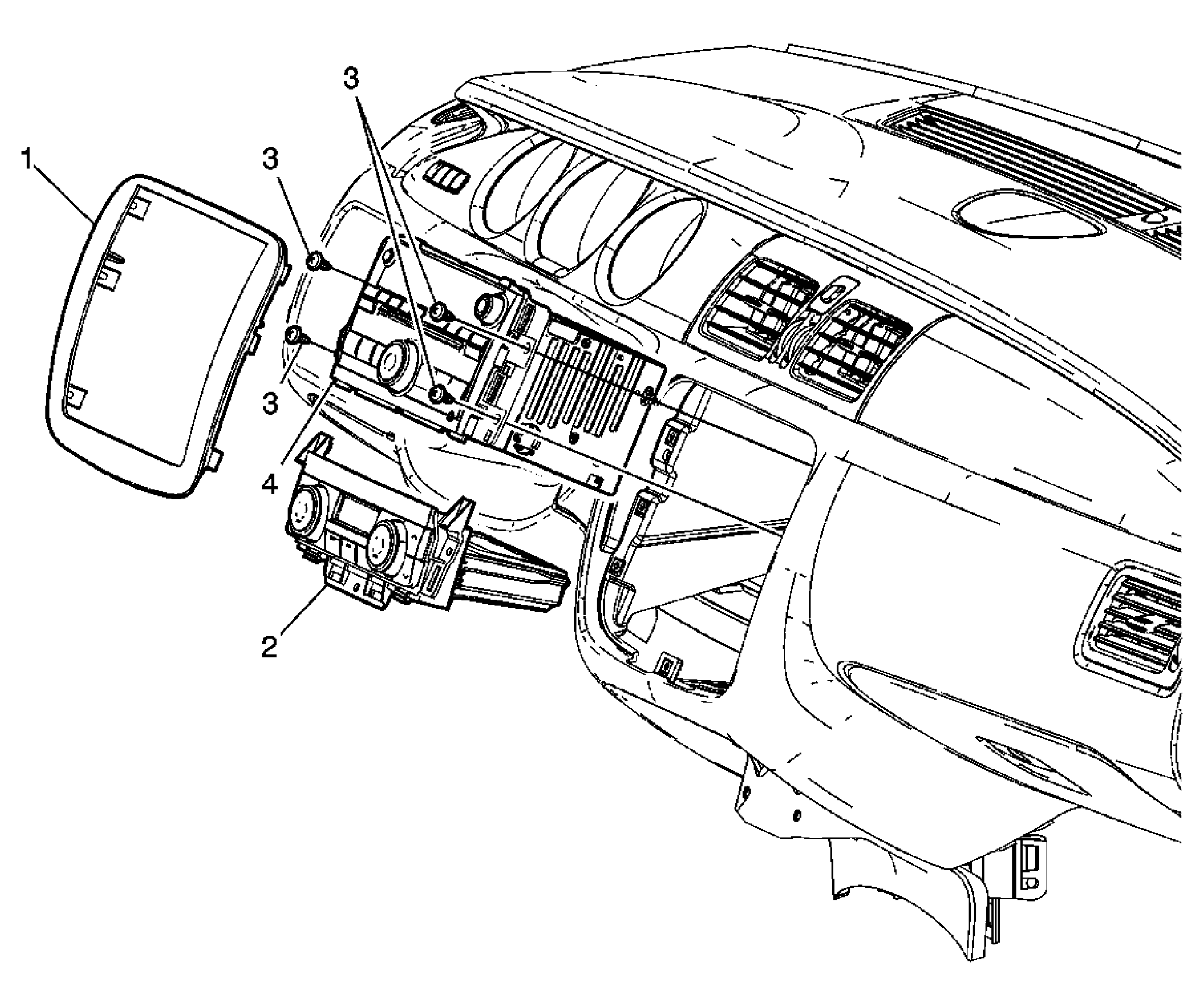

Fig 1: Identifying Radio

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Center Trim Plate Refer to Instrument Panel Center Trim Panel Replacement .
2	Heating and Air Conditioning Control Assembly Refer to HVAC Control Module Replacement .
3	Radio Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
4	Radio Assembly Tip: Disconnect the electrical connector. Reprogram the radio after replacement. Refer to Control Module References .
