Installation Procedure

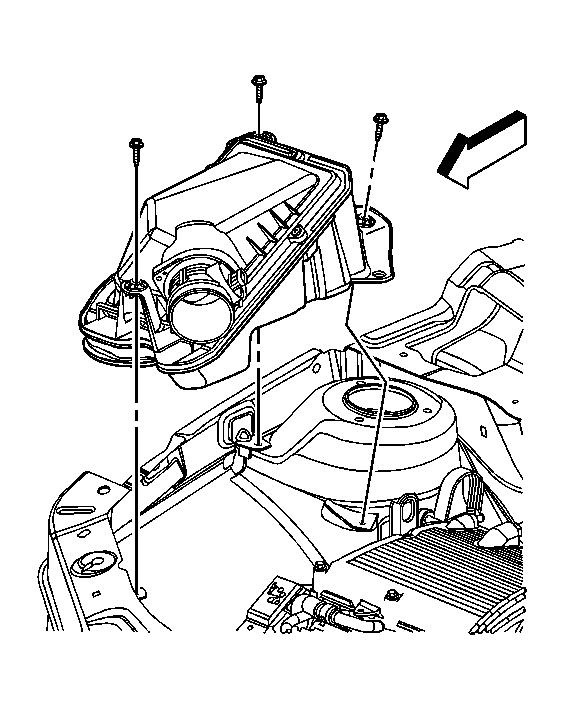

    Fig 1: View Of Air Cleaner
    GM1578484Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the air cleaner.
  2. Install the air cleaner bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

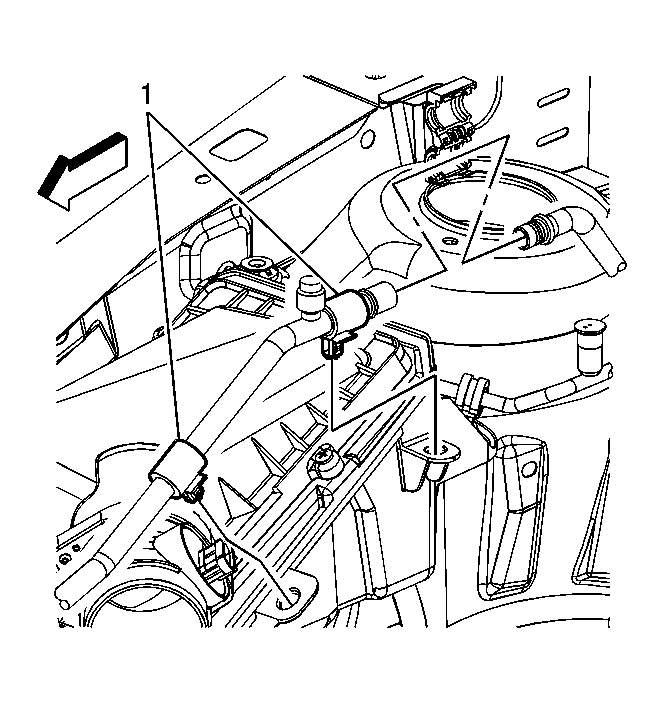

    3. Fig 2: Identifying A/C Line Clips
    GM1683637Courtesy of GENERAL MOTORS CORP.
  3. Install the A/C line clips (1) to the air cleaner tabs.

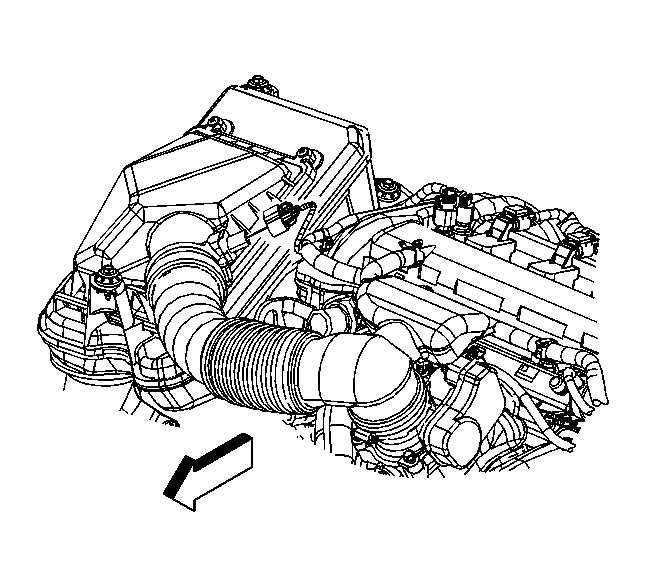

    4. Fig 3: Identifying MAF/IAT sensor
    GM1578457Courtesy of GENERAL MOTORS CORP.
  4. Install the air cleaner outlet. Refer to Air Cleaner Outlet Resonator Replacement .
  5. Connect the MAF/IAT sensor electrical connector.
