Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement

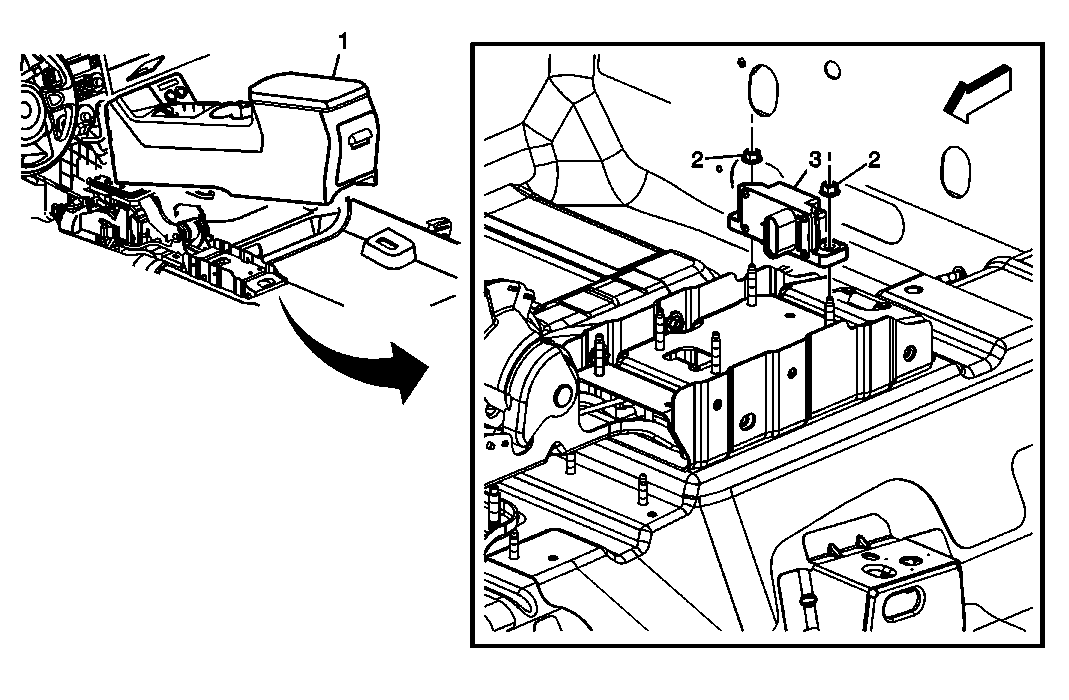

Fig 1: Locating Yaw Sensor Assembly

Courtesy of GENERAL MOTORS CORP.

Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement

Callout	Component Name
1	Front Floor Console Refer to Console Replacement .
2	Vehicle Yaw Sensor Nuts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten:  10 N.m (89 lb in)
3	Vehicle Yaw Sensor Assembly Tip:  Disconnect the electrical connector.
