Power Mirror Switch Replacement

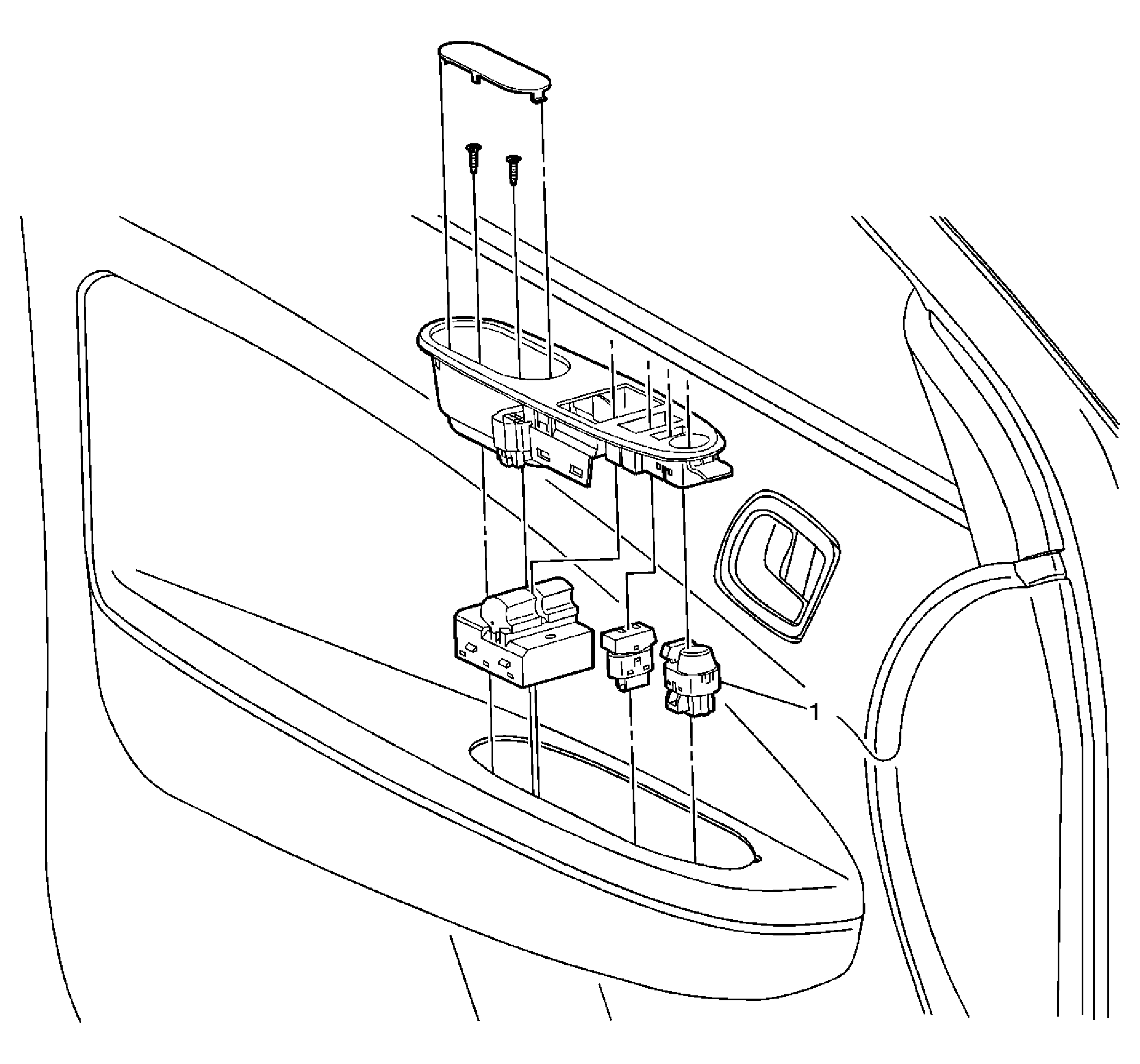

Fig 1: Power Mirror Switch Replacement
GM1550812Courtesy of GENERAL MOTORS CORP.
Power Mirror Switch Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Preliminary Procedures: Remove the armrest pull cup. Refer to Armrest Pull Cup Replacement .
1 Power Mirror Switch
Tip:  Disconnect the electrical connector.
