Installation Procedure

Lubricate a new O-ring with DEXRON III transmission fluid.
Install the new O-ring.

Fig 1: Identifying VSS Retainer

GM12407

Courtesy of GENERAL MOTORS CORP.

Install the VSS assembly.
Install the VSS retainer.

NOTE: Refer to FASTENER NOTICE .

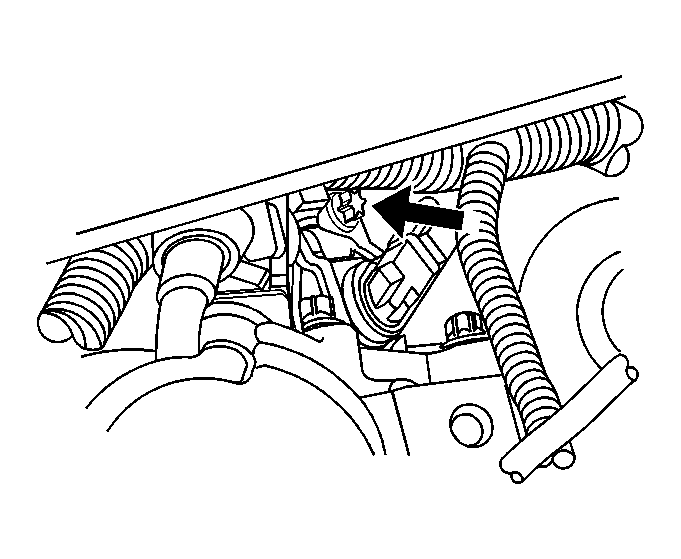

Fig 2: View Of VSS Retainer Bolt

GM623141

Courtesy of GENERAL MOTORS CORP.

Install the VSS retainer bolt.
Tighten: Tighten the bolt to 12 N.m (8 lb ft).

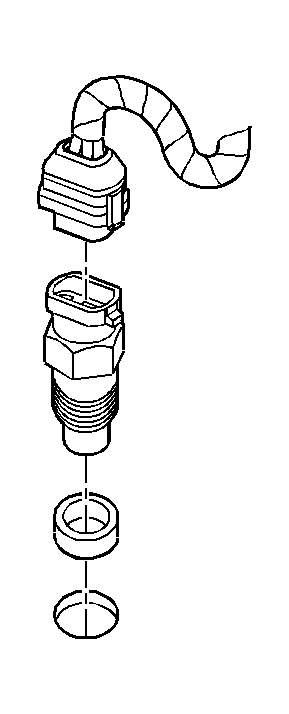

Fig 3: Connecting VSS Connector To VSS

GM12406

Courtesy of GENERAL MOTORS CORP.

Connect the VSS connector to the VSS.
Lower the vehicle.
