Installation Procedure

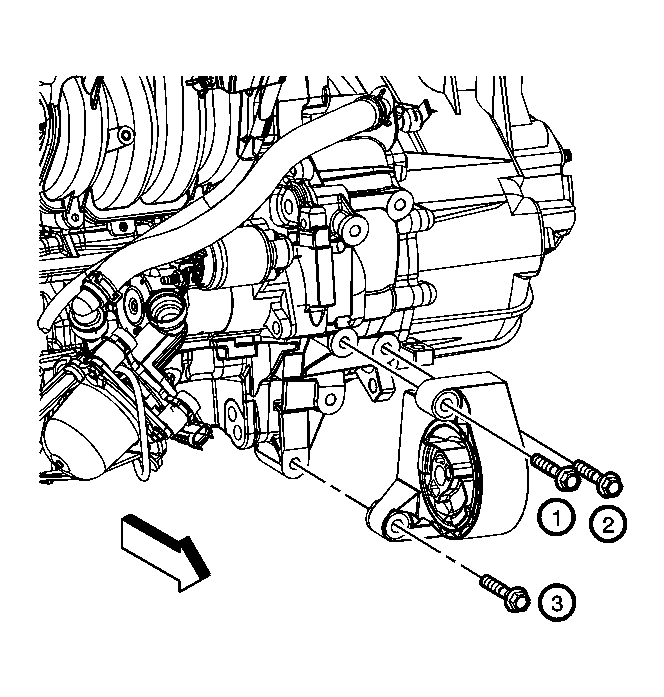

    Fig 1: View Of Front Transaxle Mount
    GM1497743Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The transaxle bolts must be torqued in a mandatory sequence as shown.
    NOTE: Refer to Fastener Notice .
  1. Install the front transaxle mount and transaxle bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

    2. Fig 2: View Of Front Transaxle Mount Through Bolt
    GM1497621Courtesy of GENERAL MOTORS CORP.
  2. Hand start the front transaxle mount through bolt.
    3. IMPORTANT: The front and rear transaxle mounts must be allowed to settle with the through bolts loosened.
  3. Loosen the rear transaxle mount through bolt.
  4. Tighten the transaxle mount through bolts in the following order:

    Tighten:

    1. Tighten the rear bolt to 100 N.m (74 lb ft).
    2. Tighten the front bolt to 100 N.m (74 lb ft).

  5. Lower the vehicle.
