Driver Information Display Switch Replacement

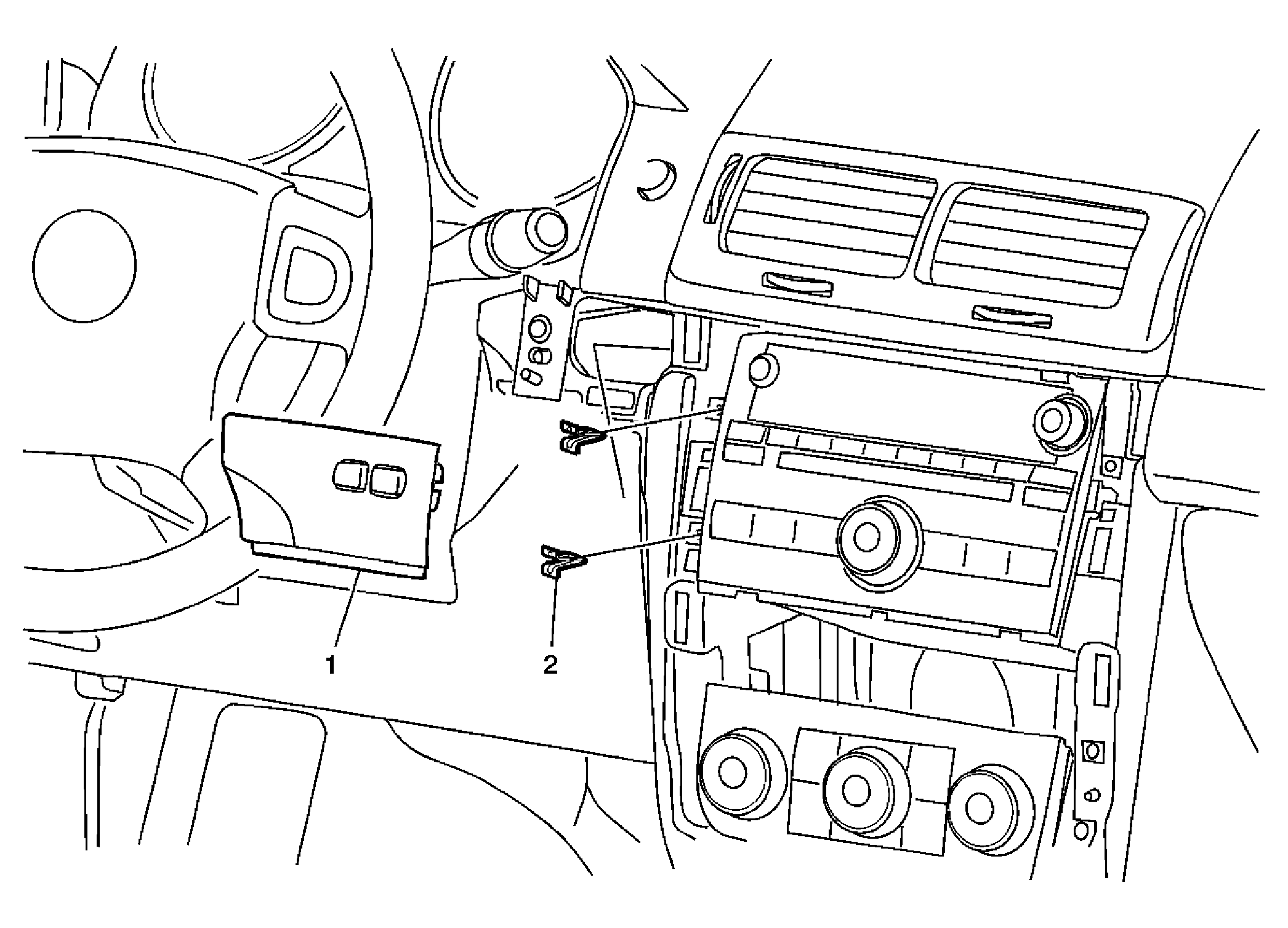

Fig 1: Driver Information Center Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Preliminary Procedures Remove the steering column opening filler assembly. Refer to Steering Column Opening Filler Replacement . Tilt the steering wheel up.
1	Instrument Panel Trim Plate Tip: Release the left-hand instrument panel (I/P) trim plate assembly by pulling away from the I/P retainer. Disconnect the electrical connector.
2	Instrument Panel Trim Plate Clip

Callout

Component Name

NOTE: Refer to Fastener Notice .

Preliminary Procedures

Remove the steering column opening filler assembly. Refer to Steering Column Opening Filler Replacement .
Tilt the steering wheel up.

Instrument Panel Trim Plate
Tip:

Release the left-hand instrument panel (I/P) trim plate assembly by pulling away from the I/P retainer.
Disconnect the electrical connector.

Instrument Panel Trim Plate Clip
