Removal Procedure

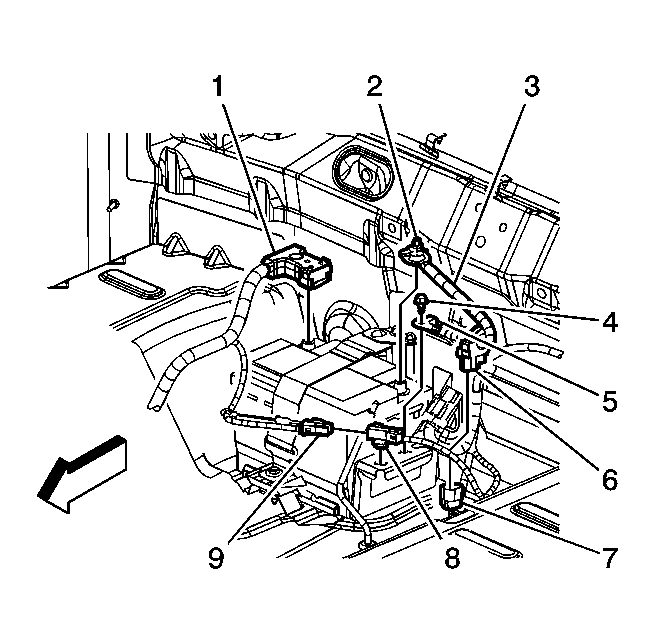

    Fig 1: View Of Battery Connections
    GM1656237Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Open the positive battery cable cover.
  3. Loosen the positive battery cable bolt.
  4. Remove the positive battery cable (1) from the battery.
    5. Fig 2: View Of Battery Vent Tube At Battery
    GM1656246Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery vent tube from the battery.
    6. Fig 3: Battery Tray
    GM1548332Courtesy of GENERAL MOTORS CORP.
  6. Remove the battery retainer bolt (1).
  7. Remove the battery strap (2) and retainer (3).
    8. IMPORTANT: Do not tip the battery more than 40 degrees during removal.
  8. Remove the battery (4).
