Power Steering Schematics

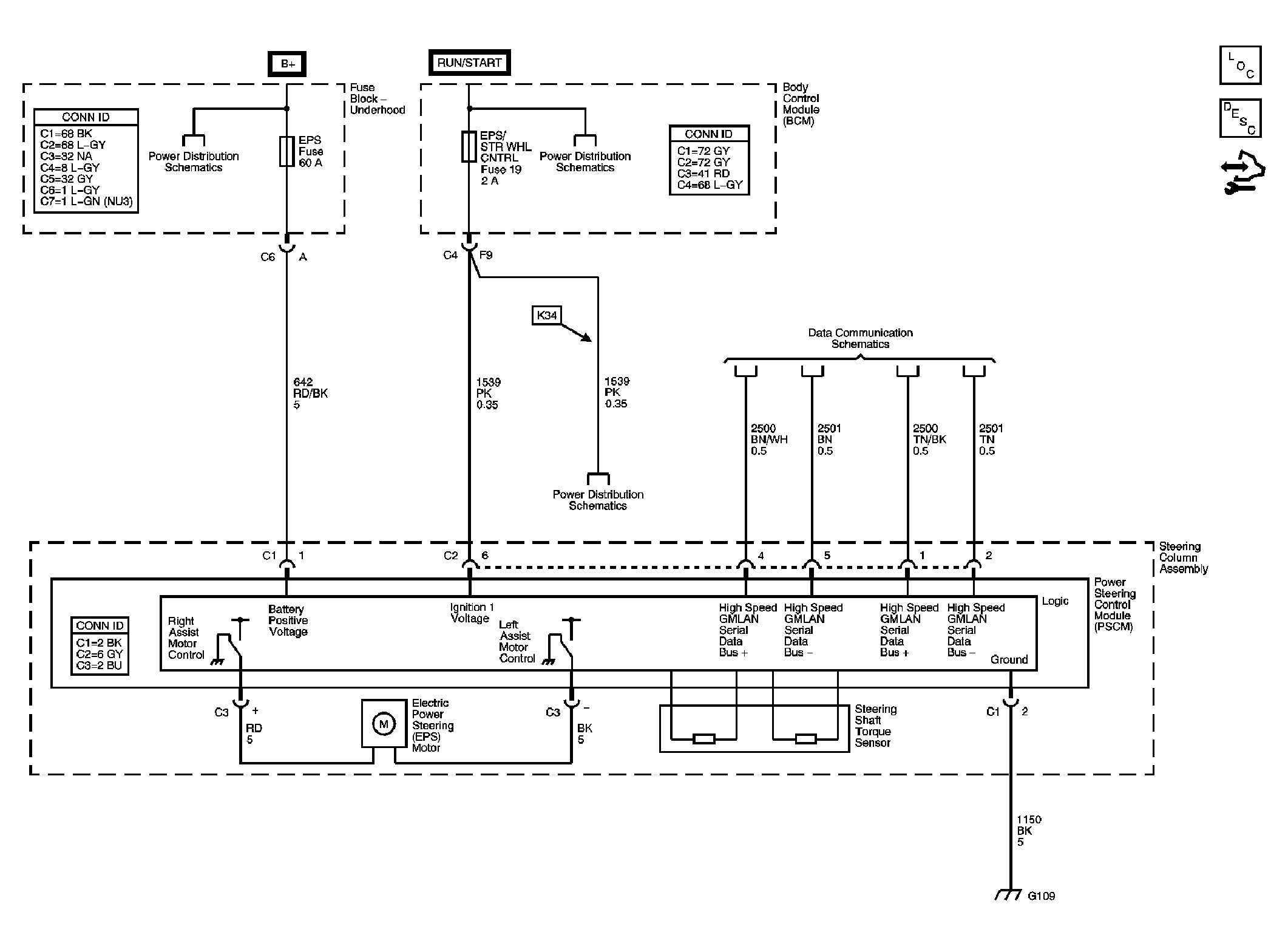

Fig 1: Power Steering Schematics

GM1784170

Courtesy of GENERAL MOTORS CORP.
