Brake Pedal Position Sensor Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Brake system does not use a brake switch, stoplight switch or brakelight switch. System uses a Brake Pedal Position Sensor to control these functions.

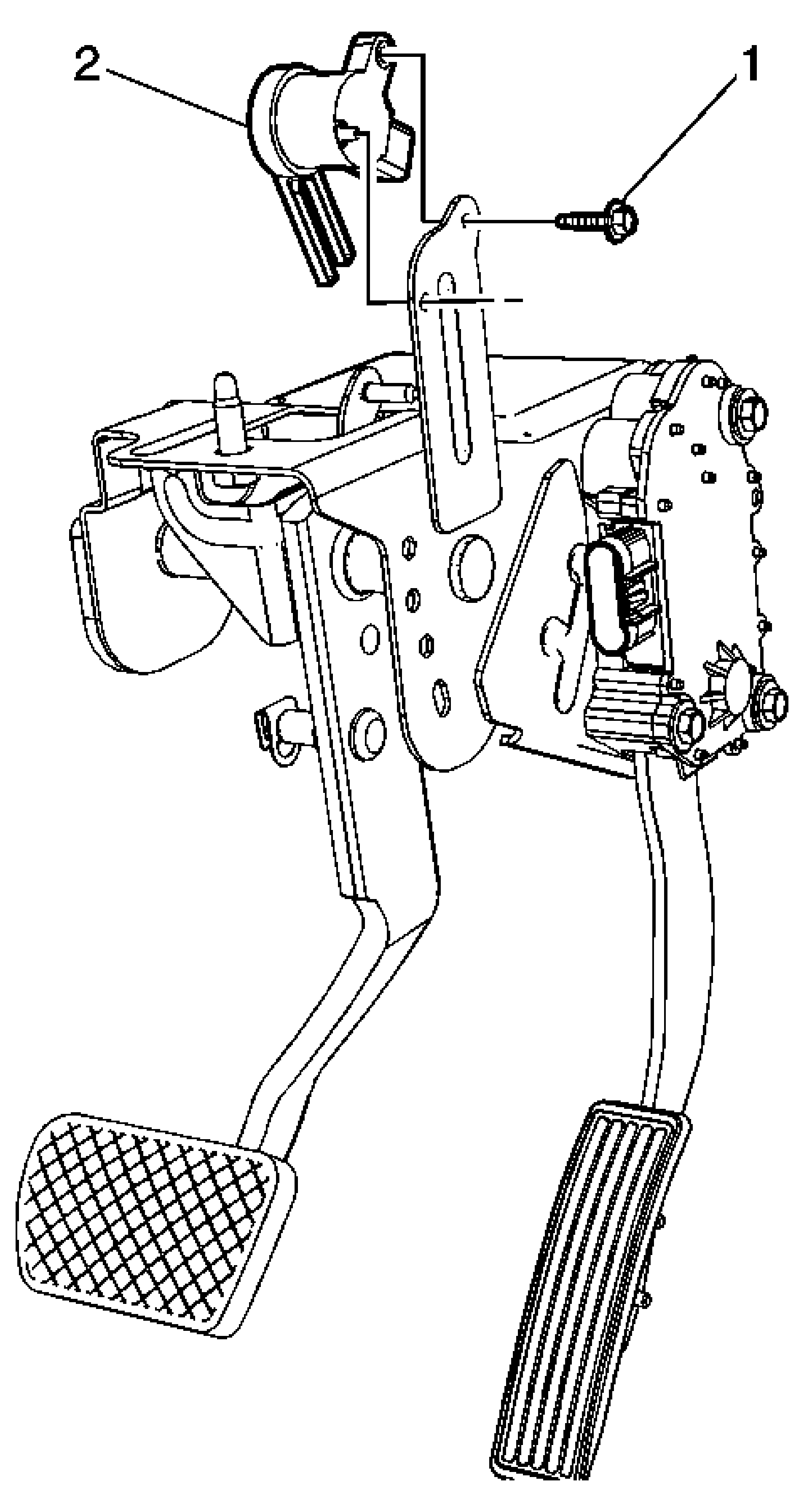

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the steering column opening filler. Refer to Fastener Tightening Specifications . |
|
| 1 | Brake Pedal Position Sensor Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Brake Pedal Position Sensor Procedure: Disconnect the electrical connection. |
