Installation Procedure

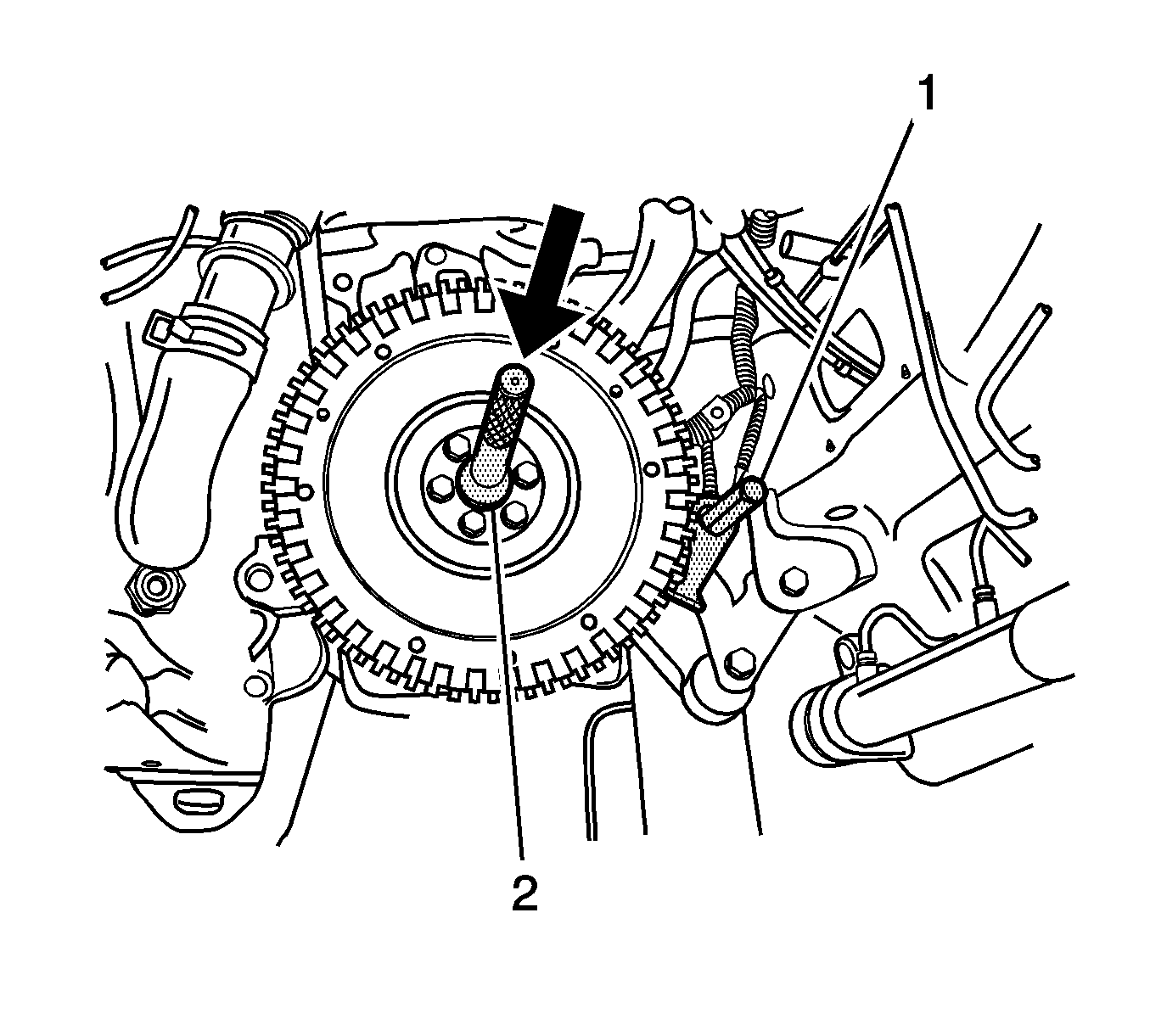

    Fig 1: 09925-98210, J 35271 & Input Shaft Bearing
    GM1375554Courtesy of GENERAL MOTORS CORP.
  1. Install the input shaft bearing using the 09925-98210  (2) and J 35271  (1). See Special Tools .
  2. Install the pressure plate. and the clutch disc. Refer to Clutch, Pressure Plate, and Pilot Bearing Replacement .
  3. Remove the J 35271  (1) from the flywheel. See Special Tools .
  4. Install the transaxle to the vehicle. Refer to Transmission Replacement for the D16.
