SIR Connector End Views

WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
Identifying Driver Seat Belt Pretensioner Connector

GM334446Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12253
  • YEL
Pin Wire Color Function
1 YE Left Side Pretensioner Low
2 YE/BK Left Side Pretensioner High
Identifying Driver Seat Belt Switch Connector

GM740777Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12257
  • WHT
Pin Wire Color Function
1 WH/BK Ground
2 GN Driver Seat Belt Switch Signal
3 GN/YE Seat Belt Indicator Control
Identifying Driver Seat Position Sensor Connector

GM334441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11864
  • WHT
Pin Wire Color Function
1 GN/WH Driver Seat Position High
2 RD/BK Driver Seat Position Low
Identifying Passenger Seat Belt Pretensioner Connector

GM334446Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12253
  • YEL
Pin Wire Color Function
1 YE/BK Passenger Pretensioner High
2 YE Passenger Pretensioner Low
Identifying Passenger Seat Belt Switch Connector

GM334441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11950
  • WHT
Pin Wire Color Function
1 WH/BK Ground
2 BK Seat Belt Warning Lamp Signal Circuit

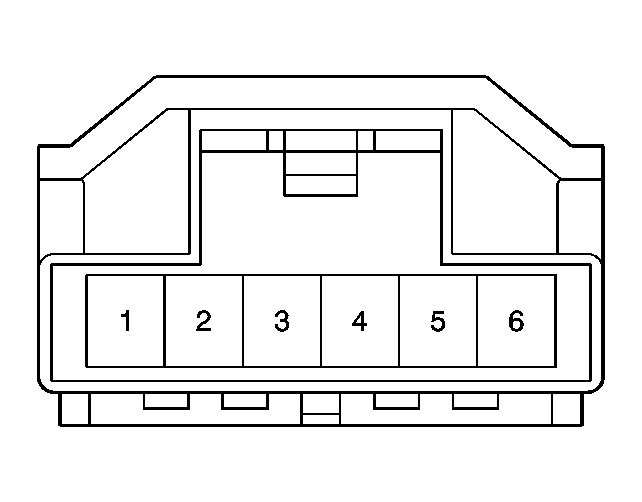

Identifying Passenger Seat Belt Warning Lamp Connector

GM1489465Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11986
  • WHT
Pin Wire Color Function
1 RD/WH Warning Lamp Feed Circuit
2 - Not Used
3 RD/WH Warning Lamp Control Circuit
Identifying Passenger Seat Occupant Detection Sensor Connector

GM334441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11950
  • WHT
Pin Wire Color Function
1 BU/WH Seat Belt Warning Lamp Control Circuit
2 BK Seat Belt Warning Lamp Signal Circuit
Identifying SIR Driver Inflatable Module C1 Connector

GM820231Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12138
  • ORN
Pin Wire Color Function
1 YE/BK Driver Side High
2 YE Driver Side Low
Identifying SIR Driver Inflatable Module C2 Connector

GM820231Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12138
  • BLK
Pin Wire Color Function
1 YE/BK Driver Side High
2 YE/PU Driver Side Low
Identifying SIR Instrument Panel Module Connector

GM820245Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12160
  • YEL
Pin Wire Color Function
1 YEL/RED Passenger Side High
2 YE/GN Passenger Side Low
3 YE/GY Redundant Passenger Side High
4 YE/PK Redundant Passenger Side Low
Identifying SIR Left Front Discriminating Sensor Connector

GM334449Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11898
  • YEL
Pin Wire Color Function
1 BN Driver Sensor Low
2 WH/RD Driver Sensor High
Identifying SIR LH Side Impact Module Connector

GM334441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11864
  • YEL
Pin Wire Color Function
1 YE/RD Driver Seat High
2 YE/GN Driver Seat Low
Identifying SIR LH Side Impact Sensor Connector

GM820250Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12225
  • YEL
Pin Wire Color Function
1 PK/BU VUPL
2 LT GN/BK SSL High
3 BU/WH SSL Low
4 GY/BU ESL
Identifying SIR Right Front Discriminating Sensor Connector

GM334449Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11898
  • YEL
Pin Wire Color Function
1 BN/WH Passenger Sensor Low
2 BK/WH Passenger Sensor High
Identifying SIR RH Side Impact Inflator Module Connector

GM334441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-11864
  • YEL
Pin Wire Color Function
1 YE/RD Passenger Seat High
2 YE/GN Passenger Seat Low
Identifying SIR RH Side Impact Sensor Connector

GM820250Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12225
  • YEL
Pin Wire Color Function
1 PK VUPR
2 LT GN SSR High
3 BU/YE SSR Low
4 GY ESR

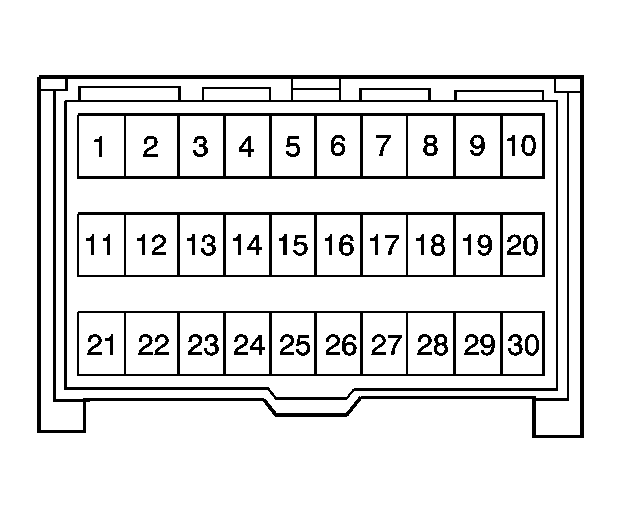

Identifying SIR Sensing and Diagnostic Module (SDM) C1 Connector

GM1619220Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12391
  • YEL
Pin Wire Color Function
1 YE/GY Passenger Side IP Module High Signal
2 YE/PK Passenger Side IP Module Low Signal
3 YE/GN Passenger Side IP Module Low Signal
4 YE/RD Passenger Side IP Module High Signal
5 YE/BK Driver Side IP Module High Signal
6 YE Driver Side IP Module Low Signal
7 YE/OG Driver Side IP Module High Signal
8 YE/PU Driver Side IP Module Low Signal
9 - Not Used
10 - Not Used
11 - Not Used
12 - Not Used
13 BU/WH Passenger Presence Sensor Signal
14 BK/YE Airbag Indicator Signal
15 PK/BK Diagnostic Signal Request
16 BU/RB Serial Data Line
17 PK Passenger Seat Belt/Air Bag Indicator ON/OFF Signal
18 - Not Used
19 - Not Used
20 - Not Used
21 BK/OG Ignition Positive Voltage
22 YE Fuel Pump Cutoff
23 GY Passenger Seat Belt/Air Bag Indicator ON/OFF Signal
24 BU OnStar Data Signal
25 WH/BK Ground
26 WH/BK Ground
27 BN/WH Passenger Right Front Discriminating Low Sensor Signal
28 BN Passenger Left Front Discriminating Low Sensor Signal
29 BK/WH Passenger Right Front Discriminating High Sensor Signal
30 28 Passenger Left Front Discriminating High Sensor Signal

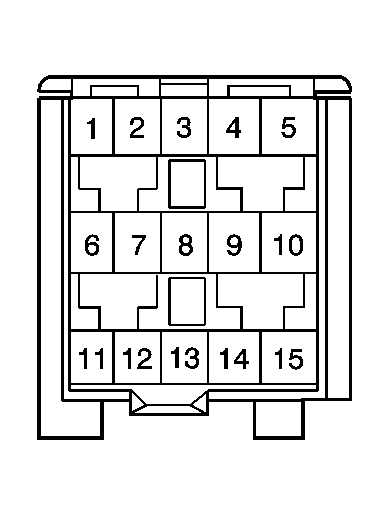

Identifying SIR Sensing and Diagnostic Module (SDM) C2 Connector

GM1619221Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12449
  • YEL
Pin Wire Color Function
1 YE Left Seat Belt Pretensioner Low Signal
2 YE/BK Left Seat Belt Pretensioner High Signal
3 - Not Used
4 - Not Used
5 - Not Used
6 L-GN/BK Left Roof Rail Module Drivers Seat Low Signal
7 PK/BU Left Roof Rail Module Drivers Seat High Signal
8 PK Left Side Impact Sensor Drivers Seat Signal
9 YE/RD Left Side Impact Module Drivers Seat High Signal
10 YE/GN Left Side Impact Module Drivers Seat Low Signal
11 GN Driver Seat Belt Signal
12 RD Driver Seat Belt Signal
13 RD/BK Driver Seat Belt Signal
14 GN/WH Driver Seat Belt Signal
15 GY Left Side Impact Sensor Drivers Seat Signal

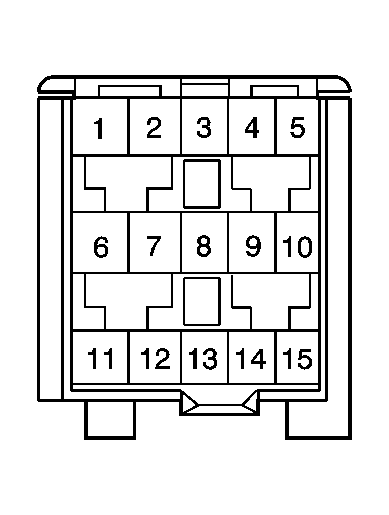

Identifying SIR Sensing and Diagnostic Module (SDM) C3 Connector

GM1619223Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 90980-12450
  • YEL
Pin Wire Color Function
1 - Not Used
2 - Not Used
3 - Not Used
4 YE/BK Right Front Pretensioner High
5 YE Right Front Pretensioner Low
6 YE/GN Passenger Side Impact Module Seat Low Signal
7 YE/RD Passenger Side Impact Module Seat High Signal
8 PK Right Side Impact Sensor Signal
9 GY Right Roof Rail Module Low Signal
10 BU/YE Right Roof Rail Module High Signal
11 L-GN Right Side Impact Sensor Signal
12 BU Passenger Presence Sensor Communication Signal
13 BU/WH Passenger Presence Sensor Communication Signal
14 - Not Used
15 - Not Used
Identifying Inflatable Restraint Steering Wheel Module Coil Connector

GM1549394Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9123-5561-30
  • 12-Way (BK)
Pin Wire Color Circuit No. Function
1 BK/YE 28 Horn Relay Output-Coil
2 BN/WH 32 I/P dimmer Supply Voltage
3 BN 1796 Steering Wheel Controls Signal
4 BK/YE 1750 Ground
5 BN/WH 151 Ground
6 BK/YE 28 Horn Relay Control
7 GN 3020 Steering Wheel Module - Stage 1 Low Control
8 WH 3021 Steering Wheel Module - Stage 1 High Control
9-12 - - Not Used
