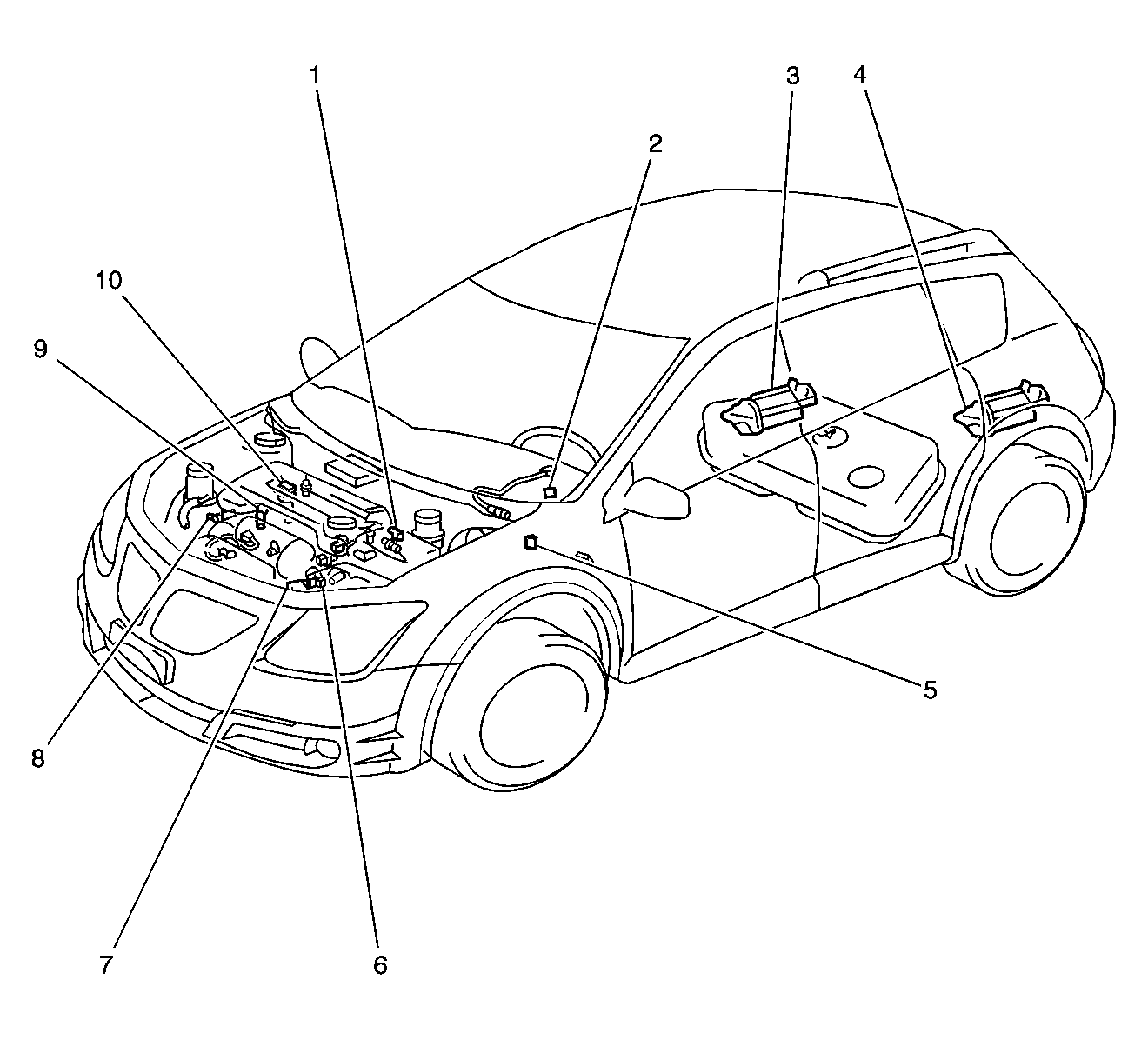

PCM Controlled Devices Component View
| Callout | Component Name |
|---|---|
| 1 | EVAP Purge Solenoid |
| 2 | Malfunction Indicator Lamp (MIL) |
| 3 | EVAP Vacuum Leak Pump Assembly - AWD, includes EVAP Vent Solenoid |
| 4 | EVAP Vacuum Leak Pump Assembly - FWD, includes EVAP Vent Solenoid |
| 5 | Circuit Opening Relay - Fuel Pump Relay |
| 6 | Throttle Actuator Control (TAC) Motor - FWD |
| 7 | Idle Air Control (IAC) Valve - AWD |
| 8 | Camshaft Position (CMP) Actuator Solenoid |
| 9 | Fuel Injector |
| 10 | Ignition Coil |
