Torque Converter Assembly Installation

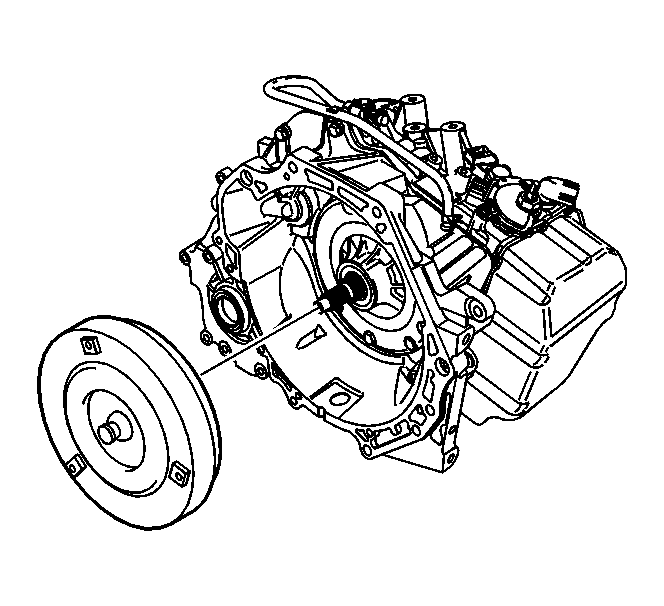

    Fig 1: View Of Torque Converter Assembly
    GM1419813Courtesy of GENERAL MOTORS CORP.
  1. Install the torque converter.

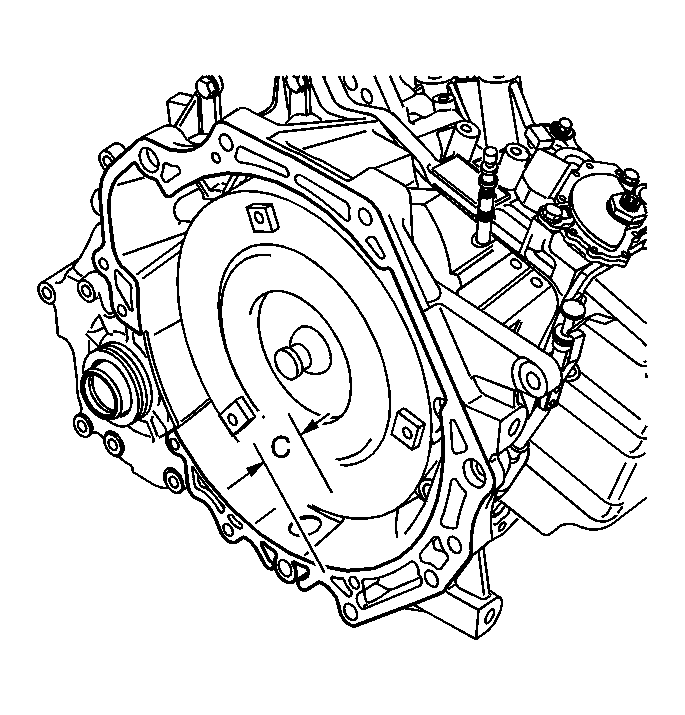

    2. Fig 2: Measuring Dimension C
    GM749824Courtesy of GENERAL MOTORS CORP.
  2. Measure dimension C.
  3. If dimension C is not within specifications, rotate the torque converter to index it to the pump.

    Installation Height:  Dimension C should be 12.5 mm (0.492 in).
