Output Gear Assembly Installation

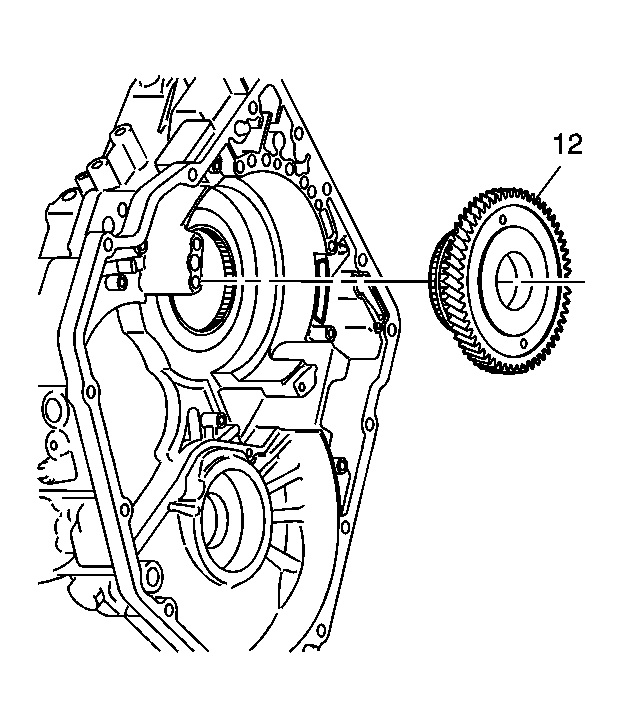

    Fig 1: View Of Output Gear Assembly
    GM749507Courtesy of GENERAL MOTORS CORP.
  1. Rotate the transmission case so that the I.D. tag is facing up.
  2. Install the output gear assembly (12) into the transmission case assembly.

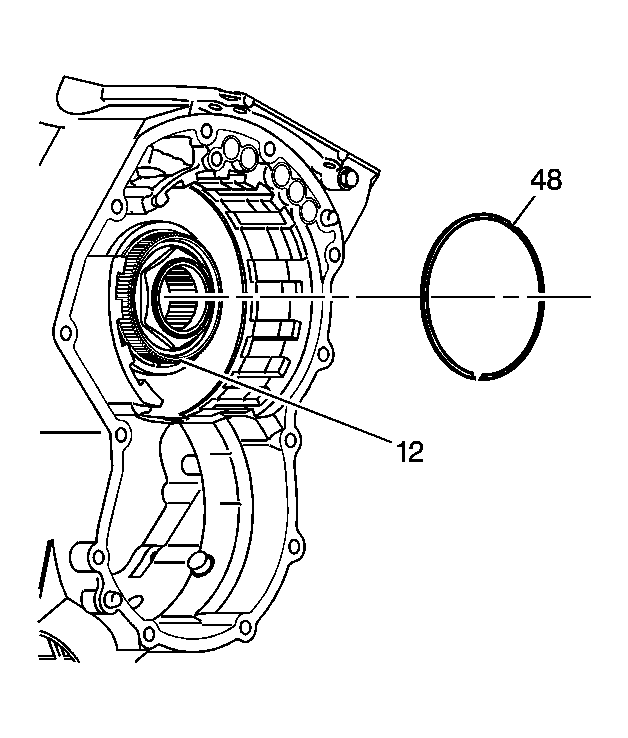

    3. Fig 2: View Of Output Gear Assembly & Retaining Ring
    GM749506Courtesy of GENERAL MOTORS CORP.
  3. Install the output gear retaining ring (48) into the output gear assembly (12) groove.
