Front Differential Assembly Removal

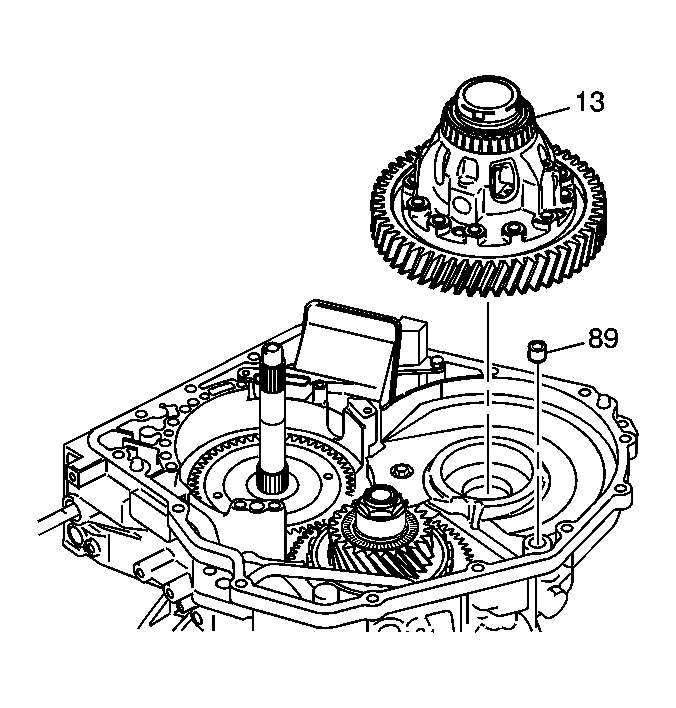

    Fig 1: View Of Front Differential Assembly & Case Fluid Passage Gasket
    GM894633Courtesy of GENERAL MOTORS CORP.
  1. Remove the front differential assembly (13).
  2. Remove the case fluid passage gasket (89).
