Drain Plug Installation

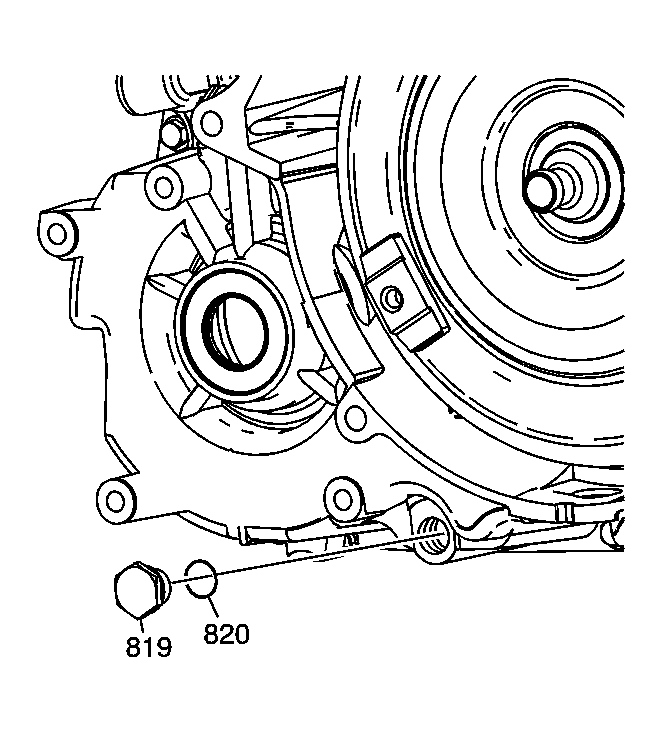

    Fig 1: View Of Transmission Drain Plug & Gasket
    GM749315Courtesy of GENERAL MOTORS CORP.
  1. Install a new gasket (820) on the drain plug (819).
    2. NOTE: Refer to Fastener Notice.
  2. Install the drain plug (819) into the case assembly (17).

    Tighten:  Tighten the drain plug to 39 N.m (29 lb ft).

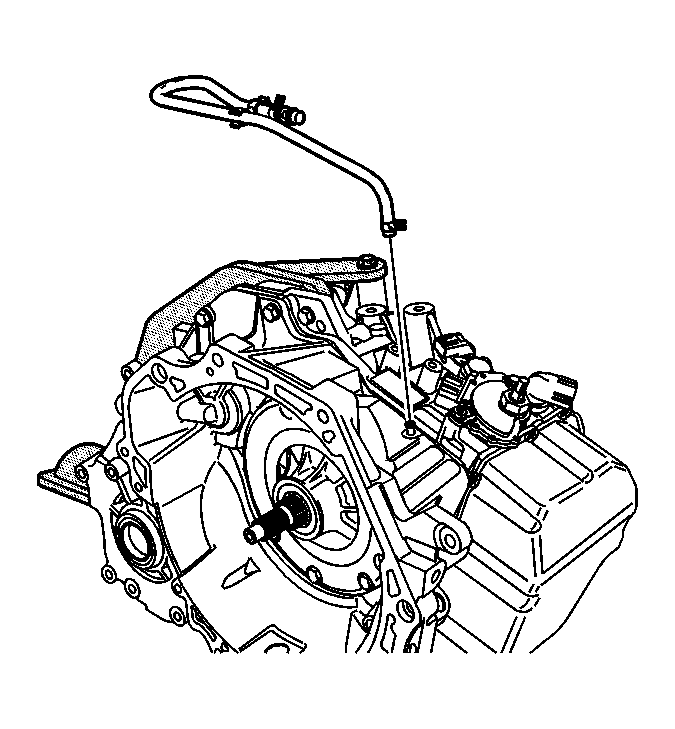

    3. Fig 2: View Of Vent Hose Assembly
    GM1419795Courtesy of GENERAL MOTORS CORP.
  3. Install the vent hose assembly.

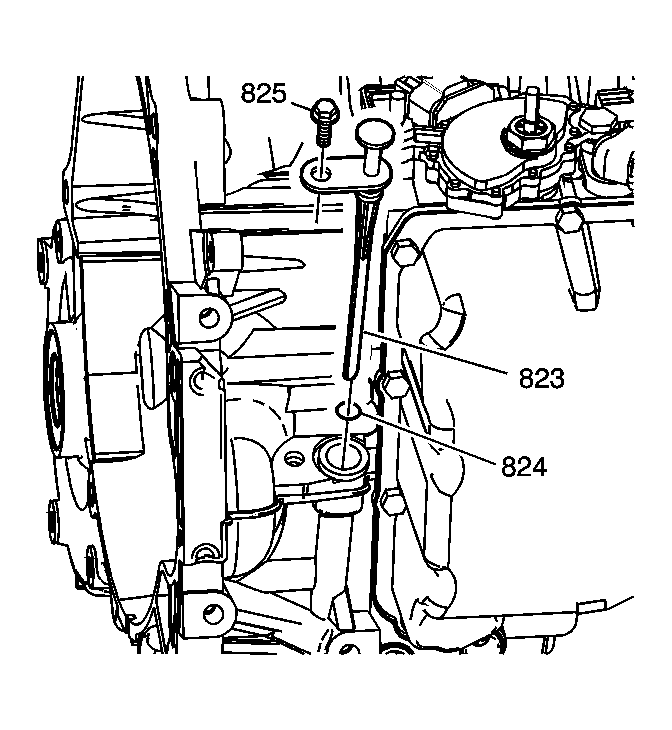

    4. Fig 3: View Of Transmission Oil Level Indicator, O-Ring & Bolt
    GM1419796Courtesy of GENERAL MOTORS CORP.
  4. Install a new o-ring (824) on the transmission fluid level indicator and lubricate with transmission fluid.
  5. Install the transmission fluid level indicator.
  6. Install the transmission fluid level indicator bolt.

    Tighten:  Tighten the indicator bolt to 10 N.m (89 lb in).
