Control Valve Body Assembly Removal

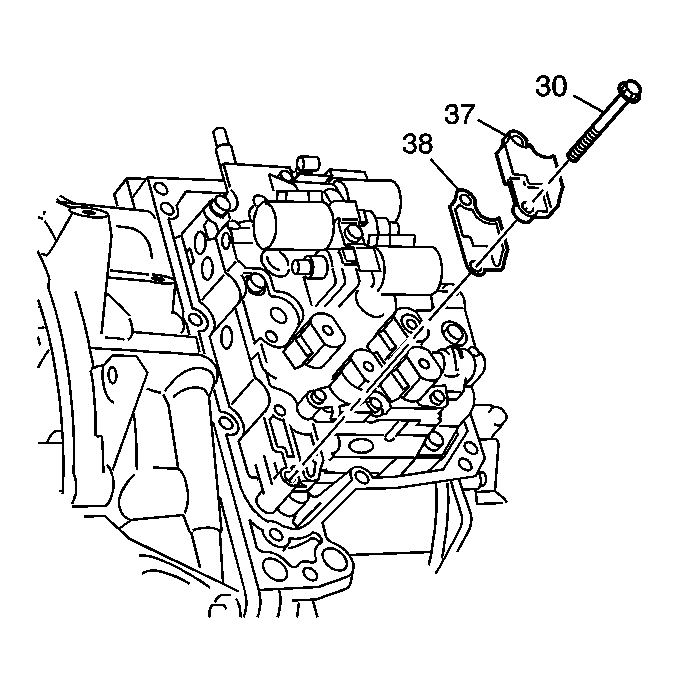

    Fig 1: View Of Control Valve Body Bolts/Screws, Fluid Passage Cover & Gasket
    GM1467992Courtesy of GENERAL MOTORS CORP.
  1. Place the transmission in Neutral (N).
  2. Remove the 2 control valve body bolts/screws (30), control valve body fluid passage cover (37) and gasket (38).

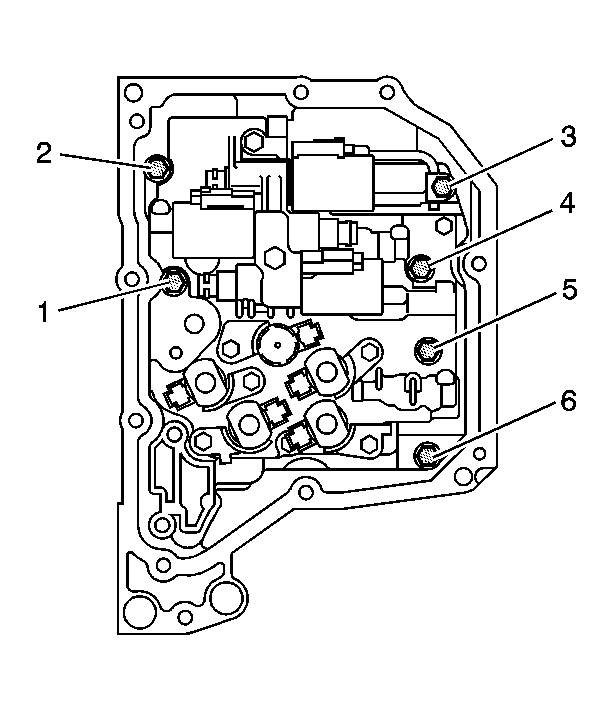

    3. Fig 2: Installing Valve Body Assembly-To-Transaxle Case Bolts
    GM773157Courtesy of GENERAL MOTORS CORP.
  3. Remove the six 10 mm control valve body mounting bolts/screws (1-6).
    4. Fig 3: View Of Valve Body Assembly
    GM749347Courtesy of GENERAL MOTORS CORP.
  4. While holding the control valve body assembly, disconnect the manual shift detent lever assembly (710) from the manual valve link (336).
  5. Move the detent lever assembly clockwise for ease of removing the manual valve.
  6. Remove the control valve body assembly (39).
    7. Fig 4: Identifying Case Fluid Passage Seals
    GM749350Courtesy of GENERAL MOTORS CORP.
  7. Remove the 2 case fluid passage seals (86).
