1-2-Reverse Carrier Gear Assembly Installation

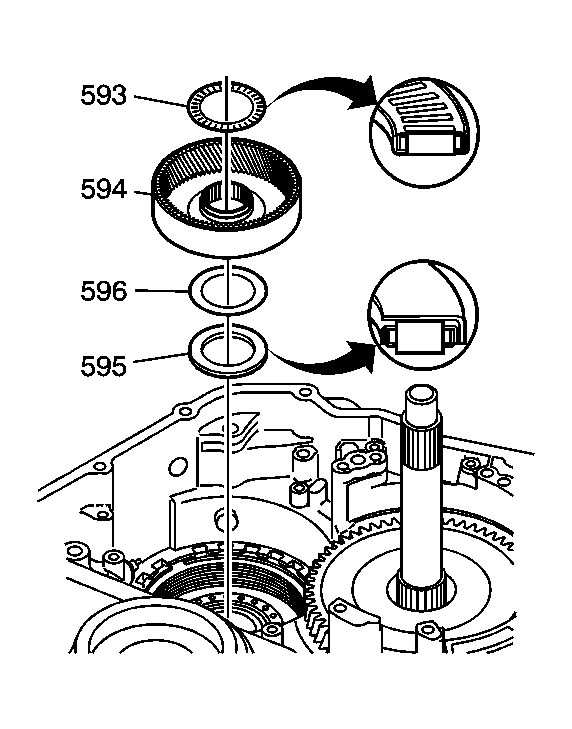

    Fig 1: View Of 1-2 Reverse Internal Gear, Front Thrust Bearing Assembly & Rear Thrust Bearing Assembly
    GM749472Courtesy of GENERAL MOTORS CORP.
  1. Rotate the transmission case assembly so that the torque converter housing side is facing up.
  2. Install the 1-2 reverse internal gear rear thrust bearing assembly (595) with the flat side up.
  3. Install the 1-2 reverse internal gear shim (596) without any markings. Correct shim selection is performed during the front differential transfer drive gear assembly installation.
  4. Install the 1-2 reverse internal gear (594).
  5. Install the 1-2 reverse internal gear front thrust bearing assembly (593) with the flange up.

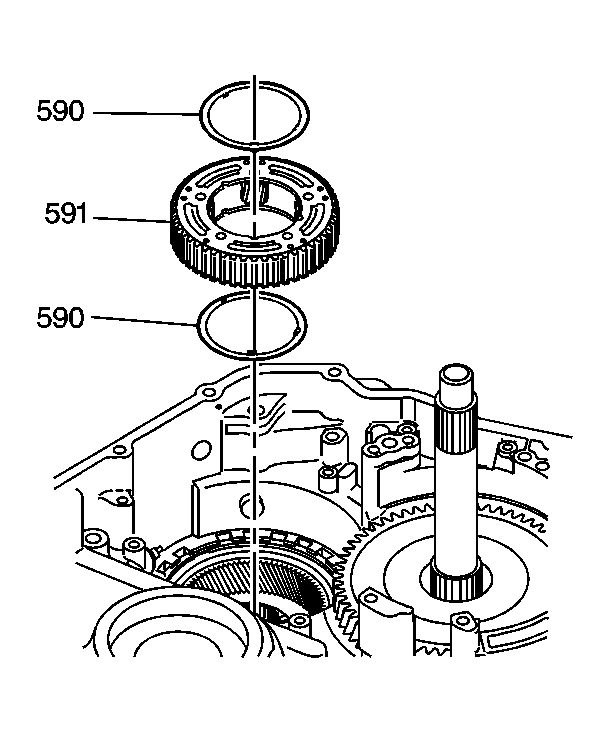

    6. Fig 2: View Of 1-2 Reverse Carrier Gear Assembly
    GM749470Courtesy of GENERAL MOTORS CORP.
  6. Install a 1-2 reverse carrier thrust washer (590) to the lower side of the 1-2 reverse carrier gear assembly (591).
  7. Install the 1-2 reverse carrier gear assembly (591) into the 1-2 reverse internal gear (594). The carrier assembly will be flush to the 1-2 reverse internal gear.
  8. Install the other 1-2 reverse carrier thrust washer (590) on top of the 1-2 reverse carrier gear assembly (591).
