Installation Procedure

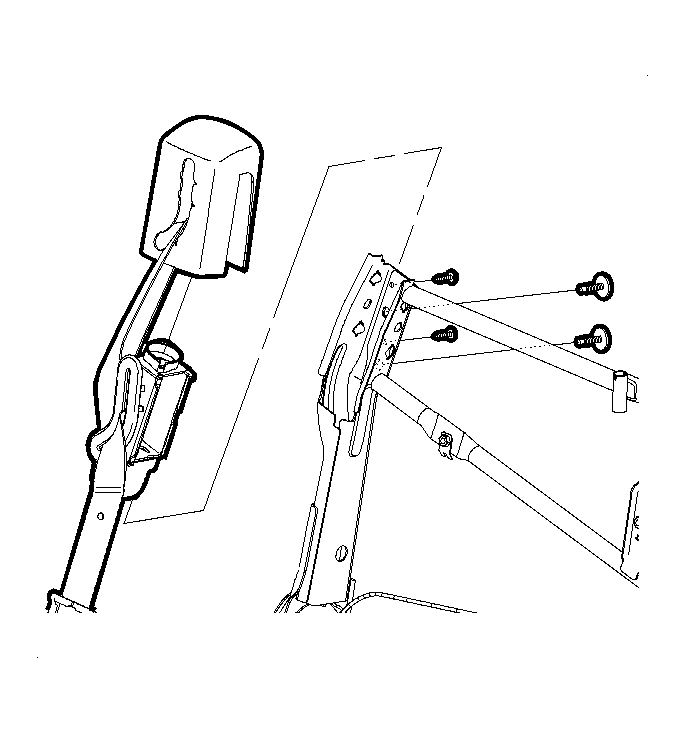

Fig 1: Retractor Cover & Fasteners

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

IMPORTANT: Apply Permatex® 24200 on all restraint fasteners prior to installation.

Position the retractor into the rear seat back frame and install the fasteners.
Tighten: Tighten the fasteners to 45 N.m (33 lb ft).
Position the retractor cover over the shoulder belt retractor and install the TORX® fasteners.
Tighten: Tighten the fasteners to 20 N.m (15 lb ft).

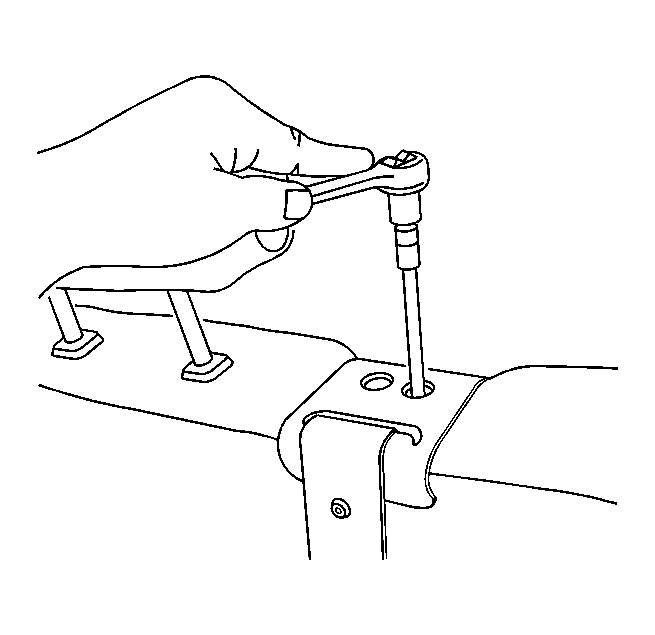

Fig 2: View Of Seat Belt Webbing Through Seat Back Trim Cover

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Verify that the shoulder belt is not twisted.

Route the webbing and the escutcheon through the seat back trim cover.
Continue to install the seat back trim cover by pressing over the hook and loop locations to ensure proper engagement.

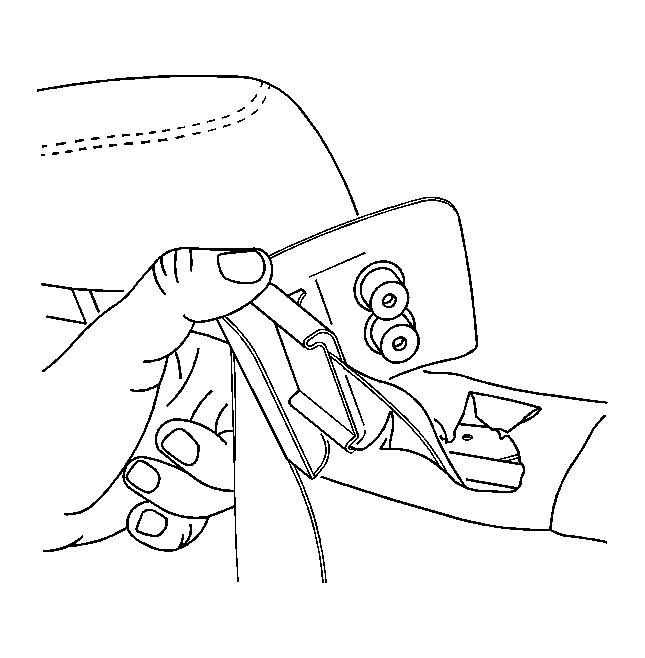

Fig 3: Removing/Installing Shoulder Belt Bezel

Courtesy of GENERAL MOTORS CORP.

Install the seat belt webbing bezel.
Tighten: Tighten the rear seat belt center bezel screws to 2.5 N.m (22 lb in).
Install the seat back cover. Refer to Seat Back Cover and Pad Replacement - Rear (Passenger Side, 40 Percent) or Seat Back Cover and Pad Replacement - Rear (Driver Side, 60 Percent) in Seats.
