Input Speed Sensor Removal

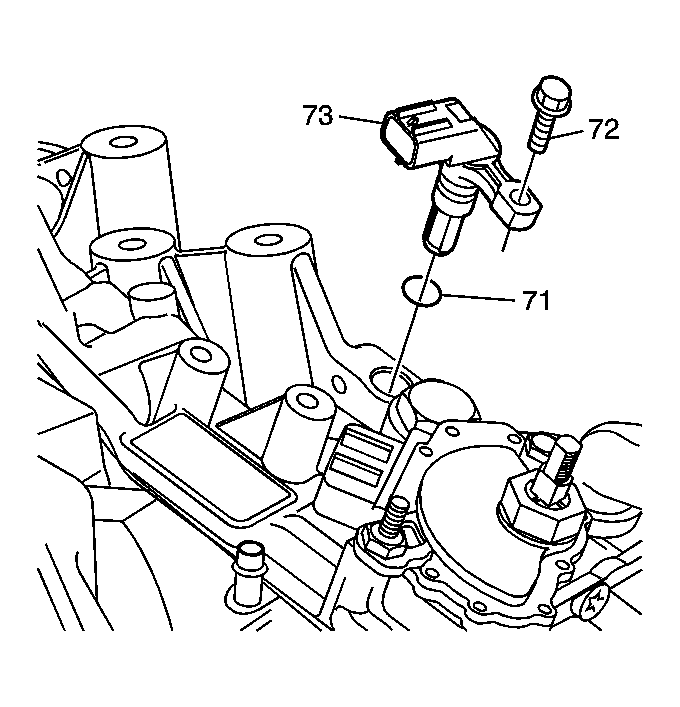

    Fig 1: View Of Input Shaft Speed Sensor
    GM749325Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not damage the input speed sensor or transaxle case.
  1. Remove the input speed sensor bolt (72).
  2. Remove the input speed sensor (73).
  3. Remove the input speed sensor O-ring (71).
