Installation Procedure

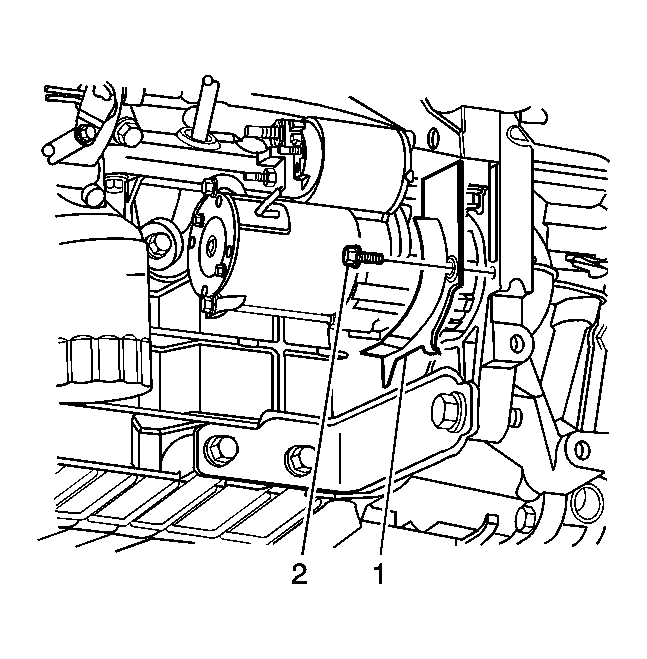

Fig 1: View Of Starter Motor & Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the starter motor bolts (2, 3).
Tighten: Tighten the starter motor bolts to 43 N.m (32 lb ft).

Fig 2: View Of Torque Converter Cover & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the torque converter cover (1).
Install the torque converter cover bolt (2).
Tighten: Tighten the bolt to 8 N.m (71 lb in).

Fig 3: View Of Starter Motor Solenoid Positive Terminal Nut, S Terminal Nut & Electrical Wires

Courtesy of GENERAL MOTORS CORP.

Install the starter motor solenoid S terminal electrical wire and nut.
Tighten: Tighten the solenoid S terminal nut to 3 N.m (27 lb in).
Install the starter motor solenoid positive terminal electrical wires and nut.
Tighten: Tighten the solenoid positive terminal nut to 10 N.m (89 lb in).
Lower the vehicle.
Install the battery negative cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
